Oil Pan/Oil Level Indicator (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Oil Pan/Oil Level Indicator (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1225745 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
1419374 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR023056 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
KYP500360 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
4540794 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR004356 STUD - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR094141 GASKET - OIL PAN Enquire To Order
Photo Part No Description Price (each) Stock
LR022900 DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
LR022757 TUBE - OIL PUMP INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR022759 PAN - ENGINE OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR022760 GASKET - SCAVENGER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR073675 PLUG - OIL DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR012640 SENSOR - OIL LEVEL Enquire To Order
Photo Part No Description Price (each) Stock
LR023017 COVER AND TUBE - SCAVENGE RESERVOIR Enquire To Order
Photo Part No Description Price (each) Stock
LR023016 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR031664 KIT - OIL TUBES Enquire To Order
LR034005 KIT - OIL TUBES Enquire To Order
Photo Part No Description Price (each) Stock
LR022801 TUBE - OIL Enquire To Order
LR043286 KIT - OIL TUBES Enquire To Order
View All

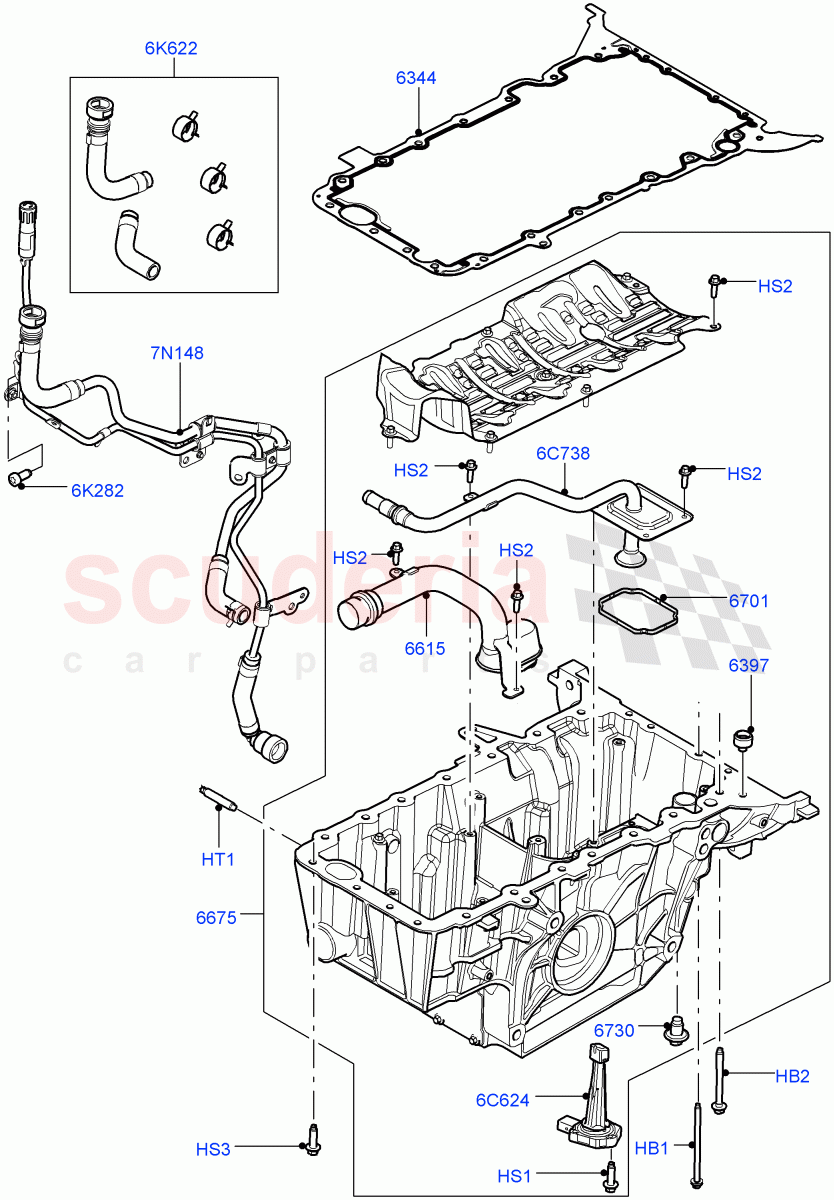

Oil Pan/Oil Level Indicator (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1225745
BOLT AND WASHER - HEX.HEAD
Bolt And Washer, M6 X 105MM / From: BA000001 		- 4 Enquire
HB2 1419374
BOLT
M8 X 75MM / From: BA000001 		- 1 Enquire
HS1 LR023056
SCREW
M6 x 30MM, Sensor - Oil Level / From: BA000001 		- 3 Enquire
HS2 KYP500360
SCREW
M6 X 20MM / From: BA000001 		- 19 Enquire
HS3 4540794
SCREW
M8 X 25MM, Oil Pan / From: BA000001 		- 14 Enquire
HT1 LR004356
STUD - SPECIAL
M8 X 17 + M8 X 21 / From: BA000001 		- 1 Enquire
6C624 LR012640
SENSOR - OIL LEVEL
From: BA000001 		- 1 Enquire
6C738 LR023017
COVER AND TUBE - SCAVENGE RESERVOIR
From: BA000001 		- 1 Enquire
6K282 LR023016
BOLT
M10 X 20MM / From: BA000001 		- 1 Enquire
6K622 LR031664
KIT - OIL TUBES
From: BA000001 / To: BA999999 		- 1 Enquire
6K622 LR034005
KIT - OIL TUBES
From: CA000001 		- 1 Enquire
7N148 LR022801
TUBE - OIL
Scavenger Pipe, Tube - Oil Extraction / From: BA000001 / To: CA393013 		- 1 Enquire
7N148 LR043286
KIT - OIL TUBES
Scavenger Pipe, Tube - Oil Extraction / From: CA393014 		- 1 Enquire
6344 LR094141
GASKET - OIL PAN
Oil Pan / From: BA000001 		- 1 Enquire
6397 LR022900
DOWEL
Oil Pan / From: BA000001 		- 2 Enquire
6615 LR022757
TUBE - OIL PUMP INLET
From: BA000001 		- 1 Enquire
6675 LR022759
PAN - ENGINE OIL
From: BA000001 		- 1 Enquire
6701 LR022760
GASKET - SCAVENGER PIPE
Cover Scavenge Reservoir / From: BA000001 		- 1 Enquire
6730 LR073675
PLUG - OIL DRAIN
Head Size: 13mm, Includes Seal, M14 X 1.5 / From: BA334378 		- 1 Enquire
