Air Cleaner (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Air Cleaner (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR023233 CLAMP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR023238 CLAMP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR023503 CLAMP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR033009 CLAMP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
PJQ500012 MOUNTING - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR161843 FILTER - AIR CLEANER Enquire To Order
Photo Part No Description Price (each) Stock
LR033008 CONNECTOR - INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR022812 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR022813 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR029074 SENSOR - MASS AIR FLOW Enquire To Order
Photo Part No Description Price (each) Stock
LR023146 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR011978 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR022874 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR022875 HOSE Enquire To Order
LR033010 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR022876 HOSE Enquire To Order
LR030209 DUCT - AIR INTAKE Enquire To Order
Photo Part No Description Price (each) Stock
LR022877 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR022878 HOSE Enquire To Order
View All

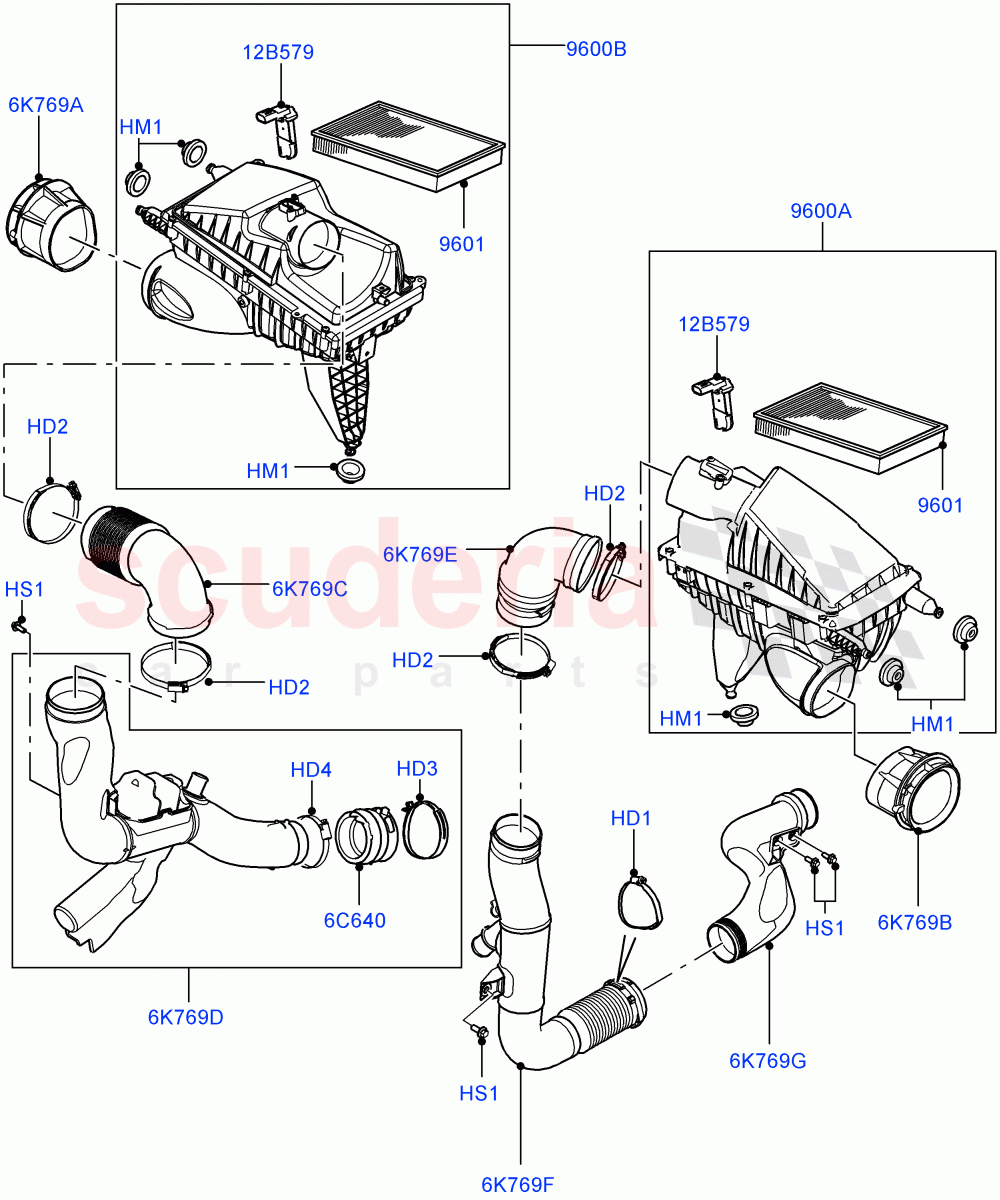

Air Cleaner (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HD1 LR023233
CLAMP - HOSE
LH Lower / From: BA000001 		- 1 Enquire
HD2 LR023238
CLAMP - HOSE 		- 4 Enquire
HD3 LR023503
CLAMP - HOSE
70MM / From: BA000001 		- 1 Enquire
HD4 LR033009
CLAMP - HOSE
60/80MM / From: BA000001 		- 1 Enquire
HM1 PJQ500012
MOUNTING - RUBBER
Mounting Rubber / From: BA000001 		- 6 Enquire
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: BA000001 		- 4 Enquire
6C640 LR033008
CONNECTOR - INLET
Turbocharger / From: BA000001 		- 1 Enquire
6K769A LR023146
DUCT - AIR
RH, Air Cleaner Intake Tube / From: BA000001 		- 1 Enquire
6K769B LR011978
DUCT - AIR
LH, Air Cleaner Intake Tube / From: BA000001 		- 1 Enquire
6K769C LR022874
HOSE
RH, Air Cleaner To Turbocharger, Elbow Connector, Upper / From: BA000001 		- 1 Enquire
6K769D LR022875
HOSE
RH, Air Cleaner To Turbocharger, Lower / From: BA000001 / To: CA393569 		- 1 Enquire
6K769D LR033010
HOSE
RH, Air Cleaner To Turbocharger, Lower / From: CA393570 		- 1 Enquire
6K769E LR022876
HOSE
LH, Air Cleaner To Turbocharger, Elbow Connector, Upper / From: BA000001 / To: BA353612 		- 1 Enquire
6K769E LR030209
DUCT - AIR INTAKE
LH, Air Cleaner To Turbocharger, Elbow Connector, Upper / From: BA353613 		- 1 Enquire
6K769F LR022877
HOSE
LH, Air Cleaner To Turbocharger / From: BA000001 		- 1 Enquire
6K769G LR022878
HOSE
LH, Turbocharger Inlet / From: BA000001 		- 1 Enquire
12B579 LR029074
SENSOR - MASS AIR FLOW
From: BA000001 		- 2 Enquire
9600A LR022812
CLEANER - AIR
LH / From: BA000001 		- 1 Enquire
9600B LR022813
CLEANER - AIR
RH / From: BA000001 		- 1 Enquire
9601 LR161843
FILTER - AIR CLEANER
From: BA000001 		- 2 Enquire
