Name: Front Seat Back ((V) FROMAA000001)
Rating: 4.7 (1 reviews)

Front Seat Back ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

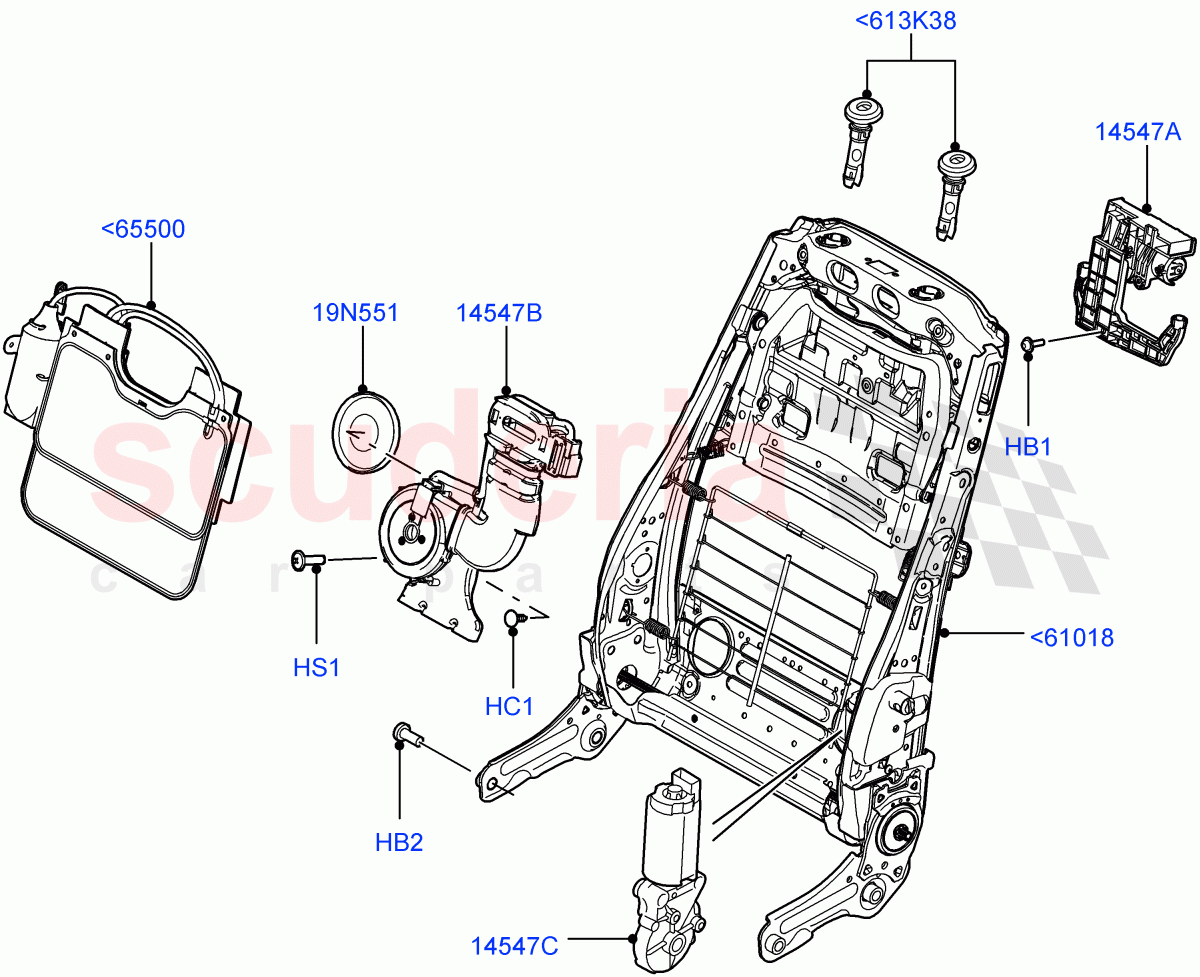

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Front Seat Back ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	HYG500360	BOLT	$2.20	To Order

Photo	Part No	Description	Price (each)	Stock
	HYG500370	BOLT	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	HZM500040	CLIP - TRIM	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	HYP500320	SCREW	$1.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	HFA501360	FRAME - SEAT	$1,061.25	To Order
	HFA501380	FRAME - SEAT	$435.21	To Order
	HFA501370	FRAME - SEAT	$595.97	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HHC500150	SUPPORT - SEAT ADJUSTER	$259.56	To Order

Photo	Part No	Description	Price (each)	Stock
	HJJ500030	MOTOR - HEADREST	$336.87	To Order
	HJJ500040	MOTOR - HEADREST	$325.13	To Order

Photo	Part No	Description	Price (each)	Stock
	HHK500060	MOTOR - SEAT ADJUSTER	$524.45	To Order

Photo	Part No	Description	Price (each)	Stock
	HHL500220	MOTOR - SEAT ADJUSTER	$446.45	To Order
	HHL500190	MOTOR - SEAT ADJUSTER	$500.49	To Order

Photo	Part No	Description	Price (each)	Stock
	HAK500140	SEAT - FILTER ELEMENT	$36.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010988	SLEEVE - GUIDE	$29.86	To Order
	HJQ500160JMN	SLEEVE - HEADREST GUIDE	$29.86	To Order
	HJQ500160LER	SLEEVE - HEADREST GUIDE	$29.86	To Order

...and 13 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<613K38	LR010988	SLEEVE - GUIDE	LR010988 SLEEVE - GUIDE Arabica/Ivory, Semi Aniline Leather Perf / Locking / From: AA000001 / To: AA326570	$29.86	4
<613K38	HJQ500160JMN	SLEEVE - HEADREST GUIDE	HJQ500160JMN SLEEVE - HEADREST GUIDE Navy/Parchment Interior, Oxford Leather Windsor / Locking / From: AA000001 / To: AA326570	$29.86	4
<613K38	HJQ500160LER	SLEEVE - HEADREST GUIDE	HJQ500160LER SLEEVE - HEADREST GUIDE Semi Aniline Leather Perf, Storm / Locking / From: AA000001 / To: AA326570	$29.86	4
<613K38	HJQ500160NUG	SLEEVE - HEADREST GUIDE	HJQ500160NUG SLEEVE - HEADREST GUIDE Navy/Ivory, Oxford Leather Windsor / Locking / From: AA000001	$29.86	4
<613K38	HJQ500160PUY	SLEEVE - HEADREST GUIDE	HJQ500160PUY SLEEVE - HEADREST GUIDE Standard Leather Blenheim / Locking / From: AA000001	$29.86	2
<613K38	HJQ500160PUY	SLEEVE - HEADREST GUIDE	HJQ500160PUY SLEEVE - HEADREST GUIDE Ivory/Jet/Jet, Oxford Leather Windsor / Locking / From: AA000001	$29.86	4
<613K38	HJQ500160SUN	SLEEVE - HEADREST GUIDE	HJQ500160SUN SLEEVE - HEADREST GUIDE Sand/Jet Interior, Semi Aniline Leather Perf / Locking / From: AA000001 / To: AA326570	$29.86	4
<613K38	HJQ500160VAE	SLEEVE - HEADREST GUIDE	HJQ500160VAE SLEEVE - HEADREST GUIDE Navy/Parch/Parch, Semi Aniline Leather Perf / Locking / From: AA000001	$38.98	4
<613K38	HJQ500170PUY	SLEEVE - HEADREST GUIDE	HJQ500170PUY SLEEVE - HEADREST GUIDE Standard Leather Blenheim / Non Locking / From: AA000001	$12.02	2
<613K38	LR021933	SLEEVE - GUIDE	LR021933 SLEEVE - GUIDE Jet/Ivory / Non Locking / From: AA313069	$12.21	4
<613K38	LR021934	SLEEVE - GUIDE	LR021934 SLEEVE - GUIDE Parchment/Dark Saddle / Non Locking / From: AA313069	$12.21	4
<613K38	LR023927	SLEEVE - HEADREST GUIDE	LR023927 SLEEVE - HEADREST GUIDE Arabica/Ivory/Ivory, Semi Aniline Leather Perf / Non Locking / From: AA326571	$13.32	4
<613K38	LR023928	SLEEVE - HEADREST GUIDE	LR023928 SLEEVE - HEADREST GUIDE Navy/Parch/Parch, Oxford Leather Windsor / Non Locking / From: AA326571	$16.25	4
<613K38	LR023929	SLEEVE - HEADREST GUIDE	LR023929 SLEEVE - HEADREST GUIDE Standard Leather Blenheim, Storm/Jet/Jet / Non Locking / From: AA326571	$13.32	4
<613K38	LR023930	SLEEVE - HEADREST GUIDE	LR023930 SLEEVE - HEADREST GUIDE Oxford Leather Windsor, Sand/Jet Interior / Non Locking / From: AA326571	$13.32	4
<613K38	LR028674	SLEEVE - HEADREST GUIDE	LR028674 SLEEVE - HEADREST GUIDE Jet/Ivory Interior, Standard Leather Blenheim / Non Locking / From: AA326561	$14.61	4
<61018	HFA501360	FRAME - SEAT	HFA501360 FRAME - SEAT RH, For Passenger Front Seat / From: AA000001	$1,061.25	1
<61018	HFA501380	FRAME - SEAT	HFA501380 FRAME - SEAT RH, Driver Frt Seat / From: AA000001	$435.21	1
<61018	HFA501370	FRAME - SEAT	HFA501370 FRAME - SEAT LH, For Passenger Front Seat / From: AA000001	$595.97	1
<61018	HFA501390	FRAME - SEAT	HFA501390 FRAME - SEAT LH, Driver Frt Seat / From: AA000001	$919.06	1
<65500	HHC500150	SUPPORT - SEAT ADJUSTER	HHC500150 SUPPORT - SEAT ADJUSTER From: AA000001	$259.56	2
HB1	HYG500360	BOLT	HYG500360 BOLT M5 x 14MM, With Adjustable Headrest / From: AA000001	$2.20	2
HB2	HYG500370	BOLT	HYG500370 BOLT M10 x 27MM / From: AA000001	$1.70	8
HC1	HZM500040	CLIP - TRIM	HZM500040 CLIP - TRIM Heated/Cooled Front/Rear Seat / Blower Motor / From: AA000001	$1.16	2
HS1	HYP500320	SCREW IN STOCK	HYP500320 SCREW Heated/Cooled Front/Rear Seat / M4 x 12MM / From: AA000001 IN STOCK	$1.18	1
19N551	HAK500140	SEAT - FILTER ELEMENT	HAK500140 SEAT - FILTER ELEMENT With Heated/Cooled Front Seats Only / From: AA000001	$36.08	2
14547A	HJJ500030	MOTOR - HEADREST	HJJ500030 MOTOR - HEADREST Electric Front Seat Adj Drv Memory, With Driver 10 Way Pwr Seat Adjust / Headrest / From: AA000001	$336.87	1
14547A	HJJ500040	MOTOR - HEADREST	HJJ500040 MOTOR - HEADREST Electric Front Seat Adj Drv Memory, With Driver 10 Way Pwr Seat Adjust / Headrest / From: AA000001	$325.13	1
14547B	HHK500060	MOTOR - SEAT ADJUSTER	HHK500060 MOTOR - SEAT ADJUSTER Heated/Cooled Front/Rear Seat / From: AA000001	$524.45	2
14547C	HHL500220	MOTOR - SEAT ADJUSTER	HHL500220 MOTOR - SEAT ADJUSTER Motor - Seat Recline, With Fixing Parts, With Memory / From: AA000001	$446.45	1
14547C	HHL500190	MOTOR - SEAT ADJUSTER	HHL500190 MOTOR - SEAT ADJUSTER Less Memory, Motor - Seat Recline, With Fixing Parts / From: AA000001	$500.49	1
