Find Your Part

View All

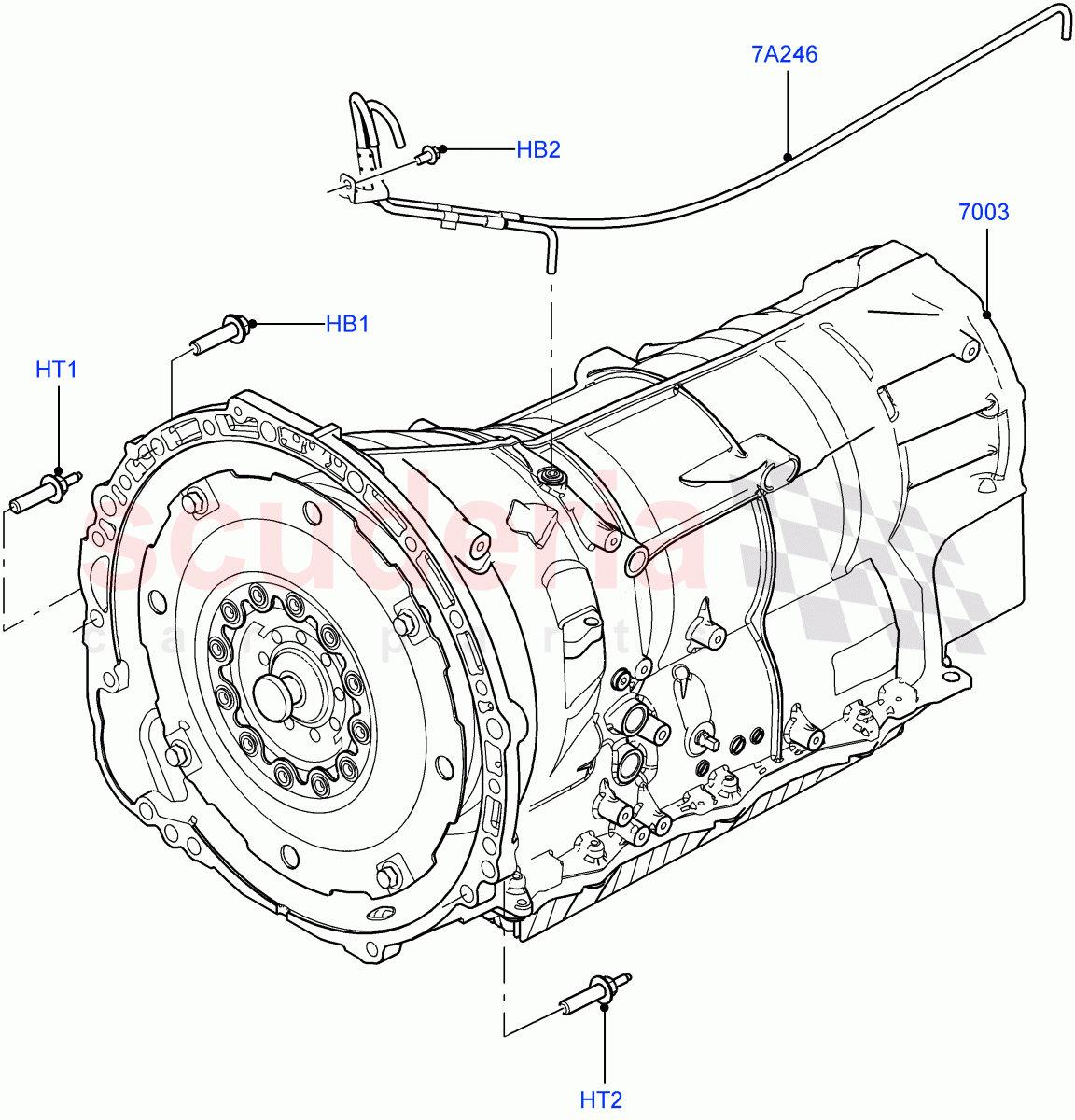

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB110086	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017279	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYG500102	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023055	TUBE - TRANSMISSION VENTILATION	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FB110086	BOLT - HEX.HEAD	FB110086 BOLT - HEX.HEAD M10 x 40MM / From: BA000001	-	10	Enquire
HB2	FS106126	BOLT	FS106126 BOLT Hexagonal Head, M6 x 12MM / From: BA000001	-	1	Enquire
HT1	LR017279	STUD	LR017279 STUD M10 x 75MM, M6 X 16MM / From: BA000001	-	1	Enquire
HT2	TYG500102	STUD	TYG500102 STUD M6 X 16MM + M10 X 38MM, Stud / From: BA000001	-	4	Enquire
7A246	LR023055	TUBE - TRANSMISSION VENTILATION	LR023055 TUBE - TRANSMISSION VENTILATION Gearbox, Includes Bracket, Transfer Box / From: BA000001	-	1	Enquire
7003	LR023210	TRANSMISSION - NEW	LR023210 TRANSMISSION - NEW Includes Converter, New Part-Please Check For Reman Version / From: BA000001 / To: BA347154	-	1	Enquire
7003	LR036576	AUTOMATIC TRANSMISSION	LR036576 AUTOMATIC TRANSMISSION 4.4L DOHC DITC V8 Diesel / Includes Converter, New Part-Please Check For Reman Version / From: BA347155	-	1	Enquire
7003	LR037016	TRANSMISSION - EXCHANGE	LR037016 TRANSMISSION - EXCHANGE 4.4L DOHC DITC V8 Diesel / (-) Australia, (-) India, For UK and ROW markets except USA, Russia, China, Brazil, Includes Converter, Remanufactured Part / From: BA347155	-	1	Enquire
