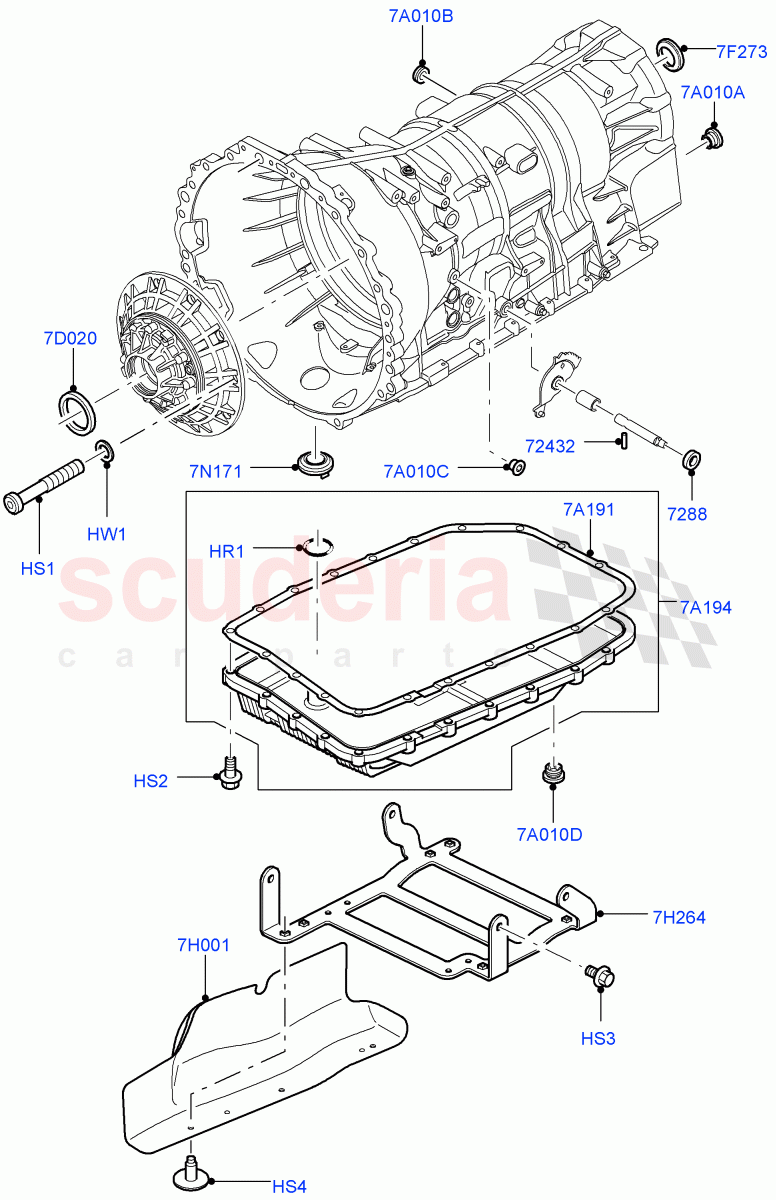

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	TYX500010	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYP500070	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYP500050	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500260	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SDG500020	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYF500030	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TZB500020	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYT500010	PIN - FASTENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TGK500010	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007474	PAN - TRANSMISSION OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TZB500030	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TZB500010	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KRO500420	HEAT SHIELD	Enquire	To Order
	LR018355	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TGU500050	BRACKET - OIL HOSES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008866	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007608	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007610	PLUG - OIL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007607	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYB500020	PLUG - OIL DRAIN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	TYX500010	O-RING	TYX500010 O-RING 5.0L OHC SGDI NA V8 Petrol - AJ133 / Oil Pump / From: AA000001	-	1	Enquire
HS1	TYP500070	SCREW	TYP500070 SCREW Housing, Oil Pump, M6 x 50MM, To Transmission / From: AA000001	-	13	Enquire
HS2	TYP500050	SCREW	TYP500050 SCREW 5.0L OHC SGDI NA V8 Petrol - AJ133 / M6 X 31.5MM, Oil Pan, To Transmission, Torx / From: AA000001	-	21	Enquire
HS3	KYP500260	SCREW	KYP500260 SCREW 5.0L OHC SGDI NA V8 Petrol - AJ133 / Bracket, HEX Flange, M6 X 14MM, To Transmission / From: AA000001	-	4	Enquire
HS4	SDG500020	SCREW	SDG500020 SCREW 5.0L OHC SGDI NA V8 Petrol - AJ133 / Heat Shield, M6 x 12MM, To Transmission / From: AA000001	-	3	Enquire
HW1	TYF500030	WASHER	TYF500030 WASHER M6 / From: AA000001	-	-	Enquire
7A010A	LR007608	PLUG - OIL DRAIN	LR007608 PLUG - OIL DRAIN 5.0L OHC SGDI NA V8 Petrol - AJ133 / M12 X 1.5MM, Park, Pawl, Rear / From: AA000001	-	1	Enquire
7A010B	LR007610	PLUG - OIL FILLER	LR007610 PLUG - OIL FILLER 5.0L OHC SGDI NA V8 Petrol - AJ133 / FILLER, M18 X 1.5MM, Warning Oil Level Check / From: AA000001	-	1	Enquire
7A010C	LR007607	PLUG - OIL DRAIN	LR007607 PLUG - OIL DRAIN 5.0L OHC SGDI NA V8 Petrol - AJ133 / M10 x 1.0, Screw / From: AA000001	-	1	Enquire
7A010D	TYB500020	PLUG - OIL DRAIN	TYB500020 PLUG - OIL DRAIN 5.0L OHC SGDI NA V8 Petrol - AJ133 / Drain / From: AA000001	-	1	Enquire
7A191	TGK500010	GASKET	TGK500010 GASKET 5.0L OHC SGDI NA V8 Petrol - AJ133 / Oil Pan / From: AA000001	-	1	Enquire
7A194	LR007474	PAN - TRANSMISSION OIL	LR007474 PAN - TRANSMISSION OIL 5.0L OHC SGDI NA V8 Petrol - AJ133 / Includes Oil Filter / From: AA000001	-	1	Enquire
7D020	TZB500030	SEAL	TZB500030 SEAL 5.0L OHC SGDI NA V8 Petrol - AJ133 / Oil Pump / From: AA000001	-	1	Enquire
7F273	TZB500010	SEAL	TZB500010 SEAL 5.0L OHC SGDI NA V8 Petrol - AJ133 / Output Shaft, Rear / From: AA000001	-	1	Enquire
7H001	KRO500420	HEAT SHIELD	KRO500420 HEAT SHIELD 5.0L OHC SGDI NA V8 Petrol - AJ133 / Oil Pan / From: AA000001 / To: AA307576	-	1	Enquire
7H001	LR018355	HEAT SHIELD	LR018355 HEAT SHIELD 5.0L OHC SGDI SC V8 Petrol - AJ133 / Oil Pan / From: AA307577	-	1	Enquire
7H264	TGU500050	BRACKET - OIL HOSES	TGU500050 BRACKET - OIL HOSES 5.0L OHC SGDI NA V8 Petrol - AJ133 / Oil Pan / From: AA000001	-	1	Enquire
7N171	LR008866	GROMMET	LR008866 GROMMET 5.0L OHC SGDI SC V8 Petrol - AJ133 / Converter Drain Access / From: AA000001	-	1	Enquire
7288	TZB500020	SEAL	TZB500020 SEAL 5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Transmission / From: AA000001	-	1	Enquire
72432	TYT500010	PIN - FASTENING	TYT500010 PIN - FASTENING 5.0L OHC SGDI NA V8 Petrol - AJ133 / From: AA000001	-	1	Enquire
