Gear Change-Automatic Transmission (Floor) (3.6L V8 32V DOHC EFi Diesel Lion, 6 Speed Auto ZF 6HP26 Steptronic) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Gear Change-Automatic Transmission (Floor) (3.6L V8 32V DOHC EFi Diesel Lion, 6 Speed Auto ZF 6HP26...

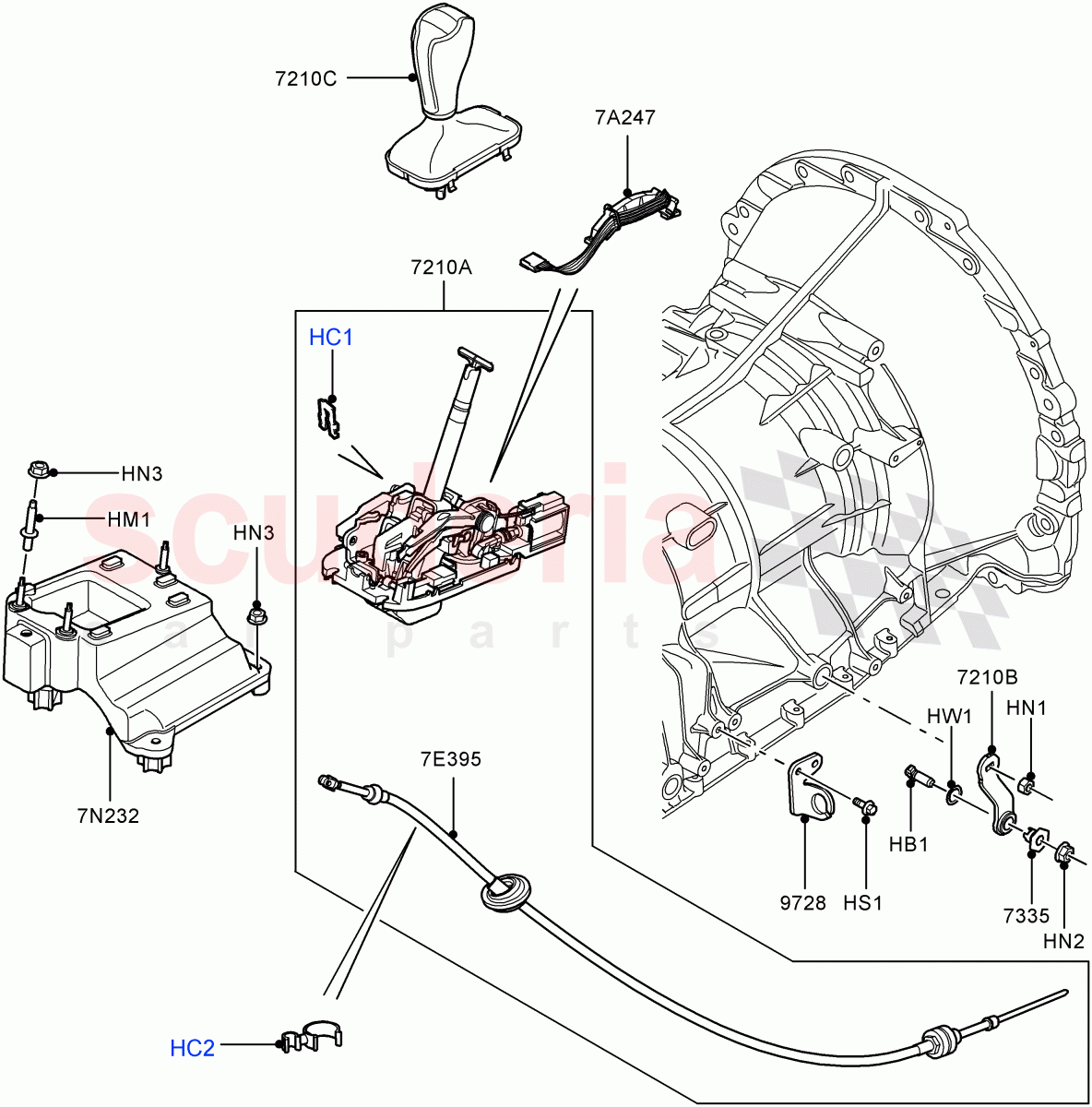

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	TYG000050	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UYC000010	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009660	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UYR500010	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYH500020	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106041	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYF000060	WASHER - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TZT500040	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UCU500040	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010764	LEVER - GEAR SHIFT	Enquire	To Order
	LR031501	LEVER - GEAR SHIFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012703	LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011405	LEVER - TRANSMISSION GEAR SHIFT	Enquire	To Order
	LR011407	LEVER - TRANSMISSION GEAR SHIFT	Enquire	To Order
	LR011408	LEVER - TRANSMISSION GEAR SHIFT	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	TJK000020	SWITCH - TRANSMISSION SELECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UCV500100	CABLE - SELECTOR LEVER CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UFN500100	STUD	Enquire	To Order
	UFN500110	PLINTH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	TYG000050	BOLT	TYG000050 BOLT M8 X 22MM / From: AA000001	-	1	Enquire
HC1	UYC000010	CLIP	UYC000010 CLIP Cable Assy / From: AA000001	-	1	Enquire
HC2	LR009660	CLIP	LR009660 CLIP LHD, Premium Air Conditioning-Front/Rear / Double / From: BA336415	-	1	Enquire
HM1	UYR500010	STUD	UYR500010 STUD M6X16, M6X23.0, Stud / From: AA000001	-	1	Enquire
HN1	VYH500020	NUT - HEX.	VYH500020 NUT - HEX. M8 x 1.0MM / From: AA000001	-	1	Enquire
HN2	FN108046	NUT - HEX.	FN108046 NUT - HEX. HEX Flange, Hexagonal Head, M8 / From: AA000001	-	1	Enquire
HN3	FN106041	Nut	FN106041 Nut HEX Flange, M6 / From: AA000001	-	3	Enquire
HS1	FS106166	SCREW	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: AA000001	-	2	Enquire
HW1	TYF000060	WASHER - SPRING	TYF000060 WASHER - SPRING 8MM, WASHERS / From: AA000001	-	1	Enquire
7A247	TJK000020	SWITCH - TRANSMISSION SELECTOR	TJK000020 SWITCH - TRANSMISSION SELECTOR Electronic Auto Transmission / From: AA000001	-	1	Enquire
7E395	UCV500100	CABLE - SELECTOR LEVER CONTROL	UCV500100 CABLE - SELECTOR LEVER CONTROL Transmission Selector / From: AA000001	-	1	Enquire
7N232	UFN500100	STUD	UFN500100 STUD RHD / From: AA000001	-	1	Enquire
7N232	UFN500110	PLINTH	UFN500110 PLINTH LHD / From: AA000001	-	1	Enquire
7210A	LR010764	LEVER - GEAR SHIFT	LR010764 LEVER - GEAR SHIFT From: AA000001 / To: BA349834	-	1	Enquire
7210A	LR031501	LEVER - GEAR SHIFT	LR031501 LEVER - GEAR SHIFT From: BA349835	-	1	Enquire
7210B	LR012703	LEVER	LR012703 LEVER From: AA000001	-	1	Enquire
7210C	LR011405	LEVER - TRANSMISSION GEAR SHIFT	LR011405 LEVER - TRANSMISSION GEAR SHIFT Cherry Wood, Leather Gear Knob With Wood Inlay / From: AA000001	-	1	Enquire
7210C	LR011407	LEVER - TRANSMISSION GEAR SHIFT	LR011407 LEVER - TRANSMISSION GEAR SHIFT Extended Burr Wood Trim, Leather Gear Knob With Wood Inlay / From: AA000001	-	1	Enquire
7210C	LR011408	LEVER - TRANSMISSION GEAR SHIFT	LR011408 LEVER - TRANSMISSION GEAR SHIFT Grand Black Lacquer Extd Wood Kit, Leather Gear Knob With Wood Inlay / From: AA000001	-	1	Enquire
7210C	LR014289	LEVER - GEAR SHIFT	LR014289 LEVER - GEAR SHIFT Metallic Gear Shift Knob / Leather With Metal Inserts / From: AA000001 / To: AA315869	-	1	Enquire
7210C	LR016995	LEVER - TRANSMISSION GEAR SHIFT	LR016995 LEVER - TRANSMISSION GEAR SHIFT Ash Burl Blonde Ext Wood Kit, Leather Gear Knob With Wood Inlay / From: AA000001	-	1	Enquire
7210C	LR016996	LEVER - TRANSMISSION GEAR SHIFT	LR016996 LEVER - TRANSMISSION GEAR SHIFT Leather Gear Knob With Wood Inlay, Prussn Blue Burr Maple Ext Wood Kit / From: AA000001	-	1	Enquire
7210C	LR016997	LEVER - TRANSMISSION GEAR SHIFT	LR016997 LEVER - TRANSMISSION GEAR SHIFT Anthracite Lined Oak Extd Wood Kit, Leather Gear Knob With Wood Inlay / From: AA000001	-	1	Enquire
7210C	LR020996	LEVER - GEAR SHIFT	LR020996 LEVER - GEAR SHIFT Metallic Gear Shift Knob / Leather With Metal Inserts / From: AA315870	-	1	Enquire
7335	TZT500040	BUSH	TZT500040 BUSH From: AA000001	-	1	Enquire
9728	UCU500040	BRACKET	UCU500040 BRACKET Selector Cable Abutment / From: AA000001	-	1	Enquire
