Name: Exhaust System (Front) (3.6L V8 32V DOHC EFi Diesel Lion, Euro Stage 4 Emissions) ((V) FROMAA000001)
Rating: 4.4 (1 reviews)

Exhaust System (Front) (3.6L V8 32V DOHC EFi Diesel Lion, Euro Stage 4 Emissions) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Exhaust System (Front) (3.6L V8 32V DOHC EFi Diesel Lion, Euro Stage 4 Emissions) ((V) FROMAA000001)

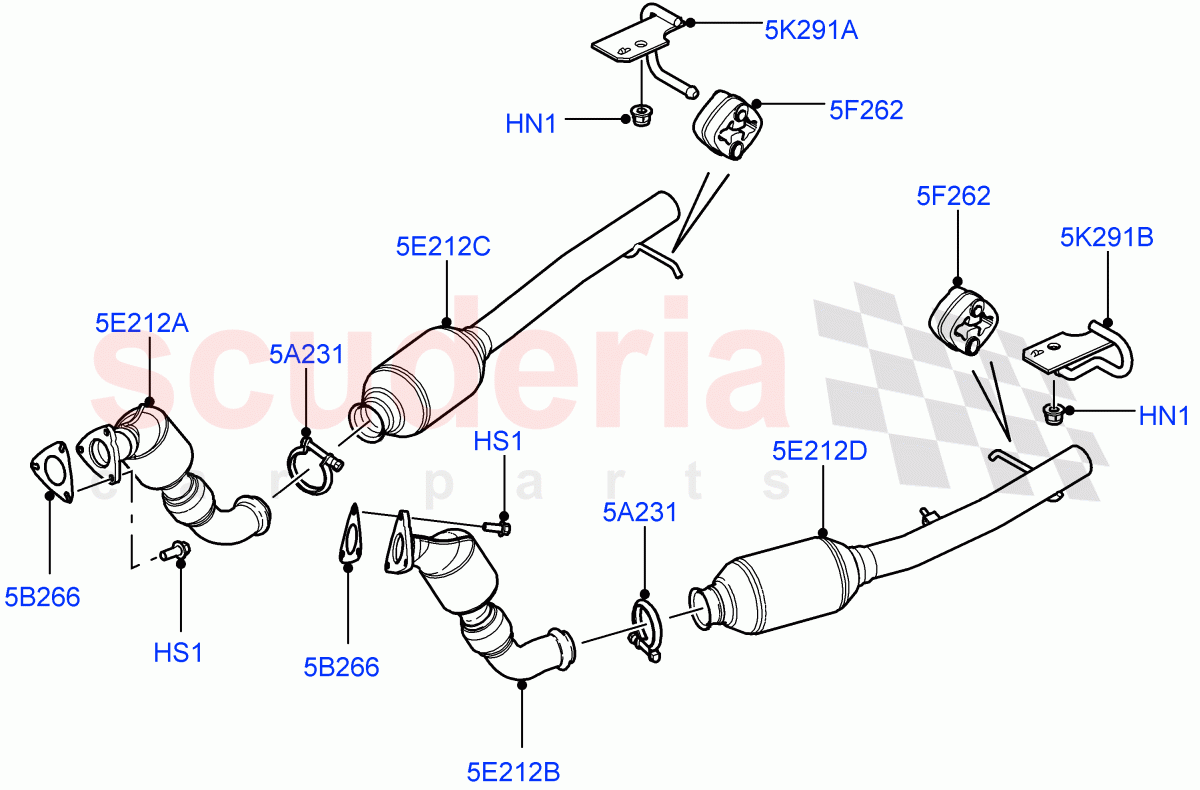

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	ERR4245	NUT - HEX.	$4.90	To Order

Photo	Part No	Description	Price (each)	Stock
	WYP000025	SCREW	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019732	CLAMP - EXHAUST	$27.70	IN STOCK
	LR019732	CLAMP - EXHAUST	$27.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WCM500080	GASKET - EXHAUST PIPE	$15.49	To Order

Photo	Part No	Description	Price (each)	Stock
	WCS500030	INSULATOR - RUBBER	$26.72	To Order

Photo	Part No	Description	Price (each)	Stock
	WCD501941	PIPE - EXHAUST - FRONT	$1,438.49	To Order
	LR019730	PIPE - EXHAUST - FRONT	$1,502.33	To Order

Photo	Part No	Description	Price (each)	Stock
	WCD501951	PIPE - EXHAUST - FRONT	$1,353.78	To Order
	LR019731	PIPE - EXHAUST - FRONT	$1,431.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006416	PIPE - EXHAUST - FRONT	$1,371.04	To Order
	LR019733	PIPE - EXHAUST	$1,431.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006417	PIPE - EXHAUST - FRONT	$1,480.74	To Order
	LR019734	PIPE - EXHAUST	$1,430.96	To Order

Photo	Part No	Description	Price (each)	Stock
	WCU500240	BRACKET - MUFFLER OUTLET PIPE	$9.08	To Order

Photo	Part No	Description	Price (each)	Stock
	WCU500200	BRACKET - MUFFLER OUTLET PIPE	$12.30	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	ERR4245	NUT - HEX.	ERR4245 NUT - HEX. M8 / From: AA000001	$4.90	2
HS1	WYP000025	SCREW	WYP000025 SCREW Hexagonal Head, M8 X 20MM / From: AA000001	$2.85	6
5A231	LR019732	CLAMP - EXHAUST IN STOCK	LR019732 CLAMP - EXHAUST From: AA000001 / To: AA316942 IN STOCK	$27.70	2
5A231	LR019732	CLAMP - EXHAUST IN STOCK	LR019732 CLAMP - EXHAUST From: AA316943 IN STOCK	$27.70	2
5B266	WCM500080	GASKET - EXHAUST PIPE	WCM500080 GASKET - EXHAUST PIPE Exhaust pipe / From: AA000001	$15.49	2
5E212A	WCD501941	PIPE - EXHAUST - FRONT	WCD501941 PIPE - EXHAUST - FRONT RH, Downpipe / From: AA000001 / To: AA316687	$1,438.49	1
5E212A	LR019730	PIPE - EXHAUST - FRONT	LR019730 PIPE - EXHAUST - FRONT RH, Downpipe / From: AA316688	$1,502.33	1
5E212B	WCD501951	PIPE - EXHAUST - FRONT	WCD501951 PIPE - EXHAUST - FRONT LH, Downpipe / From: AA000001 / To: AA316687	$1,353.78	1
5E212B	LR019731	PIPE - EXHAUST - FRONT	LR019731 PIPE - EXHAUST - FRONT LH, Downpipe / From: AA316688	$1,431.82	1
5E212C	LR006416	PIPE - EXHAUST - FRONT	LR006416 PIPE - EXHAUST - FRONT RH / From: AA000001 / To: AA315106	$1,371.04	1
5E212C	LR019733	PIPE - EXHAUST	LR019733 PIPE - EXHAUST RH / From: AA315107	$1,431.21	1
5E212D	LR006417	PIPE - EXHAUST - FRONT	LR006417 PIPE - EXHAUST - FRONT LH / From: AA000001 / To: AA315106	$1,480.74	1
5E212D	LR019734	PIPE - EXHAUST	LR019734 PIPE - EXHAUST LH / From: AA315107	$1,430.96	1
5F262	WCS500030	INSULATOR - RUBBER	WCS500030 INSULATOR - RUBBER From: AA000001	$26.72	6
5K291A	WCU500240	BRACKET - MUFFLER OUTLET PIPE	WCU500240 BRACKET - MUFFLER OUTLET PIPE RH / From: AA000001	$9.08	1
5K291B	WCU500200	BRACKET - MUFFLER OUTLET PIPE	WCU500200 BRACKET - MUFFLER OUTLET PIPE LH / From: AA000001	$12.30	1
