View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108252	BOLT - HEX.HEAD	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR007170	INTERCOOLER	$771.87	To Order

Photo	Part No	Description	Price (each)	Stock
	PNH500460	HOSE	$606.20	To Order

Photo	Part No	Description	Price (each)	Stock
	PNH500520	HOSE	$320.72	To Order

Photo	Part No	Description	Price (each)	Stock
	PNH500510	HOSE	$58.27	To Order

Photo	Part No	Description	Price (each)	Stock
	PNH500500	HOSE	$69.51	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108252	BOLT - HEX.HEAD	FS108252 BOLT - HEX.HEAD Hexagonal Head, M8 X 25MM / From: AA000001	$0.74	2
HS1	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: AA000001 IN STOCK	$1.19	3
6K683A	PNH500460	HOSE	PNH500460 HOSE RH Lower, With Clamps / From: AA000001	$606.20	1
6K683B	PNH500520	HOSE	PNH500520 HOSE LH Lower, With Clamps / From: AA000001	$320.72	1
9F795A	PNH500510	HOSE	PNH500510 HOSE RH Upper, With Clamps / From: AA000001	$58.27	1
9F795B	PNH500500	HOSE	PNH500500 HOSE LH Upper, With Clamps / From: AA000001	$69.51	1
9L440	LR007170	INTERCOOLER	LR007170 INTERCOOLER From: AA000001	$771.87	1

Haven't found what you're looking for?

View Cart / Checkout

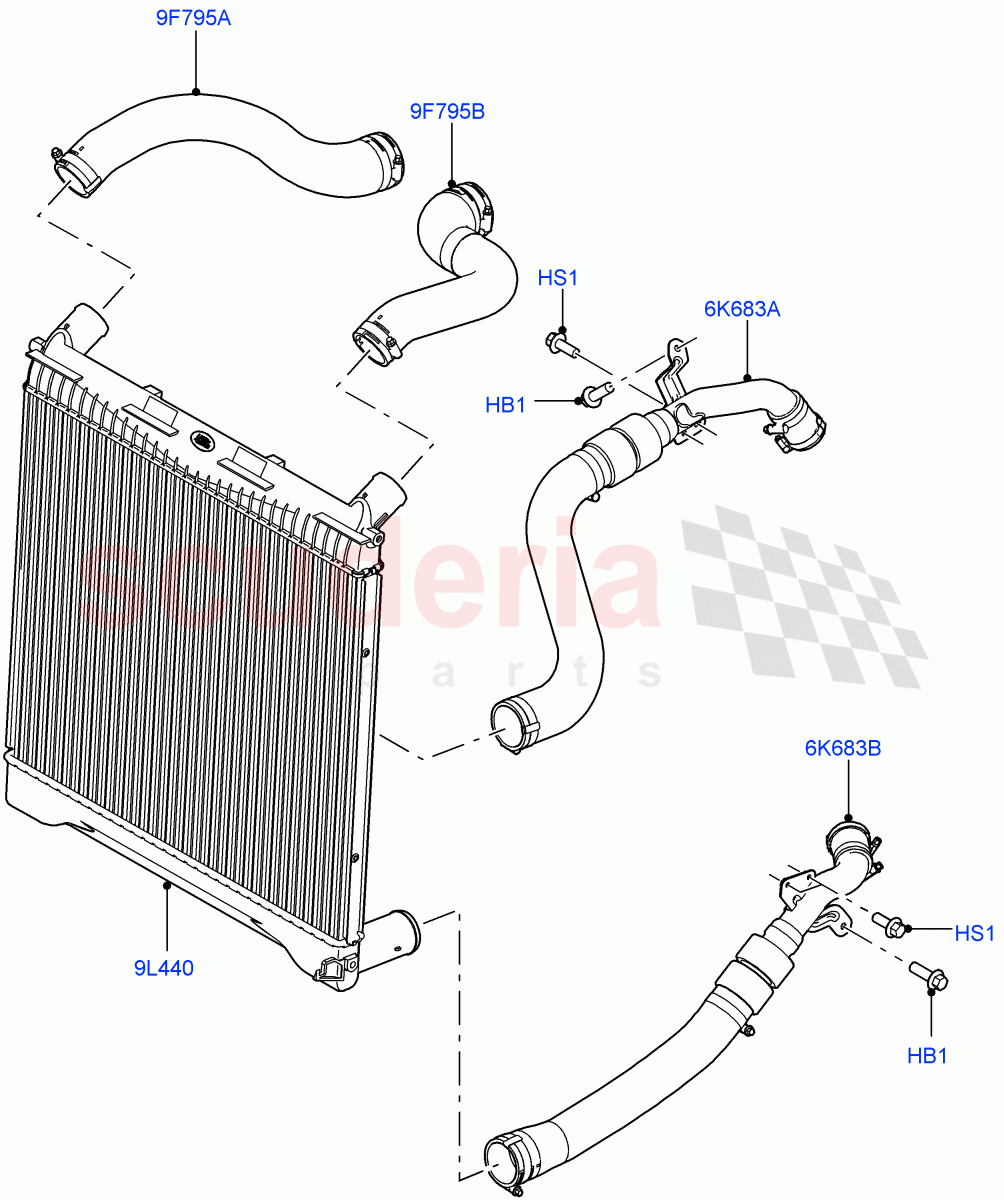

Intercooler/Air Ducts And Hoses (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]
