Electrical Wiring - Engine And Dash (Engine) (5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Electrical Wiring - Engine And Dash (Engine) (5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C...

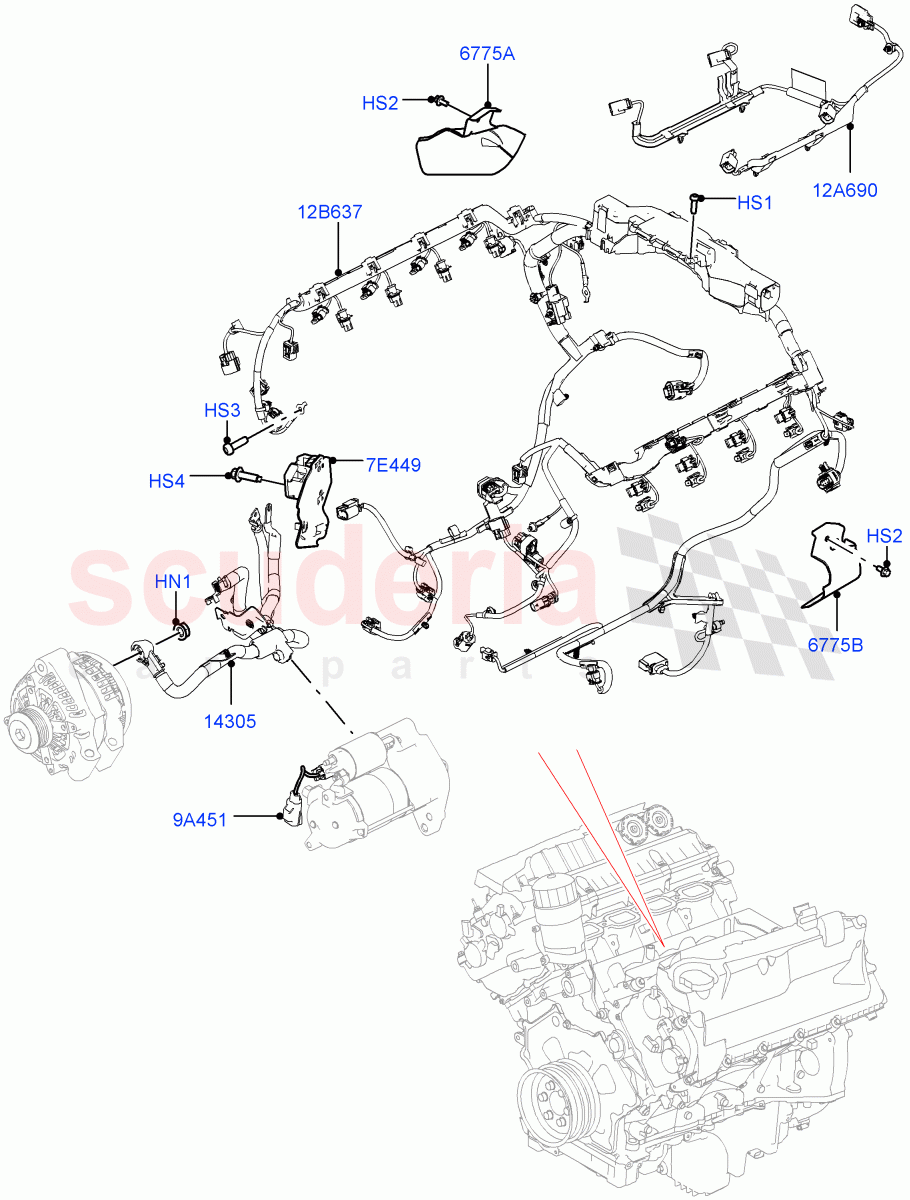

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYH500340	NUT AND WASHER - HEX.	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	FA106126	SCREW	$0.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011413	SCREW	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	4467593	BOLT - HEX.HEAD	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110188	WIRE - ALTERNATOR	$103.20	To Order
	LR110189	WIRE - ALTERNATOR	$170.79	To Order
	LR120988	WIRE - ALTERNATOR	$180.87	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR011980	HEAT SHIELD - CONNECTOR	$10.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011500	HEAT SHIELD - CONNECTOR	$107.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085666	TERMINAL - BATTERY	$102.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043370	WIRING - STARTER MOTOR	$16.72	To Order
	LR065955	CABLE - BATTERY TO STARTER MOTOR	$66.29	To Order
	LR163248	CABLE - BATTERY TO STARTER MOTOR	$71.60	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR101432	WIRE - KNOCK SENSOR	$67.61	To Order
	LR172837	Wiring - Engine	$63.67	To Order
	LR172837	Wiring - Engine	$63.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101433	WIRING - ENGINE	$2,094.41	To Order
	LR112724	WIRING - ENGINE	$1,897.95	To Order
	LR113149	WIRING - ENGINE	$2,093.83	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	RYH500340	NUT AND WASHER - HEX.	RYH500340 NUT AND WASHER - HEX. Alternator, M8, Nut And Washer / From: JA000001	$1.04	1
HS1	LR010904	SCREW	LR010904 SCREW Engine Harness, M6 X 20MM / From: JA000001	$1.19	2
HS2	FA106126	SCREW IN STOCK	FA106126 SCREW Hexagonal Head, M6 x 12MM / From: JA000001 IN STOCK	$0.45	2
HS3	LR011413	SCREW	LR011413 SCREW M6 X 20MM / From: JA000001	$1.04	2
HS4	4467593	BOLT - HEX.HEAD	4467593 BOLT - HEX.HEAD Hexagonal Head, M6 X 20MM, Terminal Box / From: JA000001	$0.68	2
7E449	LR085666	TERMINAL - BATTERY	LR085666 TERMINAL - BATTERY Battery Cables / From: JA000001	$102.75	1
9A451	LR043370	WIRING - STARTER MOTOR	LR043370 WIRING - STARTER MOTOR Standard Electric Starter Motor / From: JA000001 / To: NA468233	$16.72	1
9A451	LR065955	CABLE - BATTERY TO STARTER MOTOR	LR065955 CABLE - BATTERY TO STARTER MOTOR Starter - Stop/Start System / From: JA000001 / To: NA471172	$66.29	1
9A451	LR163248	CABLE - BATTERY TO STARTER MOTOR	LR163248 CABLE - BATTERY TO STARTER MOTOR Starter - Stop/Start System / From: NA471173 / To: NA472367	$71.60	1
9A451	LR173654	Wiring	LR173654 Wiring Starter - Stop/Start System / From: NA472638	$68.75	1
9A451	LR163787	WIRING - STARTER MOTOR	LR163787 WIRING - STARTER MOTOR Standard Electric Starter Motor / From: NA468234 / To: NA472637	$16.72	1
9A451	LR173607	Wiring	LR173607 Wiring Standard Electric Starter Motor / From: NA472638	$15.76	1
12A690	LR101432	WIRE - KNOCK SENSOR	LR101432 WIRE - KNOCK SENSOR Anti-Knock Sensor / From: JA000001 / To: MA440997	$67.61	1
12A690	LR172837	Wiring - Engine	LR172837 Wiring - Engine Anti-Knock Sensor / From: MA440998 / To: NA472638	$63.67	1
12A690	LR172837	Wiring - Engine	LR172837 Wiring - Engine Anti-Knock Sensor / From: NA472639	$63.67	1
12B637	LR101433	WIRING - ENGINE	LR101433 WIRING - ENGINE 5.0 Petrol AJ133 DOHC CDA / Engine / From: JA000001 / To: JA999999	$2,094.41	1
12B637	LR112724	WIRING - ENGINE	LR112724 WIRING - ENGINE 5.0L P AJ133 DOHC CDA S/C Enhanced / Engine / From: JA000001 / To: JA999999	$1,897.95	1
12B637	LR113149	WIRING - ENGINE	LR113149 WIRING - ENGINE Engine / From: KA000001 / To: MA440537	$2,093.83	1
12B637	LR156698	Wire	LR156698 Wire Engine / From: MA440538 / To: MA442625	$855.19	1
12B637	LR157860	WIRING - ENGINE	LR157860 WIRING - ENGINE Engine / From: MA442626 / To: NA472638	$892.70	1
12B637	LR172839	Wire	LR172839 Wire Engine / From: NA472639	$908.12	1
6775A	LR011980	HEAT SHIELD - CONNECTOR	LR011980 HEAT SHIELD - CONNECTOR RH, To Transmission / From: JA000001	$10.18	1
6775B	LR011500	HEAT SHIELD - CONNECTOR	LR011500 HEAT SHIELD - CONNECTOR LH, To Transmission / From: JA000001	$107.89	1
14305	LR110188	WIRE - ALTERNATOR	LR110188 WIRE - ALTERNATOR Starter - Stop/Start System / From: JA000001 / To: JA999999	$103.20	1
14305	LR110189	WIRE - ALTERNATOR	LR110189 WIRE - ALTERNATOR Standard Electric Starter Motor / From: JA000001 / To: JA999999	$170.79	1
14305	LR120988	WIRE - ALTERNATOR	LR120988 WIRE - ALTERNATOR Starter - Stop/Start System / From: KA000001	$180.87	1
14305	LR120989	WIRE - ALTERNATOR	LR120989 WIRE - ALTERNATOR Standard Electric Starter Motor / From: KA000001	$230.67	1
