Name: Auto Trans Assy & Speedometer Drive (3.0L AJ20P6 Petrol High, 8 Speed Auto Trans ZF 8HP76) ((V) FROMKA000001)
Rating: 4.3 (1 reviews)

Auto Trans Assy & Speedometer Drive (3.0L AJ20P6 Petrol High, 8 Speed Auto Trans ZF 8HP76) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Auto Trans Assy & Speedometer Drive (3.0L AJ20P6 Petrol High, 8 Speed Auto Trans ZF 8HP76) ((V)...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB110156	BOLT - HEX.HEAD	$2.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR078426	FASTENER - COVER	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005541	RIVET - PLASTIC	$0.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR042472	SCREW	$0.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017279	STUD	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113715	AUTOMATIC TRANSMISSION	$9,219.35	To Order
	LR154984	AUTOMATIC TRANSMISSION	$6,308.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124790	HEAT SHIELD - TRANSMISSION	$36.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121397	TUBE - TRANSMISSION VENTILATION	$226.63	To Order
	LR137399	TUBE - TRANSMISSION VENTILATION	$46.69	To Order
	LR144956	TUBE - TRANSMISSION VENTILATION	$213.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123854	GROMMET - CONVERTER ACCESS	$7.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121402	SHIELD - TRANSMISSION	$21.91	To Order
	LR152491	SHIELD - TRANSMISSION	$21.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121401	SHIELD - TRANSMISSION	$20.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113603	INSULATOR	$150.96	To Order
	LR139493	INSULATOR	$142.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121409	INSULATOR - TRANSMISSION	$138.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121407	INSULATOR - TRANSMISSION	$142.13	To Order

View All

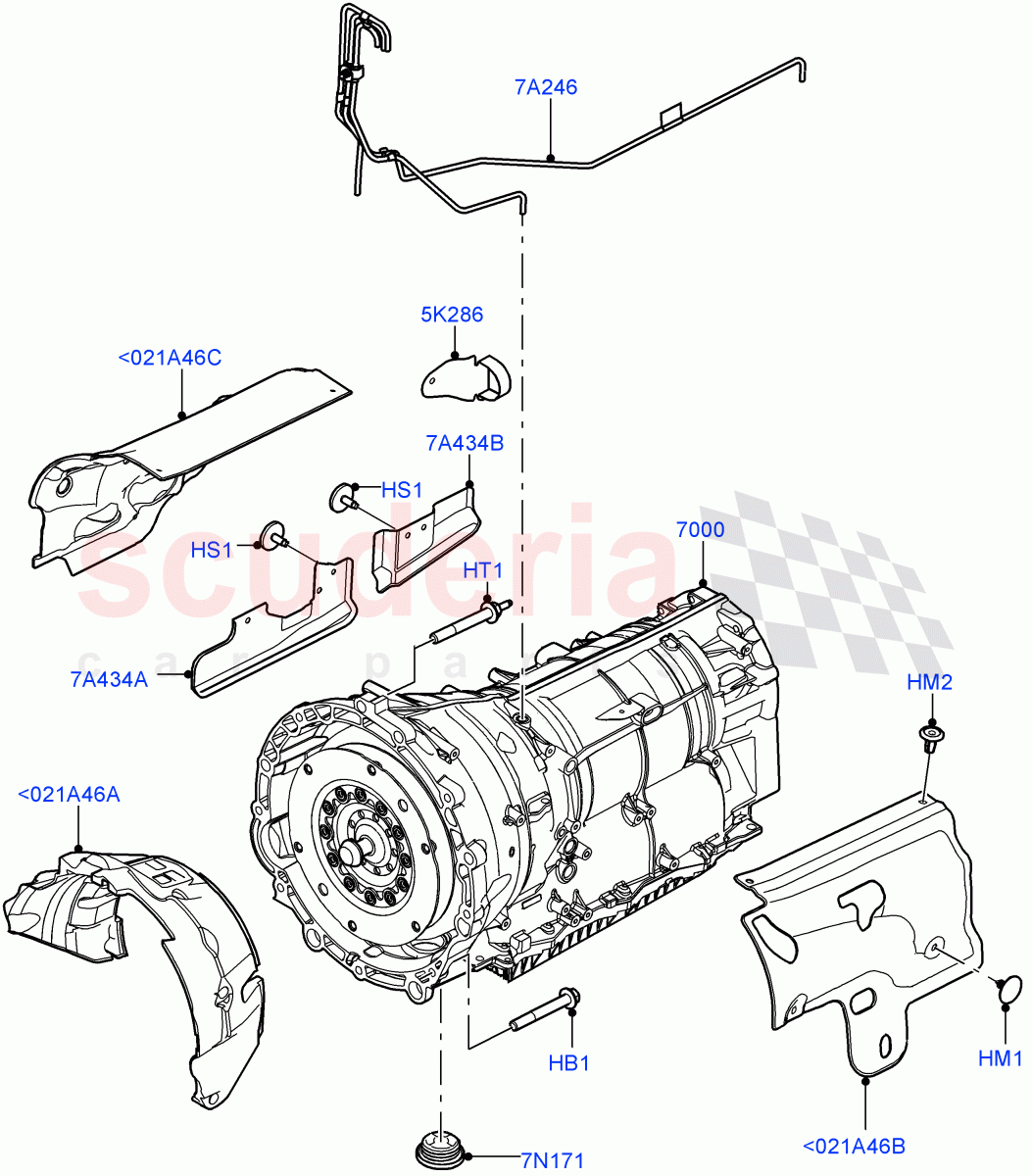

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<021A46A	LR113603	INSULATOR	LR113603 INSULATOR Front / From: KA000001 / To: LA404781	$150.96	1
<021A46A	LR139493	INSULATOR	LR139493 INSULATOR Front / From: LA404782	$142.96	1
<021A46B	LR121409	INSULATOR - TRANSMISSION	LR121409 INSULATOR - TRANSMISSION Thermal Encapsulation Covers / LH / From: KA000001	$138.21	1
<021A46C	LR121407	INSULATOR - TRANSMISSION	LR121407 INSULATOR - TRANSMISSION Thermal Encapsulation Covers / RH / From: KA000001	$142.13	1
HB1	FB110156	BOLT - HEX.HEAD IN STOCK	FB110156 BOLT - HEX.HEAD Hexagonal Head, M10 x 75MM, Transmission To Engine / From: KA000001 IN STOCK	$2.58	4
HM1	LR078426	FASTENER - COVER	LR078426 FASTENER - COVER Thermal Encapsulation Covers / 4.75 x 0.76 - 7.9 / From: KA000001	$1.39	4
HM2	LR005541	RIVET - PLASTIC IN STOCK	LR005541 RIVET - PLASTIC Thermal Encapsulation Covers / Rivet Push Pin 7 X 3-4.5 / From: KA000001 IN STOCK	$0.80	2
HS1	LR042472	SCREW	LR042472 SCREW Heatshield, Hexagonal Head, M6 X 16MM / From: KA000001	$0.95	4
HT1	LR017279	STUD	LR017279 STUD M10 x 75MM, M6 X 16MM, Transmission To Engine / From: KA000001	$2.16	4
5K286	LR124790	HEAT SHIELD - TRANSMISSION	LR124790 HEAT SHIELD - TRANSMISSION Rear / From: KA000001	$36.28	1
7A246	LR121397	TUBE - TRANSMISSION VENTILATION	LR121397 TUBE - TRANSMISSION VENTILATION Gearbox, Includes Bracket, Transfer Box / From: KA000001 / To: LA594792	$226.63	1
7A246	LR137399	TUBE - TRANSMISSION VENTILATION	LR137399 TUBE - TRANSMISSION VENTILATION Gearbox, Includes Bracket, Transfer Box / From: LA594793 / To: MA427602	$46.69	1
7A246	LR144956	TUBE - TRANSMISSION VENTILATION	LR144956 TUBE - TRANSMISSION VENTILATION Gearbox, Includes Bracket, Transfer Box / From: MA427603	$213.46	1
7A434A	LR121402	SHIELD - TRANSMISSION	LR121402 SHIELD - TRANSMISSION Front / From: KA000001 / To: LA999999	$21.91	1
7A434A	LR152491	SHIELD - TRANSMISSION	LR152491 SHIELD - TRANSMISSION Front / From: MA000001	$21.91	1
7A434B	LR121401	SHIELD - TRANSMISSION	LR121401 SHIELD - TRANSMISSION Centre / From: KA000001	$20.30	1
7N171	LR123854	GROMMET - CONVERTER ACCESS	LR123854 GROMMET - CONVERTER ACCESS Converter Drain Access / From: KA000001	$7.06	1
7000	LR113715	AUTOMATIC TRANSMISSION	LR113715 AUTOMATIC TRANSMISSION Includes Converter / From: KA000001	$9,219.35	1
7000	LR154984	AUTOMATIC TRANSMISSION	LR154984 AUTOMATIC TRANSMISSION Includes Converter, Remanufactured Part / From: KA000001	$6,308.30	1
