Name: Timing Gear (Timing Chains, Tensioners) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMAA000001)
Rating: 4.9 (1 reviews)

Timing Gear (Timing Chains, Tensioners) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Timing Gear (Timing Chains, Tensioners) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC...

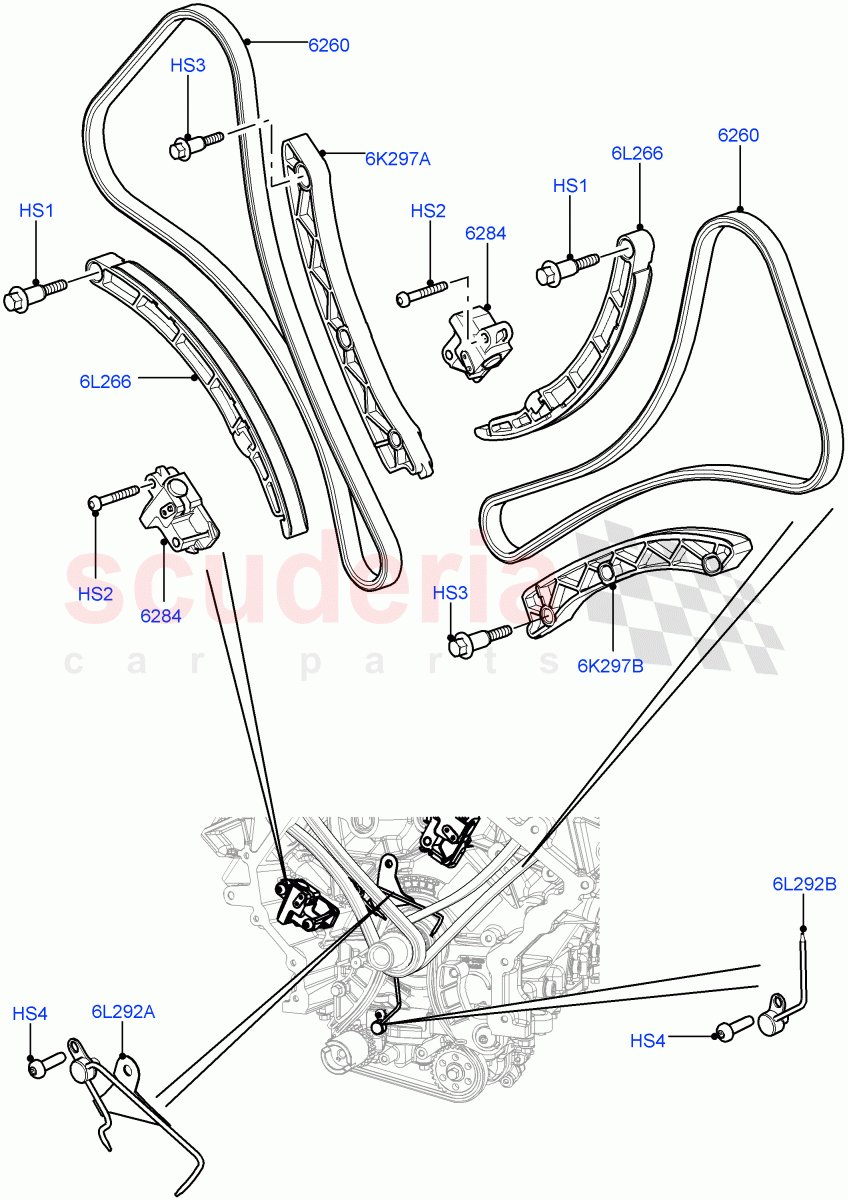

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011522	SCREW	$2.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011272	SCREW	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011064	SCREW	$2.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032048	CHAIN - TIMING	$86.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR095472	TENSIONER - TIMING CHAIN	$141.25	IN STOCK
	LR095472	TENSIONER - TIMING CHAIN	$141.25	IN STOCK
	LR095472	TENSIONER - TIMING CHAIN	$141.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR051013	BLADE - TENSIONER	$63.13	IN STOCK
	LR051013	BLADE - TENSIONER	$63.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR051013	BLADE - TENSIONER	$63.13	IN STOCK
	LR051011	GUIDE - TIMING CHAIN	$46.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR051012	GUIDE - TIMING CHAIN	$46.40	IN STOCK
	LR051012	GUIDE - TIMING CHAIN	$46.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR032714	JET - CHAIN LUBRICATING	$49.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042667	JET - CHAIN LUBRICATING	$25.84	To Order
	LR059161	JET - CHAIN LUBRICATING	$17.96	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR011522	SCREW IN STOCK	LR011522 SCREW M8 X 45MM, Tensioner IN STOCK	$2.77	2
HS2	LR011272	SCREW	LR011272 SCREW M6 X 40MM, Torx	$1.32	4
HS3	LR011064	SCREW IN STOCK	LR011064 SCREW Chain Guide, M6 X 38MM IN STOCK	$2.47	6
HS4	LR010904	SCREW	LR010904 SCREW M6 X 20MM, Washer Nozzle	$1.19	2
6K297A	LR051013	BLADE - TENSIONER IN STOCK	LR051013 BLADE - TENSIONER RH, Timing Chain / To: EA140967 IN STOCK	$63.13	1
6K297A	LR051011	GUIDE - TIMING CHAIN IN STOCK	LR051011 GUIDE - TIMING CHAIN RH, Timing Chain / From: EA140968 IN STOCK	$46.40	1
6K297B	LR051012	GUIDE - TIMING CHAIN IN STOCK	LR051012 GUIDE - TIMING CHAIN LH, Timing Chain / To: EA140967 IN STOCK	$46.40	1
6K297B	LR051012	GUIDE - TIMING CHAIN IN STOCK	LR051012 GUIDE - TIMING CHAIN LH, Timing Chain / From: EA140968 IN STOCK	$46.40	1
6L266	LR051013	BLADE - TENSIONER IN STOCK	LR051013 BLADE - TENSIONER Blade, If you change LR040977 and order a part after s/s, you will receive a kit contains new blade and tensioner., The old and the new parts cannot be mixed. / To: EA140967 IN STOCK	$63.13	2
6L266	LR051013	BLADE - TENSIONER IN STOCK	LR051013 BLADE - TENSIONER Blade / From: EA140968 IN STOCK	$63.13	2
6L292A	LR032714	JET - CHAIN LUBRICATING	LR032714 JET - CHAIN LUBRICATING Chain Lubricating, Upper	$49.10	1
6L292B	LR042667	JET - CHAIN LUBRICATING	LR042667 JET - CHAIN LUBRICATING Chain Lubricating, Lower / To: EA173150	$25.84	1
6L292B	LR059161	JET - CHAIN LUBRICATING IN STOCK	LR059161 JET - CHAIN LUBRICATING Chain Lubricating, Lower / From: EA173151 IN STOCK	$17.96	1
6260	LR032048	CHAIN - TIMING IN STOCK	LR032048 CHAIN - TIMING IN STOCK	$86.54	2
6284	LR095472	TENSIONER - TIMING CHAIN IN STOCK	LR095472 TENSIONER - TIMING CHAIN If you change LR032088 and order a part after s/s, you will receive a kit containing new blade and tensioner., The old and the new parts cannot be mixed. / To: EA140967 IN STOCK	$141.25	2
6284	LR095472	TENSIONER - TIMING CHAIN IN STOCK	LR095472 TENSIONER - TIMING CHAIN From: EA140968 / To: HA322891 IN STOCK	$141.25	2
6284	LR095472	TENSIONER - TIMING CHAIN IN STOCK	LR095472 TENSIONER - TIMING CHAIN From: HA322892 IN STOCK	$141.25	2
