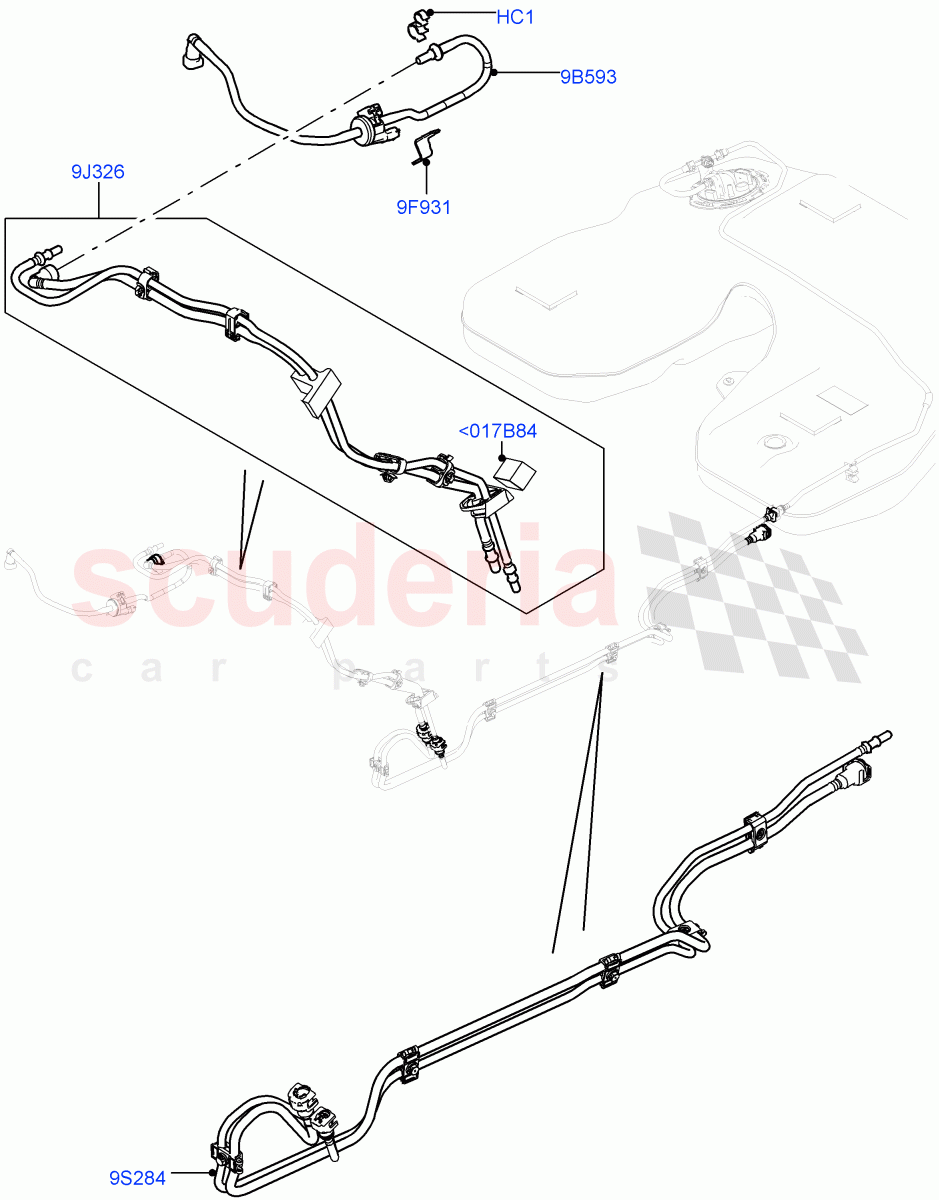

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR014474	CLIP	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010749	VALVE - FUEL VAPOUR	$166.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011563	BRACKET - FUEL VAPOUR VALVE	$12.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044589	PIPE - FUEL	$92.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044705	TUBE - FUEL SUPPLY AND VAPOUR	$121.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044464	PAD - FOAM	$28.18	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<017B84	LR044464	PAD - FOAM	LR044464 PAD - FOAM	$28.18	1
HC1	LR014474	CLIP	LR014474 CLIP Double	$1.09	1
9B593	LR010749	VALVE - FUEL VAPOUR	LR010749 VALVE - FUEL VAPOUR	$166.29	1
9F931	LR011563	BRACKET - FUEL VAPOUR VALVE	LR011563 BRACKET - FUEL VAPOUR VALVE Fuel Vapour Valve	$12.22	1
9J326	LR044589	PIPE - FUEL	LR044589 PIPE - FUEL Return, Set Of 2 Pieces, Supply	$92.37	1
9S284	LR044705	TUBE - FUEL SUPPLY AND VAPOUR	LR044705 TUBE - FUEL SUPPLY AND VAPOUR Rear, Set Of 2 Pieces	$121.18	1
