Name: Fuel Injectors And Pipes (5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMJA000001)
Rating: 4.1 (1 reviews)

Fuel Injectors And Pipes (5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Fuel Injectors And Pipes (5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V)...

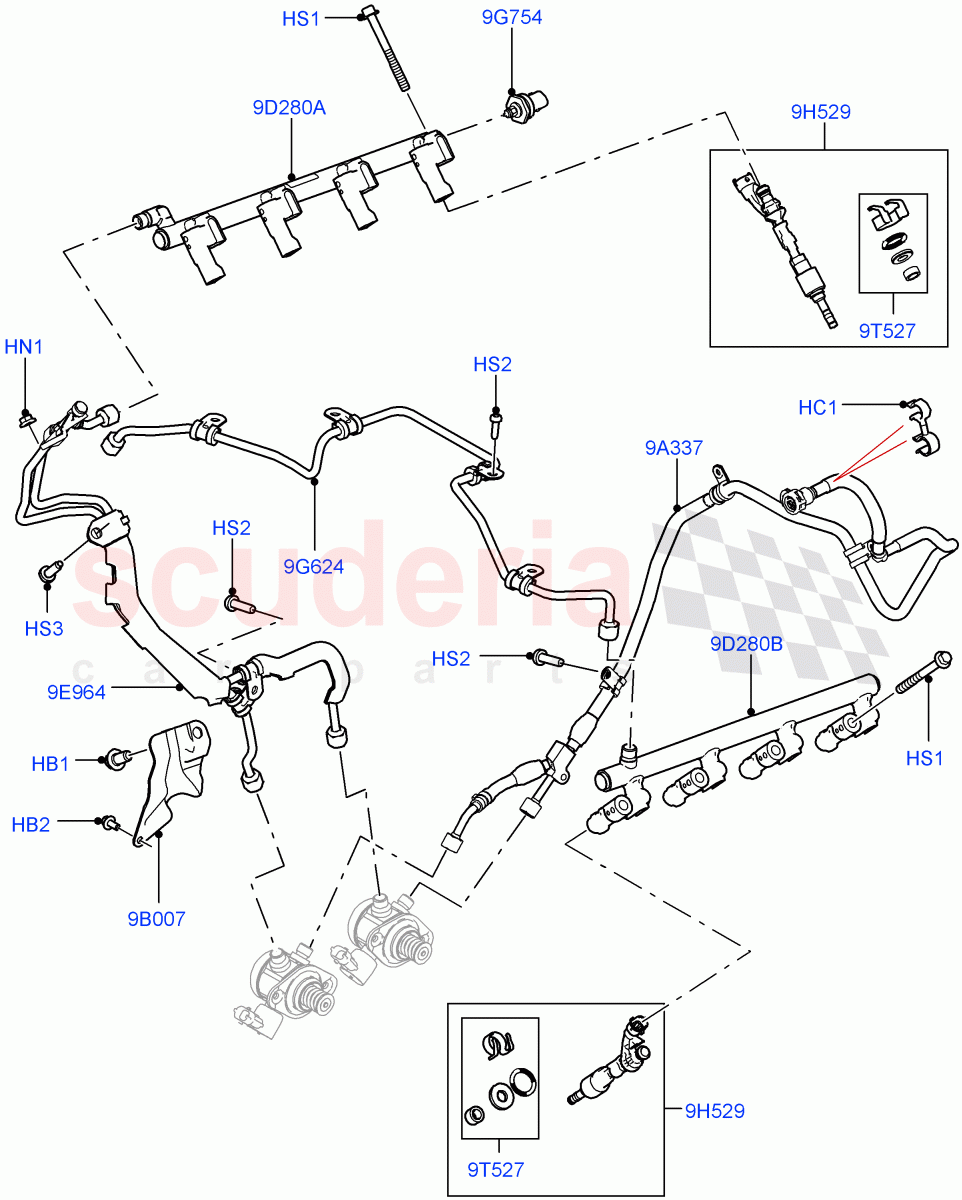

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR012779	BOLT	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106122	BOLT	$3.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054833	CLIP	$4.51	To Order

Photo	Part No	Description	Price (each)	Stock
	FN105042	NUT - HEX. - FLANGED	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011274	SCREW	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030807	SCREW	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR097271	Pipe - Fuel	Enquire	To Order
	LR116433	PIPE - FUEL	$86.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012782	SHIELD - FUEL TUBES	$7.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065487	PIPE - FUEL	$233.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088579	TUBE - FUEL CROSSOVER	$98.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108241	SENSOR - FUEL PRESSURE/TEMPERATURE	$111.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105590	KIT - FUEL INJECTION	$299.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR037089	KIT - INJECTOR REFIT	$27.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR077733	MANIFOLD - FUEL SUPPLY	$597.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077734	MANIFOLD - FUEL SUPPLY	$510.42	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR012779	BOLT	LR012779 BOLT M10 X 20MM / From: JA000001	$1.00	1
HB2	FS106122	BOLT	FS106122 BOLT Cover, M6 x 12MM / From: JA000001	$3.90	1
HC1	LR054833	CLIP	LR054833 CLIP Breather Pipe, For Fuel Tube / From: JA000001	$4.51	1
HN1	FN105042	NUT - HEX. - FLANGED IN STOCK	FN105042 NUT - HEX. - FLANGED M5 / From: JA000001 IN STOCK	$0.50	1
HS1	LR011274	SCREW	LR011274 SCREW Fuel Rail / From: JA000001	$2.49	8
HS2	LR010904	SCREW	LR010904 SCREW M6 X 20MM / From: JA000001	$1.19	7
HS3	LR030807	SCREW IN STOCK	LR030807 SCREW M8 X 25MM, Torx / From: JA000001 IN STOCK	$1.34	1
9A337	LR097271	Pipe - Fuel	LR097271 Pipe - Fuel Pump Feed / From: JA000001 / To: JA393236	-	1	Enquire
9A337	LR116433	PIPE - FUEL	LR116433 PIPE - FUEL Pump Feed / From: JA393237	$86.16	1
9B007	LR012782	SHIELD - FUEL TUBES	LR012782 SHIELD - FUEL TUBES Fuel Lines To Fuel Rail / From: JA000001	$7.83	1
9D280A	LR077733	MANIFOLD - FUEL SUPPLY	LR077733 MANIFOLD - FUEL SUPPLY RH / From: JA000001	$597.97	1
9D280B	LR077734	MANIFOLD - FUEL SUPPLY	LR077734 MANIFOLD - FUEL SUPPLY LH / From: JA000001	$510.42	1
9E964	LR065487	PIPE - FUEL	LR065487 PIPE - FUEL Fuel Pump, High Pressure, To Fuel Rail / From: JA000001	$233.72	1
9G624	LR088579	TUBE - FUEL CROSSOVER	LR088579 TUBE - FUEL CROSSOVER High Pressure, To Fuel Rail / From: JA000001	$98.00	1
9G754	LR108241	SENSOR - FUEL PRESSURE/TEMPERATURE	LR108241 SENSOR - FUEL PRESSURE/TEMPERATURE From: JA000001	$111.46	1
9H529	LR105590	KIT - FUEL INJECTION IN STOCK	LR105590 KIT - FUEL INJECTION Injector Assembly, Kit For 1 Cylinder / From: JA000001 IN STOCK	$299.34	8
9T527	LR037089	KIT - INJECTOR REFIT IN STOCK	LR037089 KIT - INJECTOR REFIT Includes Oring, Teflon Seal, Retainer / From: JA000001 IN STOCK	$27.34	8
