Engine Modules And Sensors (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Toha999999)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Engine Modules And Sensors (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOHA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4147433 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FN106042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
AYH100790 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR045542 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR038618 MODULE - ENGINE CONTROL - EEC V Enquire To Order
LR084286 MODULE - ENGINE CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
LR086924 BRACKET - ENGINE CONTROL MODULE Enquire To Order
Photo Part No Description Price (each) Stock
LR071261 BRACKET - CONTROL MODULE Enquire To Order
Photo Part No Description Price (each) Stock
LR124659 BRACKET - ENGINE CONTROL MODULE Enquire To Order
View All

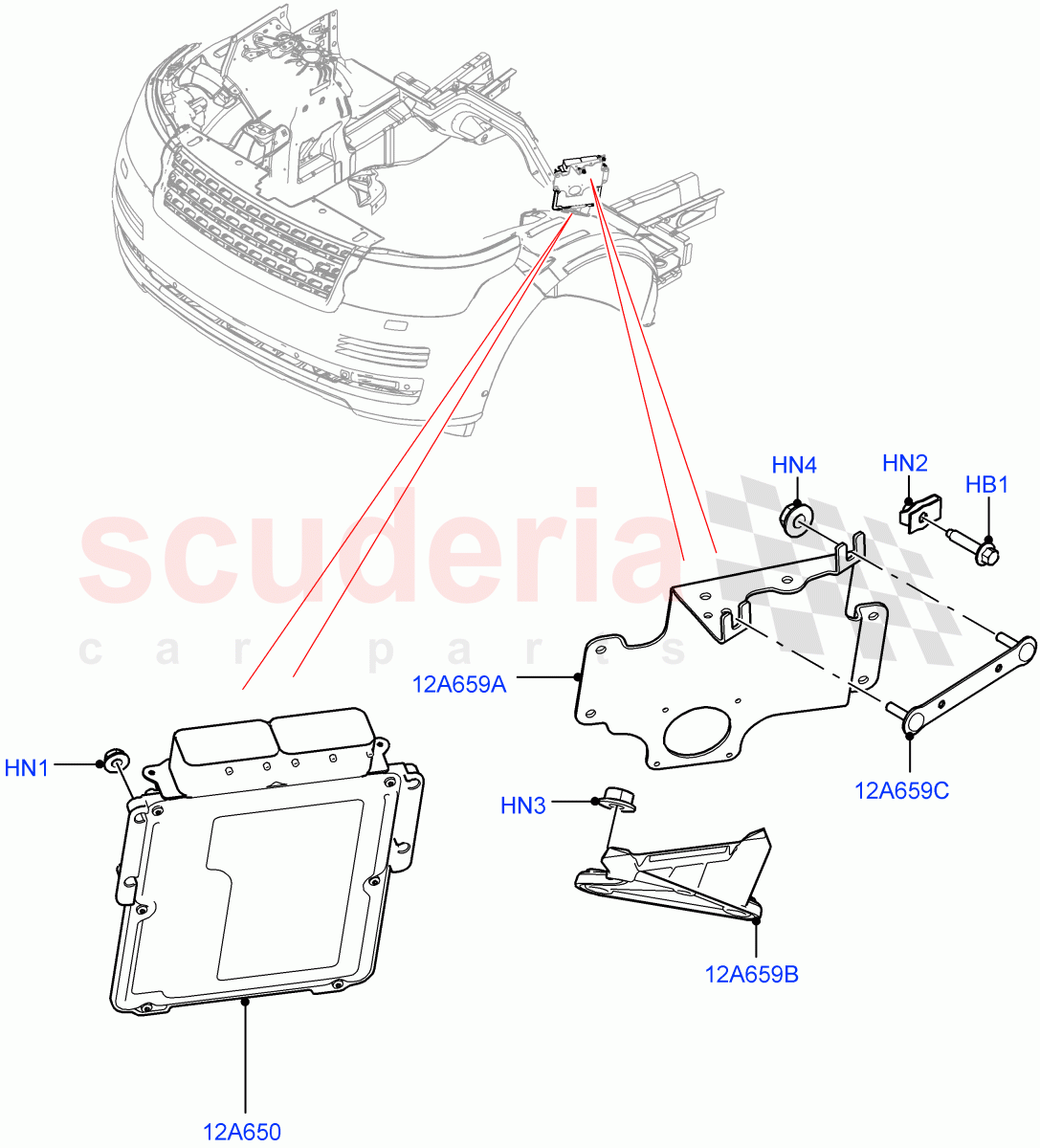

Engine Modules And Sensors (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOHA999999) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4147433
BOLT
M6 X 25MM / To: GA999999 		- 2 Enquire
HN1 FN106042
NUT
Hexagonal Head, M6 		- 4 Enquire
HN2 AYH100790
NUT - SPECIAL
M6 X 0.5-4, Nut "U" Spring / To: GA999999 		- 2 Enquire
HN3 FN106046
NUT - HEX.
Hexagonal Head, M6 		- 3 Enquire
HN4 LR045542
NUT
M6, Nut And Washer / From: HA000001 		- 2 Enquire
12A650 LR038618
MODULE - ENGINE CONTROL - EEC V
Engine / To: GA999999 		- 1 Enquire
12A650 LR084286
MODULE - ENGINE CONTROL
Engine / From: HA000001 		- 1 Enquire
12A659A LR086924
BRACKET - ENGINE CONTROL MODULE
Upper 		- 1 Enquire
12A659B LR071261
BRACKET - CONTROL MODULE 		- 1 Enquire
12A659C LR124659
BRACKET - ENGINE CONTROL MODULE
Engine Control Module (ECM), To Body / From: HA000001 		- 1 Enquire
