Name: Cylinder Head Cover (5.0L P AJ133 DOHC CDA S/C Enhanced, 5.0 Petrol AJ133 DOHC CDA, 5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)
Rating: 4.6 (1 reviews)

Cylinder Head Cover (5.0L P AJ133 DOHC CDA S/C Enhanced, 5.0 Petrol AJ133 DOHC CDA, 5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Cylinder Head Cover (5.0L P AJ133 DOHC CDA S/C Enhanced, 5.0 Petrol AJ133 DOHC CDA, 5.0L OHC SGDI...

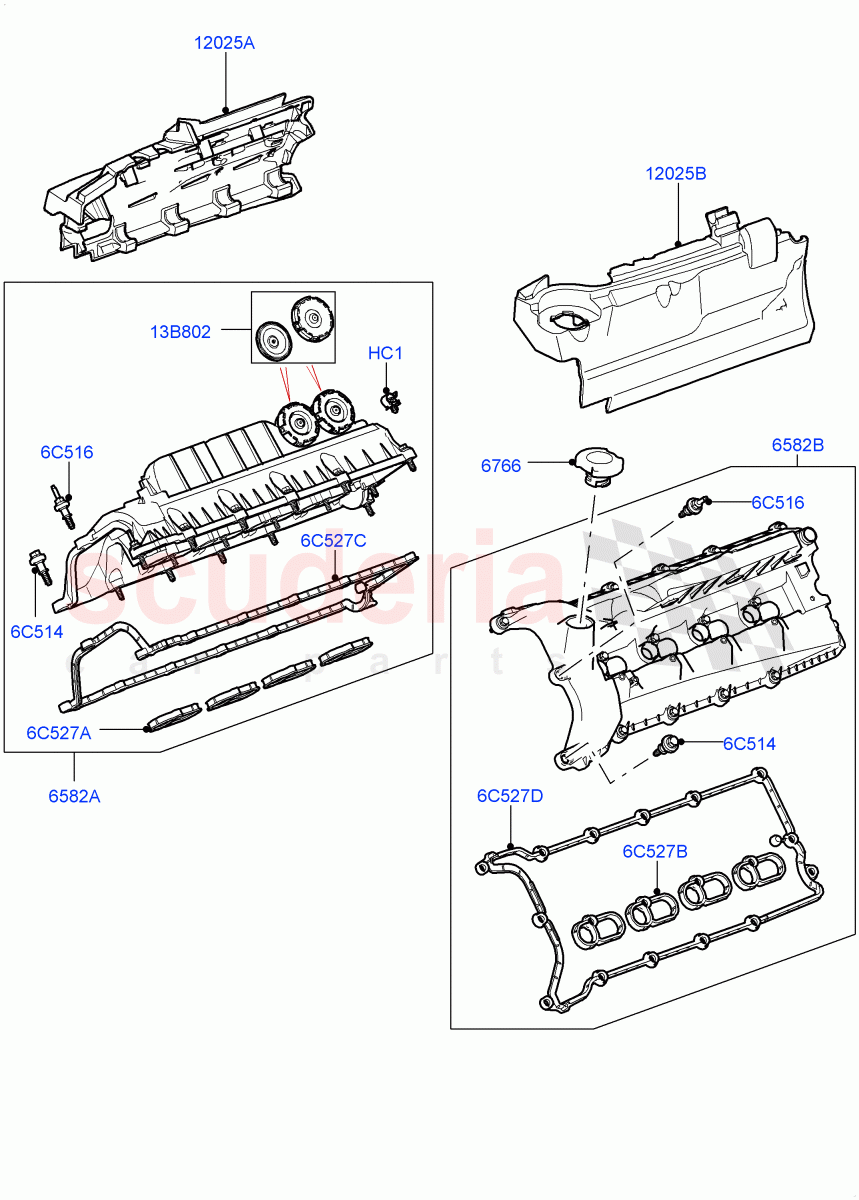

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR008882	CLIP	$2.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010731	CAP - OIL FILLER	$11.39	To Order
	LR051103	CAP - OIL FILLER	$18.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041443	COVER - CAMSHAFT	$286.34	To Order
	LR113201	COVER - CAMSHAFT	$286.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113202	COVER - CYLINDER HEAD	$286.34	To Order
	LR113202	COVER - CYLINDER HEAD	$286.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011350	SCREW AND SLEEVE - VALVE COVER	$2.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011351	STUD AND SLEEVE - VALVE COVER	$4.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041893	COVER - IGNITION COIL	$72.68	To Order
	LR178584	COVER - IGNITION COIL	$70.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107647	COVER - IGNITION COIL	$77.20	To Order
	LR107647	COVER - IGNITION COIL	$77.20	To Order

Photo	Part No	Description	Price (each)	Stock
	102123488	SERVICE KIT - PCV VALVE	$39.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011220	GASKET - SPARK PLUG APERTURE	$23.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR014345	GASKET - SPARK PLUG APERTURE	$23.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010882	GASKET - CAMSHAFT COVER	$58.78	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010789	GASKET - CAMSHAFT COVER	$64.06	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR008882	CLIP	LR008882 CLIP Cable Anchor Clip (Single) / To: HA999999	$2.89	1
6C514	LR011350	SCREW AND SLEEVE - VALVE COVER	LR011350 SCREW AND SLEEVE - VALVE COVER Grommet Included	$2.93	33
6C516	LR011351	STUD AND SLEEVE - VALVE COVER	LR011351 STUD AND SLEEVE - VALVE COVER Grommet Included	$4.24	3
6C527A	LR011220	GASKET - SPARK PLUG APERTURE IN STOCK	LR011220 GASKET - SPARK PLUG APERTURE RH Side Only, Spark Ignition IN STOCK	$23.27	4
6C527B	LR014345	GASKET - SPARK PLUG APERTURE IN STOCK	LR014345 GASKET - SPARK PLUG APERTURE LH Side Only, Spark Ignition IN STOCK	$23.27	4
6C527C	LR010882	GASKET - CAMSHAFT COVER IN STOCK	LR010882 GASKET - CAMSHAFT COVER RH, Camshaft Cover IN STOCK	$58.78	1
6C527D	LR010789	GASKET - CAMSHAFT COVER IN STOCK	LR010789 GASKET - CAMSHAFT COVER LH, Camshaft Cover IN STOCK	$64.06	1
13B802	102123488	SERVICE KIT - PCV VALVE	102123488 SERVICE KIT - PCV VALVE Includes Diaphragm And Cap	$39.55	2
6582A	LR041443	COVER - CAMSHAFT	LR041443 COVER - CAMSHAFT RH / To: HA999999	$286.34	1
6582A	LR113201	COVER - CAMSHAFT	LR113201 COVER - CAMSHAFT RH / From: JA000001	$286.34	1
6582B	LR113202	COVER - CYLINDER HEAD	LR113202 COVER - CYLINDER HEAD LH / To: HA999999	$286.34	1
6582B	LR113202	COVER - CYLINDER HEAD	LR113202 COVER - CYLINDER HEAD LH / From: JA000001	$286.34	1
6766	LR010731	CAP - OIL FILLER	LR010731 CAP - OIL FILLER To: DA999999	$11.39	1
6766	LR051103	CAP - OIL FILLER	LR051103 CAP - OIL FILLER From: EA000001	$18.94	1
12025A	LR041893	COVER - IGNITION COIL	LR041893 COVER - IGNITION COIL RH / To: HA367044	$72.68	1
12025A	LR178584	COVER - IGNITION COIL	LR178584 COVER - IGNITION COIL RH / From: HA367045	$70.05	1
12025B	LR107647	COVER - IGNITION COIL	LR107647 COVER - IGNITION COIL LH / To: HA368114	$77.20	1
12025B	LR107647	COVER - IGNITION COIL	LR107647 COVER - IGNITION COIL LH / From: HA368115	$77.20	1
