Thermostat/Housing & Related Parts (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOFA999999) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Thermostat/Housing & Related Parts (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOFA999999)

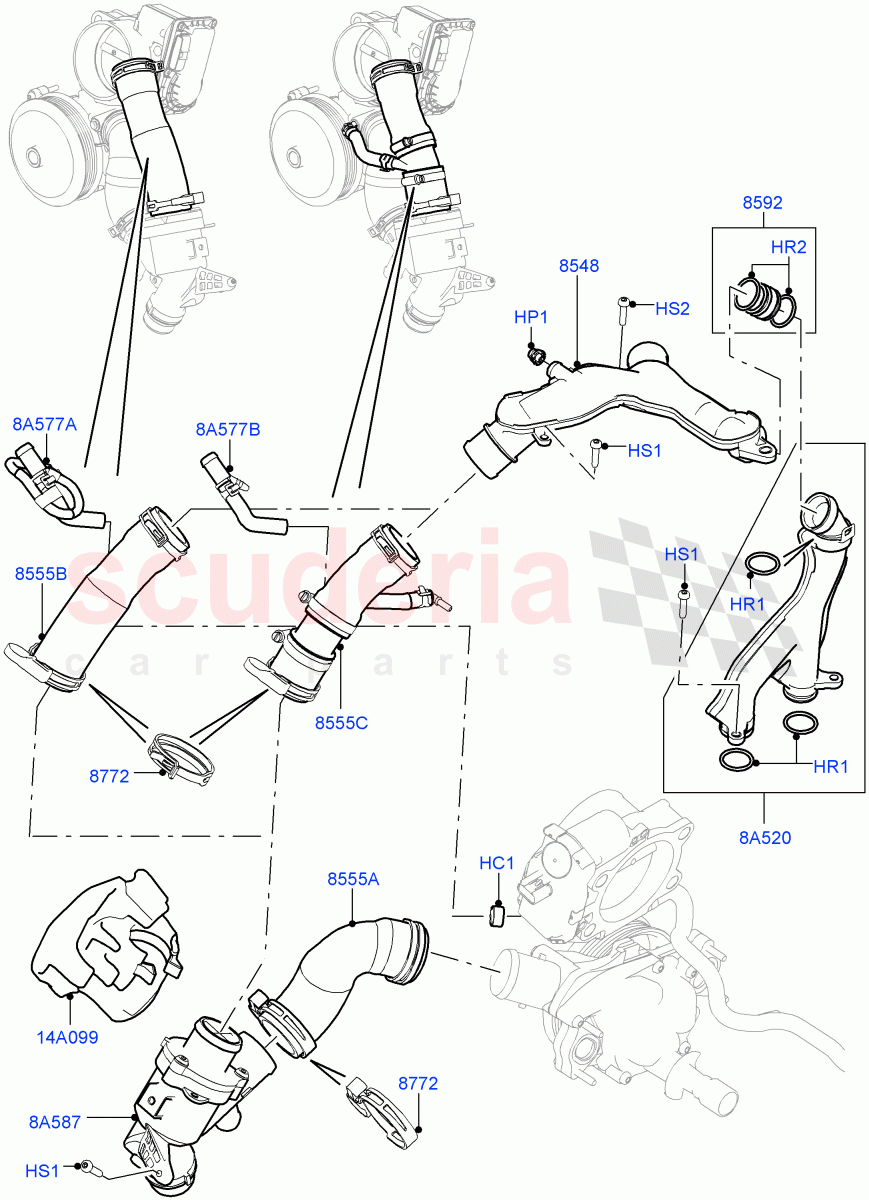

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011158	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011038	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010800	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010737	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011272	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036661	TUBE - WATER INLET	Enquire	To Order
	LR090630	TUBE - WATER INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010739	CONNECTION - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034109	CLAMP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033994	TUBE - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011856	TUBE - THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048474	Tube	Enquire	To Order
	LR049990	TUBE - THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036664	TUBE - WATER OUTLET	Enquire	To Order
	LR092992	TUBE - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035124	THERMOSTAT AND HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051007	SHIELD - PROTECTION	Enquire	To Order
	LR012780	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045239	HOSE - THROTTLE BODY HEATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045239	HOSE - THROTTLE BODY HEATER OUTLET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR011158	CLIP - HOSE	LR011158 CLIP - HOSE 13-14 X 8, Hose - Throttle Body Heater	-	1	Enquire
HP1	LR011038	PLUG - BLANKING	LR011038 PLUG - BLANKING Blanking, Cooling System Bleed	-	1	Enquire
HR1	LR010800	O-RING	LR010800 O-RING Ring - Sealing - Tube Water Outlet From Cylinder Block	-	3	Enquire
HR2	LR010737	RING - SEALING	LR010737 RING - SEALING	-	2	Enquire
HS1	LR011270	SCREW	LR011270 SCREW M6 x 25MM, Torx	-	5	Enquire
HS2	LR011272	SCREW	LR011272 SCREW M6 X 40MM, Torx	-	1	Enquire
8A520	LR036664	TUBE - WATER OUTLET	LR036664 TUBE - WATER OUTLET Includes O-Ring, Tube Water Outlet To Cylinder Block / To: DA999999	-	1	Enquire
8A520	LR092992	TUBE - WATER OUTLET	LR092992 TUBE - WATER OUTLET Includes O-Ring, Tube Water Outlet To Cylinder Block / From: EA000001	-	1	Enquire
8A577A	LR045239	HOSE - THROTTLE BODY HEATER OUTLET	LR045239 HOSE - THROTTLE BODY HEATER OUTLET Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Inspect Part Design Before Ordering, Hose - Throttle Body Heater, Outlet	-	1	Enquire
8A577B	LR045239	HOSE - THROTTLE BODY HEATER OUTLET	LR045239 HOSE - THROTTLE BODY HEATER OUTLET Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Inspect Part Design Before Ordering, Hose - Throttle Body Heater, Outlet	-	1	Enquire
8A587	LR035124	THERMOSTAT AND HOUSING	LR035124 THERMOSTAT AND HOUSING Thermostat And Housing Assy	-	1	Enquire
14A099	LR051007	SHIELD - PROTECTION	LR051007 SHIELD - PROTECTION Engine Air Deflector / From: EA000001	-	1	Enquire
14A099	LR012780	SHIELD	LR012780 SHIELD Engine Air Deflector / To: DA999999	-	1	Enquire
8548	LR036661	TUBE - WATER INLET	LR036661 TUBE - WATER INLET Water Connector - Thermostat To Top Coolant Hose / To: EA126194	-	1	Enquire
8548	LR090630	TUBE - WATER INLET	LR090630 TUBE - WATER INLET Water Connector - Thermostat To Top Coolant Hose / From: EA126195	-	1	Enquire
8555A	LR033994	TUBE - WATER OUTLET	LR033994 TUBE - WATER OUTLET From Water Pump To Thermostat, With Clamps	-	1	Enquire
8555B	LR011856	TUBE - THERMOSTAT	LR011856 TUBE - THERMOSTAT Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Inspect Part Design Before Ordering, Thermostat To Engine, With Clamps	-	1	Enquire
8555C	LR048474	Tube	LR048474 Tube Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Inspect Part Design Before Ordering, Thermostat To Engine, With Clamps / To: EA050000	-	1	Enquire
8555C	LR049990	TUBE - THERMOSTAT	LR049990 TUBE - THERMOSTAT Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Inspect Part Design Before Ordering, Thermostat To Engine, With Clamps / From: EA050001	-	1	Enquire
8592	LR010739	CONNECTION - WATER OUTLET	LR010739 CONNECTION - WATER OUTLET Includes O-Ring	-	1	Enquire
8772	LR034109	CLAMP - HOSE	LR034109 CLAMP - HOSE 49MM	-	2	Enquire
