Rear Seat Pads/Valances & Heating (With 40/40 Split Individual Rr Seat)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Rear Seat Pads/Valances & Heating (With 40/40 Split Individual Rr Seat)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR036977 VALANCE - SEAT CUSHION Enquire To Order
LR036978 VALANCE - SEAT CUSHION Enquire To Order
LR036979 VALANCE - SEAT CUSHION Enquire To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR036998 VALANCE - SEAT CUSHION Enquire To Order
LR036999 VALANCE - SEAT CUSHION Enquire To Order
LR037000 VALANCE - SEAT CUSHION Enquire To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR037290 VALANCE - SEAT CUSHION Enquire To Order
LR037291 VALANCE - SEAT CUSHION Enquire To Order
LR037293 VALANCE - SEAT CUSHION Enquire To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR037299 VALANCE - SEAT CUSHION Enquire To Order
LR037300 VALANCE - SEAT CUSHION Enquire To Order
LR037301 VALANCE - SEAT CUSHION Enquire To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR036808 PAD - REAR SEAT CUSHION Enquire To Order
LR054943 PAD - REAR SEAT CUSHION Enquire To Order
Photo Part No Description Price (each) Stock
LR036815 PAD - REAR SEAT CUSHION Enquire To Order
LR054944 PAD - REAR SEAT CUSHION Enquire To Order
Photo Part No Description Price (each) Stock
LR036822 PAD - REAR SEAT BACK Enquire To Order
LR054018 PAD - REAR SEAT BACK Enquire To Order
Photo Part No Description Price (each) Stock
LR036827 PAD - REAR SEAT BACK Enquire To Order
LR054019 PAD - REAR SEAT BACK Enquire To Order
Photo Part No Description Price (each) Stock
LR034631 DUCT - SEAT - AIR Enquire To Order
LR034633 DUCT - SEAT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR034636 DUCT - SEAT - AIR Enquire To Order
LR034640 DUCT - SEAT - AIR Enquire To Order
View All

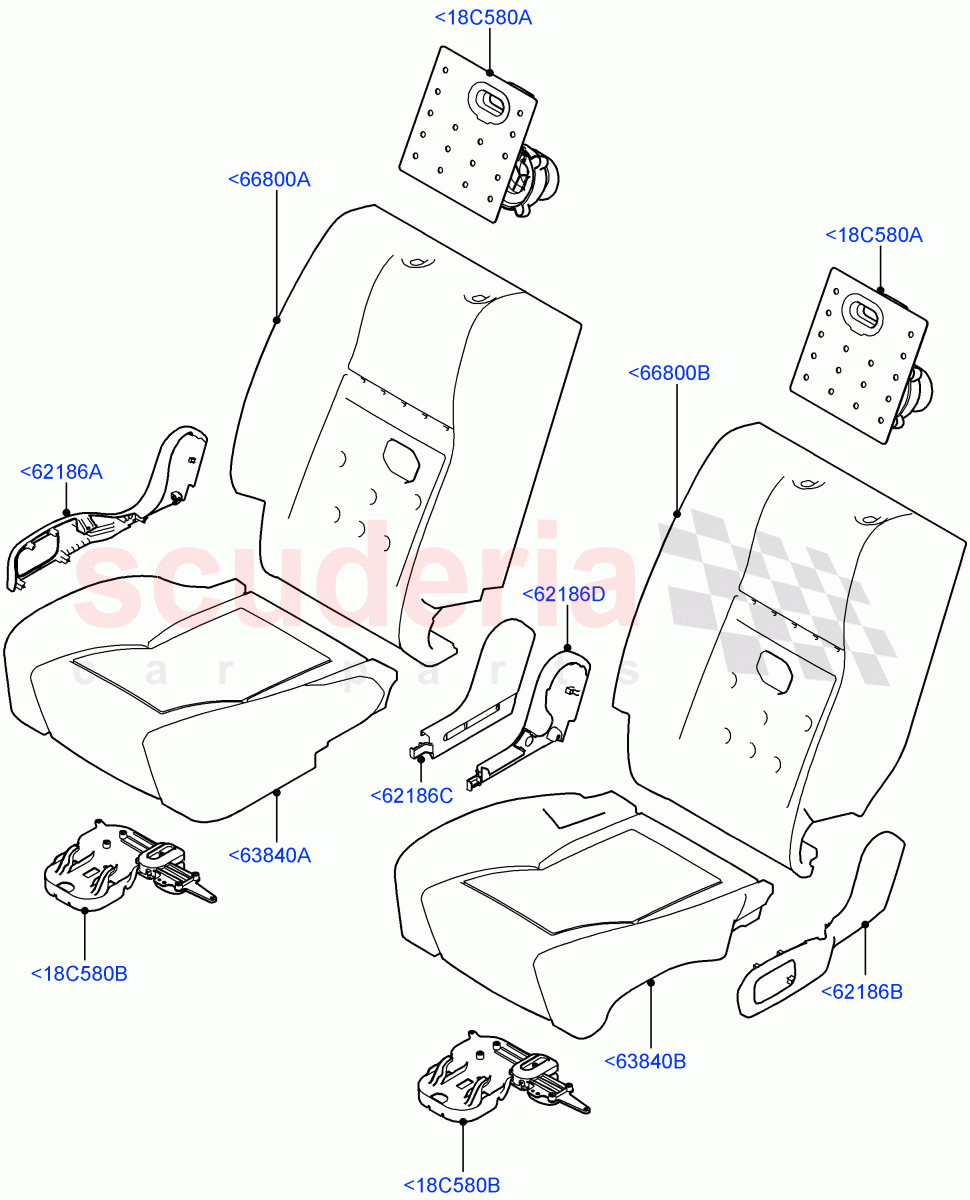

Rear Seat Pads/Valances & Heating (With 40/40 Split Individual Rr Seat) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<18C580A LR034631
DUCT - SEAT - AIR
Heated/Cooled Front/Rear Seat / RH, Rear Seat Back 		- 1 Enquire
<18C580A LR034633
DUCT - SEAT - AIR
Heated/Cooled Front/Rear Seat / LH, Rear Seat Back 		- 1 Enquire
<18C580B LR034636
DUCT - SEAT - AIR
Heated/Cooled Front/Rear Seat / RH, Rear Seat Cushion 		- 1 Enquire
<18C580B LR034640
DUCT - SEAT - AIR
Heated/Cooled Front/Rear Seat / LH, Rear Seat Cushion 		- 1 Enquire
<62186A LR036977
VALANCE - SEAT CUSHION
Dark Cherry, Semi Aniline Leather Perf / RH 		- 1 Enquire
<62186A LR036978
VALANCE - SEAT CUSHION
Espresso, Semi Aniline Leather Perf / RH 		- 1 Enquire
<62186A LR036979
VALANCE - SEAT CUSHION
Navy, Semi Aniline Leather Perf / RH 		- 1 Enquire
<62186A LR036980
VALANCE - SEAT CUSHION
Cirrus, Semi Aniline Leather Perf / RH 		- 1 Enquire
<62186A LR036981
VALANCE - SEAT CUSHION
Ivory, Semi Aniline Leather Perf / RH 		- 1 Enquire
<62186A LR036982
VALANCE - SEAT CUSHION
Ebony Black/Ebony Black Interior, Semi Aniline Leather Perf / RH 		- 1 Enquire
<62186A LR036983
VALANCE - SEAT CUSHION
Almond, Semi Aniline Leather Perf / RH 		- 1 Enquire
<62186A LR034456
VALANCE - SEAT CUSHION
Cirrus, Semi Aniline Leathr Pinestripe Perf / RH 		- 1 Enquire
<62186A LR034457
VALANCE - SEAT CUSHION
Ebony Black/Ebony Black Interior, Semi Aniline Leathr Pinestripe Perf / RH 		- 1 Enquire
<62186B LR036998
VALANCE - SEAT CUSHION
Dark Cherry, Semi Aniline Leather Perf / LH 		- 1 Enquire
<62186B LR036999
VALANCE - SEAT CUSHION
Espresso, Semi Aniline Leather Perf / LH 		- 1 Enquire
<62186B LR037000
VALANCE - SEAT CUSHION
Navy, Semi Aniline Leather Perf / LH 		- 1 Enquire
<62186B LR037001
VALANCE - SEAT CUSHION
Cirrus, Semi Aniline Leather Perf / LH 		- 1 Enquire
<62186B LR037002
VALANCE - SEAT CUSHION
Ivory, Semi Aniline Leather Perf / LH 		- 1 Enquire
<62186B LR037003
VALANCE - SEAT CUSHION
Ebony Black/Ebony Black Interior, Semi Aniline Leather Perf / LH 		- 1 Enquire
<62186B LR037004
VALANCE - SEAT CUSHION
Almond, Semi Aniline Leather Perf / LH 		- 1 Enquire
<62186B LR034463
VALANCE - SEAT CUSHION
Cirrus, Semi Aniline Leathr Pinestripe Perf / LH 		- 1 Enquire
<62186B LR034464
VALANCE - SEAT CUSHION
Ebony Black/Ebony Black Interior, Semi Aniline Leathr Pinestripe Perf / LH 		- 1 Enquire
<62186C LR037290
VALANCE - SEAT CUSHION
Dark Cherry / Inner, RH Seat / To: HA999999 		- 1 Enquire
<62186C LR037291
VALANCE - SEAT CUSHION
Brogue / Inner, RH Seat 		- 1 Enquire
<62186C LR037293
VALANCE - SEAT CUSHION
Navy / Inner, RH Seat 		- 1 Enquire
<62186C LR037294
VALANCE - SEAT CUSHION
Cirrus / Inner, RH Seat / To: HA999999 		- 1 Enquire
<62186C LR037295
VALANCE - SEAT CUSHION
Dark Cherry/Ivory Duotone / Inner, RH Seat 		- 1 Enquire
<62186C LR037296
VALANCE - SEAT CUSHION
Vintage Tan / Inner, RH Seat 		- 1 Enquire
<62186C LR037297
VALANCE - SEAT CUSHION
Almond / Inner, RH Seat 		- 1 Enquire
<62186D LR037299
VALANCE - SEAT CUSHION
Dark Cherry / Inner, LH Seat / To: HA999999 		- 1 Enquire
<62186D LR037300
VALANCE - SEAT CUSHION
Brogue / Inner, LH Seat 		- 1 Enquire
<62186D LR037301
VALANCE - SEAT CUSHION
Navy / Inner, LH Seat 		- 1 Enquire
<62186D LR037302
VALANCE - SEAT CUSHION
Cirrus / Inner, LH Seat / To: HA999999 		- 1 Enquire
<62186D LR037303
VALANCE - SEAT CUSHION
Dark Cherry/Ivory Duotone / Inner, LH Seat 		- 1 Enquire
<62186D LR037304
VALANCE - SEAT CUSHION
Vintage Tan / Inner, LH Seat 		- 1 Enquire
<62186D LR037305
VALANCE - SEAT CUSHION
Almond / Inner, LH Seat 		- 1 Enquire
<63840A LR036808
PAD - REAR SEAT CUSHION
Heated/Cooled Front/Rear Seat / RH / To: EA126707 		- 1 Enquire
<63840A LR054943
PAD - REAR SEAT CUSHION
Heated/Cooled Front/Rear Seat / RH / From: EA126708 		- 1 Enquire
<63840B LR036815
PAD - REAR SEAT CUSHION
Heated/Cooled Front/Rear Seat / LH / To: EA126707 		- 1 Enquire
<63840B LR054944
PAD - REAR SEAT CUSHION
Heated/Cooled Front/Rear Seat / LH / From: EA126708 		- 1 Enquire
<66800A LR036822
PAD - REAR SEAT BACK
Heated/Cooled Front/Rear Seat / RH / To: DA999999 		- 1 Enquire
<66800A LR054018
PAD - REAR SEAT BACK
Heated/Cooled Front/Rear Seat / RH / From: EA000001 		- 1 Enquire
<66800B LR036827
PAD - REAR SEAT BACK
Heated/Cooled Front/Rear Seat / LH / To: DA999999 		- 1 Enquire
<66800B LR054019
PAD - REAR SEAT BACK
Heated/Cooled Front/Rear Seat / LH / From: EA000001 		- 1 Enquire
