Console - Floor (Front, For Carrier Assy, Internal Components) (Standard Wheelbase) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Console - Floor (Front, For Carrier Assy, Internal Components) (Standard Wheelbase)

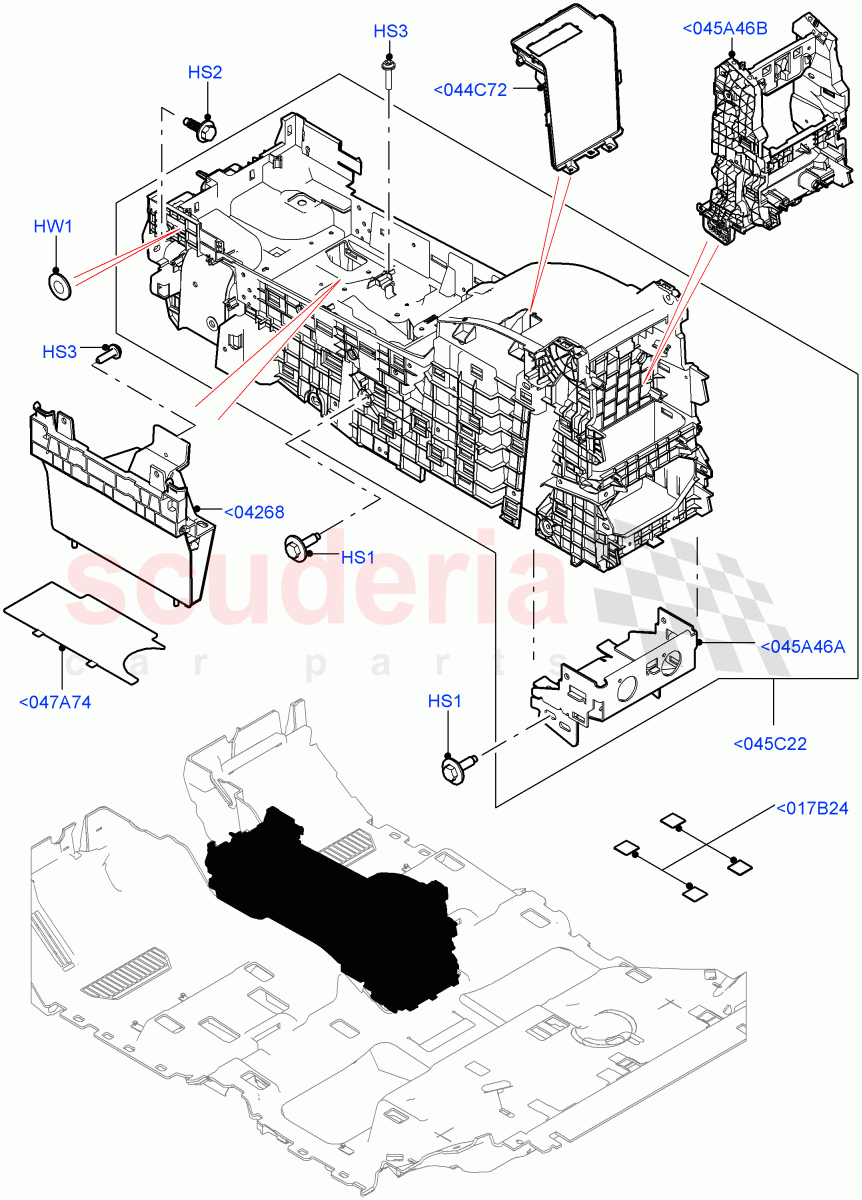

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	Enquire	To Order
	AYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036723	SCREW - OVAL HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008793	SCREW	Enquire	To Order
	LR008793	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065743	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099850	MOULDING - FLOOR CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AZB000020	SEAL - FLOOR - BLANKING	Enquire	To Order
	LR077375	SEAL - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099684	PANEL - CONSOLE	Enquire	To Order
	LR099684	PANEL - CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037621	CONSOLE - CENTRE FLOOR	Enquire	To Order
	LR037622	CONSOLE - CENTRE FLOOR	Enquire	To Order
	LR079155	CONSOLE - CENTRE FLOOR	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR099847	MAT - CONSOLE STOWAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039857	BRACKET - CONSOLE	Enquire	To Order
	LR039857	BRACKET - CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099682	BRACKET - CONSOLE	Enquire	To Order
	LR117604	BRACKET - CONSOLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<017B24	AZB000020	SEAL - FLOOR - BLANKING	AZB000020 SEAL - FLOOR - BLANKING With 60/40 Manual Fold Thru Rr Seat / Blanking, Floor / To: MA436330	-	4	Enquire
<017B24	LR077375	SEAL - SPECIAL	LR077375 SEAL - SPECIAL With 60/40 Power Fold Thru Rr Seat / Blanking, Floor / From: MA436331	-	4	Enquire
<044C72	LR099684	PANEL - CONSOLE	LR099684 PANEL - CONSOLE Less Front Cooler Box / From: JA000001 / To: JA999999	-	1	Enquire
<044C72	LR099684	PANEL - CONSOLE	LR099684 PANEL - CONSOLE Full Floor Console With Armrest / From: KA000001	-	1	Enquire
<045A46A	LR039857	BRACKET - CONSOLE	LR039857 BRACKET - CONSOLE To: GA999999	-	1	Enquire
<045A46A	LR039857	BRACKET - CONSOLE	LR039857 BRACKET - CONSOLE From: HA000001	-	1	Enquire
<045A46B	LR099682	BRACKET - CONSOLE	LR099682 BRACKET - CONSOLE From: JA000001 / To: JA506611	-	1	Enquire
<045A46B	LR117604	BRACKET - CONSOLE	LR117604 BRACKET - CONSOLE From: JA506612	-	1	Enquire
<045C22	LR037621	CONSOLE - CENTRE FLOOR	LR037621 CONSOLE - CENTRE FLOOR With Front Cooler Box / To: FA231246	-	1	Enquire
<045C22	LR037622	CONSOLE - CENTRE FLOOR	LR037622 CONSOLE - CENTRE FLOOR Less Front Cooler Box / To: FA231246	-	1	Enquire
<045C22	LR079155	CONSOLE - CENTRE FLOOR	LR079155 CONSOLE - CENTRE FLOOR With Front Cooler Box / From: FA231247 / To: GA999999	-	1	Enquire
<045C22	LR079156	CONSOLE - CENTRE FLOOR	LR079156 CONSOLE - CENTRE FLOOR Less Front Cooler Box / From: FA231247 / To: GA999999	-	1	Enquire
<045C22	LR079155	CONSOLE - CENTRE FLOOR	LR079155 CONSOLE - CENTRE FLOOR With Front Cooler Box / From: HA000001 / To: HA999999	-	1	Enquire
<045C22	LR079156	CONSOLE - CENTRE FLOOR	LR079156 CONSOLE - CENTRE FLOOR Less Front Cooler Box / From: HA000001 / To: HA999999	-	1	Enquire
<045C22	LR099685	CONSOLE - CENTRE FLOOR	LR099685 CONSOLE - CENTRE FLOOR Integrated ROW 1 Fridge, Less Smokers Package / From: JA000001 / To: JA999999	-	1	Enquire
<045C22	LR099686	CONSOLE - CENTRE FLOOR	LR099686 CONSOLE - CENTRE FLOOR Less Front Cooler Box, Less Smokers Package / From: JA000001 / To: JA999999	-	1	Enquire
<045C22	LR101678	CONSOLE - CENTRE FLOOR	LR101678 CONSOLE - CENTRE FLOOR Less Front Cooler Box, With Smokers Package / From: JA000001 / To: JA999999	-	1	Enquire
<045C22	LR099685	CONSOLE - CENTRE FLOOR	LR099685 CONSOLE - CENTRE FLOOR Console-W/Armrest + Fridge, Less Smokers Package / From: KA000001	-	1	Enquire
<045C22	LR099686	CONSOLE - CENTRE FLOOR	LR099686 CONSOLE - CENTRE FLOOR Full Floor Console With Armrest, Less Smokers Package / From: KA000001	-	1	Enquire
<045C22	LR101678	CONSOLE - CENTRE FLOOR	LR101678 CONSOLE - CENTRE FLOOR Full Floor Console With Armrest, Rows 1 & 2 Smokers Package / From: KA000001	-	1	Enquire
<045C22	LR101677	CONSOLE - CENTRE FLOOR	LR101677 CONSOLE - CENTRE FLOOR Rows 1 & 2 Smokers Package, With Front Cooler Box / From: JA000001 / To: JA999999	-	1	Enquire
<045C22	LR101677	CONSOLE - CENTRE FLOOR	LR101677 CONSOLE - CENTRE FLOOR Console-w/Armrest + Cooler Box, With Smokers Package / From: KA000001	-	1	Enquire
<047A74	LR099847	MAT - CONSOLE STOWAGE	LR099847 MAT - CONSOLE STOWAGE From: JA000001	-	1	Enquire
<04268	LR099850	MOULDING - FLOOR CONSOLE	LR099850 MOULDING - FLOOR CONSOLE Divider / From: JA000001	-	1	Enquire
HS1	AYP500110	SCREW	AYP500110 SCREW Bolt And Washer, Bracket To Floor, Hexagonal Head, M6 X 20MM	-	4	Enquire
HS1	AYP500110	SCREW	AYP500110 SCREW Bolt And Washer, Bracket To Console, Hexagonal Head, M6 X 20MM	-	2	Enquire
HS2	LR036723	SCREW - OVAL HEAD	LR036723 SCREW - OVAL HEAD 6 X 1.42 X 16, Console, Front	-	2	Enquire
HS3	LR008793	SCREW	LR008793 SCREW Console, M5 X 16MM, Torx	-	10	Enquire
HS3	LR008793	SCREW	LR008793 SCREW Divider, M5 X 16MM, Torx / From: JA000001	-	5	Enquire
HW1	LR065743	WASHER	LR065743 WASHER Center Console / To: DA164549	-	1	Enquire
