Name: Fuel Lines (Rear, Middle East And North Africa (MENA) Markets) (5.0L OHC SGDI NA V8 Petrol - AJ133, EU2, Narrow Filler Neck - Unleaded) ((V) FROMGA000001, (V) TOJA999999)
Rating: 5.0 (1 reviews)

Fuel Lines (Rear, Middle East And North Africa (MENA) Markets) (5.0L OHC SGDI NA V8 Petrol - AJ133, EU2, Narrow Filler Neck - Unleaded) ((V) FROMGA000001, (V) TOJA999999) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Fuel Lines (Rear, Middle East And North Africa (MENA) Markets) (5.0L OHC SGDI NA V8 Petrol - AJ133,...

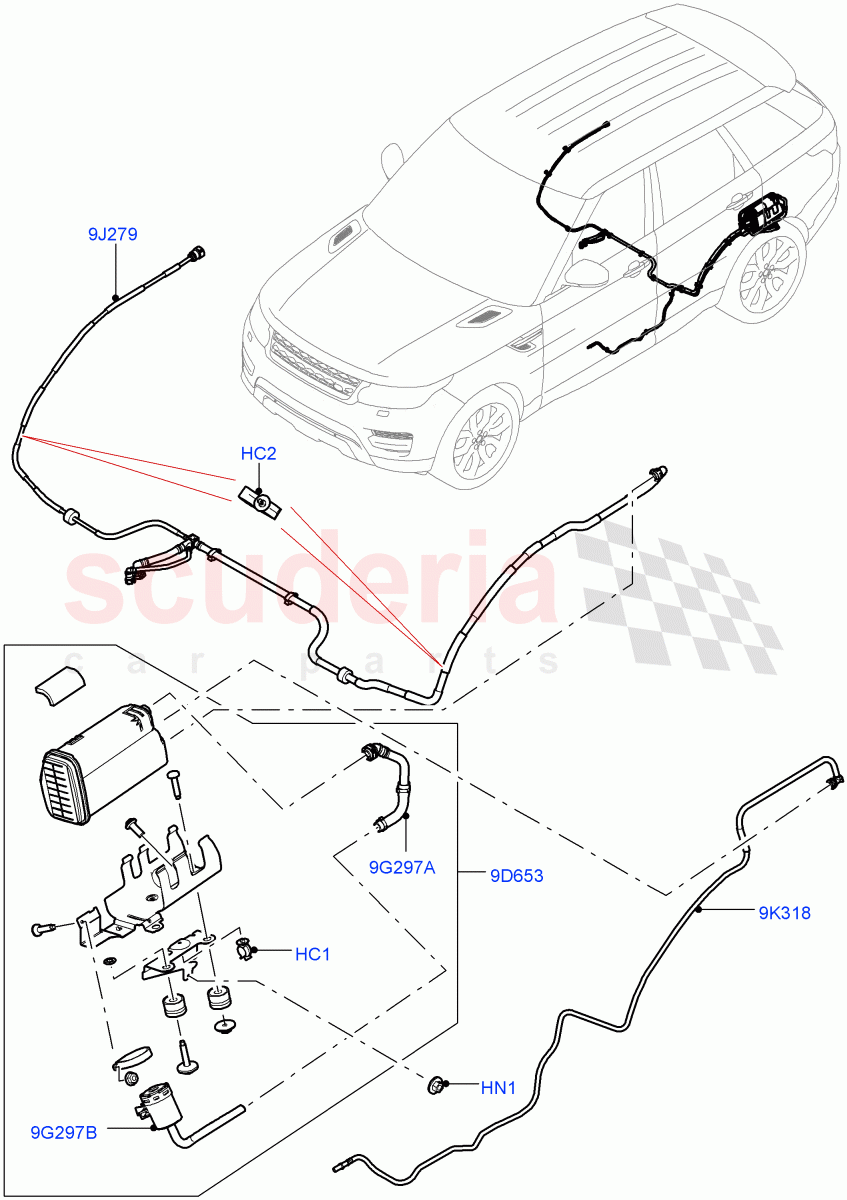

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	PEK500120	CLIP - HOSE	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	$4.23	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	$2.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR080111	RESERVOIR - FUEL VAPOUR SYSTEM	$571.62	To Order
	LR082334	RESERVOIR - FUEL VAPOUR SYSTEM	$571.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086515	TUBE - VENTILATION	$62.36	To Order
	LR072670	TUBE - VENTILATION	$60.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061015	TUBE - FUEL VAPOUR	$35.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082335	HOSE - FUEL	$47.94	To Order
	LR079267	HOSE - FUEL	$69.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079268	HOSE - FUEL	$66.12	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	PEK500120	CLIP - HOSE	PEK500120 CLIP - HOSE From: GA000001	$2.63	2
HC2	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Plastic / From: GA000001	$4.23	4
HN1	RYH500310	NUT AND WASHER - HEX. IN STOCK	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: GA000001 IN STOCK	$2.97	2
9D653	LR080111	RESERVOIR - FUEL VAPOUR SYSTEM	LR080111 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket / From: GA000001 / To: GA275716	$571.62	1
9D653	LR082334	RESERVOIR - FUEL VAPOUR SYSTEM	LR082334 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket / From: GA275717	$571.62	1
9G297A	LR082335	HOSE - FUEL	LR082335 HOSE - FUEL Canister vent / From: GA275717	$47.94	1
9G297A	LR079267	HOSE - FUEL	LR079267 HOSE - FUEL Canister vent / From: GA000001 / To: GA275716	$69.32	1
9G297B	LR079268	HOSE - FUEL	LR079268 HOSE - FUEL Canister vent / From: GA000001	$66.12	1
9J279	LR086515	TUBE - VENTILATION	LR086515 TUBE - VENTILATION Fuel Tank Ventilation Pipe, Purge Line From Fuel Tank To Charcoal Canister / From: HA000001	$62.36	1
9J279	LR072670	TUBE - VENTILATION	LR072670 TUBE - VENTILATION Fuel Tank Ventilation Pipe, Purge Line From Fuel Tank To Charcoal Canister / From: GA000001 / To: GA999999	$60.36	1
9K318	LR061015	TUBE - FUEL VAPOUR	LR061015 TUBE - FUEL VAPOUR Fuel Vapor Cannister Purge - Outlet / From: GA000001	$35.50	1
