Fuel Injection Pump-Engine Mounted (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Fuel Injection Pump-Engine Mounted (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011270 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR011208 TAPPET - FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR010861 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR035527 PUMP - FUEL Enquire To Order
LR081595 PUMP - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR011570 ACOUSTIC COVER - FUEL PUMP Enquire To Order
LR060131 ACOUSTIC COVER - FUEL PUMP Enquire To Order
View All

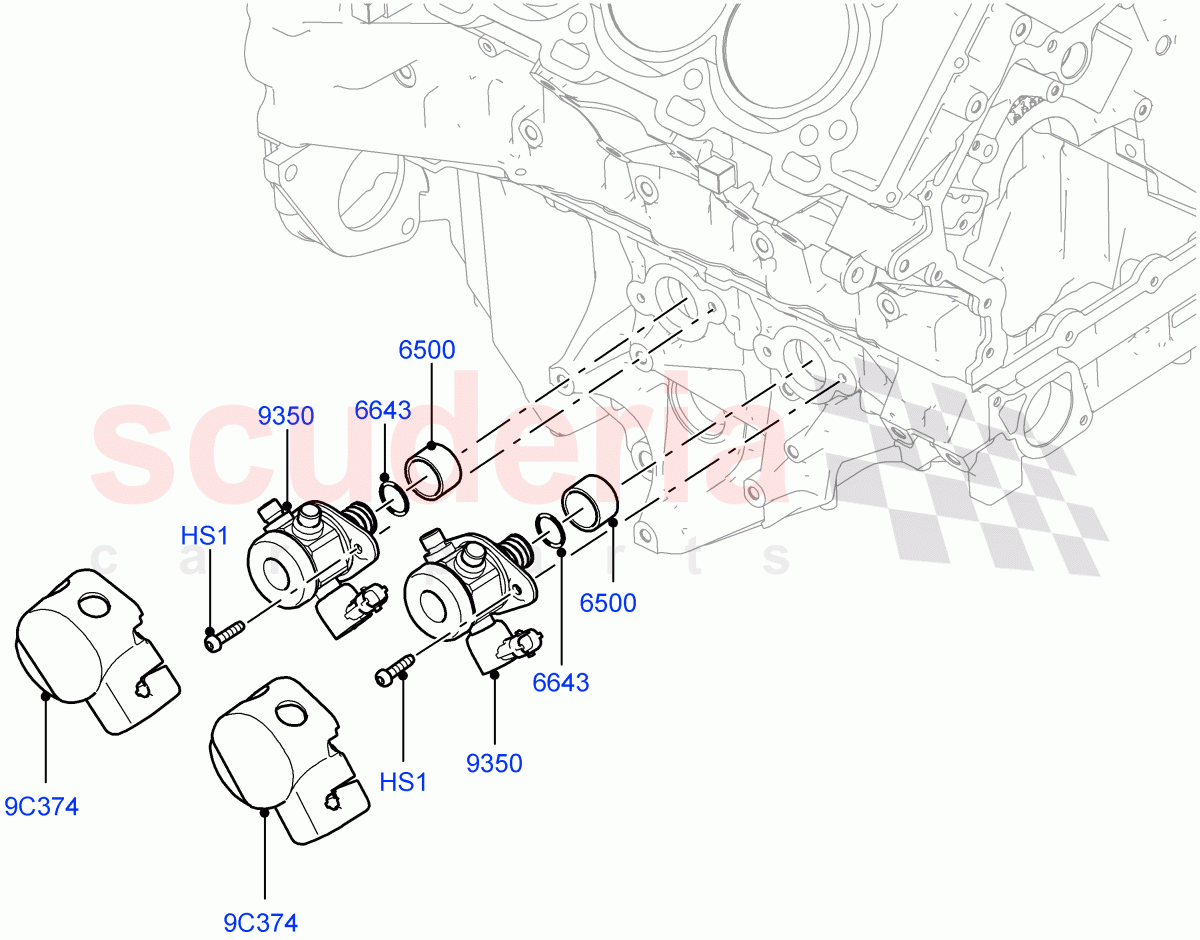

Fuel Injection Pump-Engine Mounted (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR011270
SCREW
For Fuel Pump, M6 x 25MM, Torx 		- 4 Enquire
9C374 LR011570
ACOUSTIC COVER - FUEL PUMP
To: EA181115 		- 2 Enquire
9C374 LR060131
ACOUSTIC COVER - FUEL PUMP
From: EA181116 / To: FA999999 		- 2 Enquire
6500 LR011208
TAPPET - FUEL PUMP
For Fuel Pump 		- 2 Enquire
6643 LR010861
O-RING
31MM X 2MM, For Fuel Pump 		- 2 Enquire
9350 LR035527
PUMP - FUEL
To: EA185903 		- 2 Enquire
9350 LR081595
PUMP - FUEL
From: EA185904 		- 2 Enquire
