Name: Oil Pan/Oil Level Indicator (5.0L OHC SGDI NA V8 Petrol - AJ133)
Rating: 4.8 (1 reviews)

View All

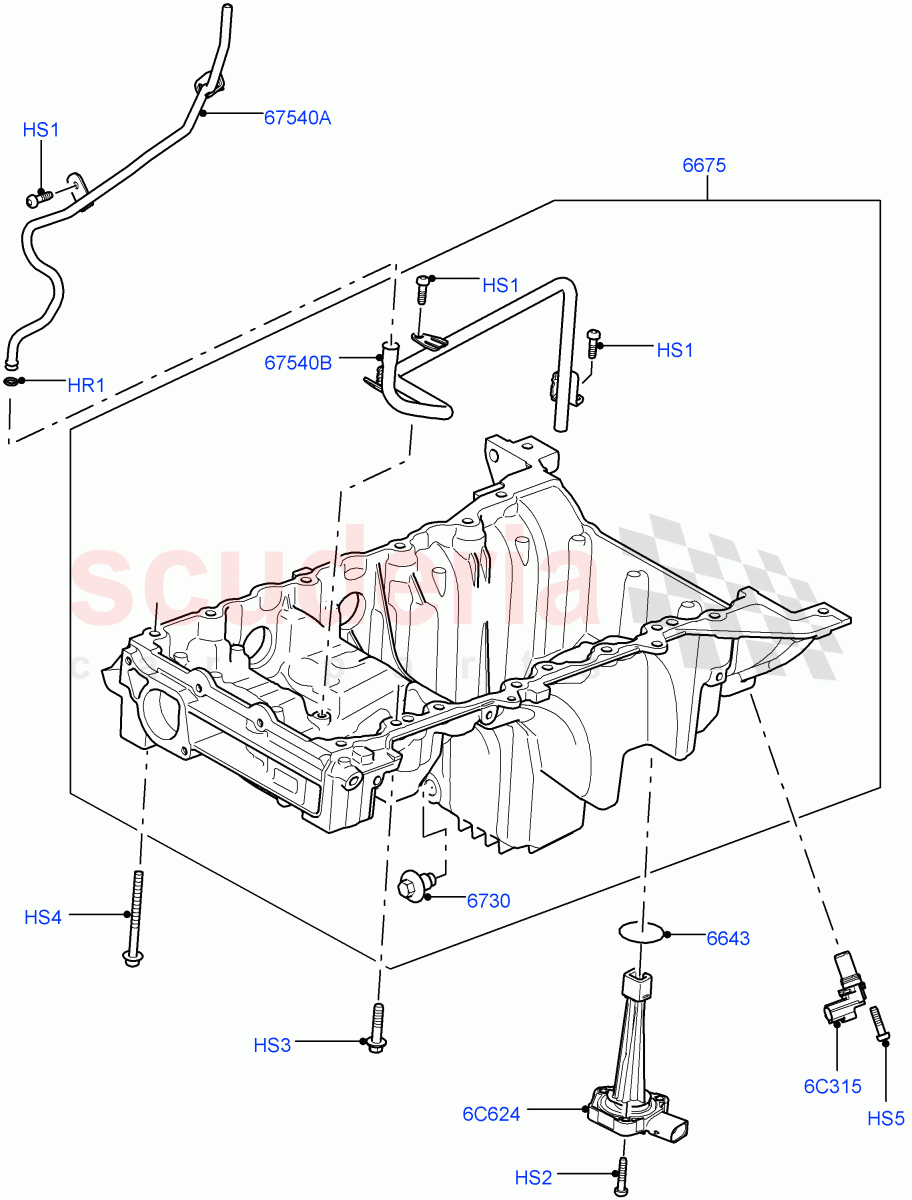

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011206	O-RING	$5.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011267	SCREW	$1.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011271	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011700	SCREW	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011274	SCREW	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR006867	O-RING	$15.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035934	PAN - ENGINE OIL	$712.57	To Order

Photo	Part No	Description	Price (each)	Stock
	4594914	PLUG - OIL DRAIN	$5.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035561	SENSOR - CRANKSHAFT POSITION - CPS	$111.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012640	SENSOR - OIL LEVEL	$85.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010727	TUBE - OIL EXTRACTION	$42.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011312	TUBE - OIL	$48.18	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR011206	O-RING	LR011206 O-RING Tube - Oil Extraction	$5.40	1
HS1	LR011267	SCREW IN STOCK	LR011267 SCREW M6 X 20MM IN STOCK	$1.00	4
HS2	LR011271	SCREW IN STOCK	LR011271 SCREW M6 x 30MM, Sensor - Oil Level IN STOCK	$1.19	3
HS3	LR011700	SCREW IN STOCK	LR011700 SCREW M8 X 35MM, Oil Pan IN STOCK	$1.34	10
HS4	LR011274	SCREW	LR011274 SCREW Oil Pan	$2.49	6
HS5	LR011270	SCREW IN STOCK	LR011270 SCREW 5.0L P AJ133 DOHC CDA S/C Enhanced / M6 x 25MM, To Crankshaft Sensor, Torx IN STOCK	$1.19	1
6C315	LR035561	SENSOR - CRANKSHAFT POSITION - CPS	LR035561 SENSOR - CRANKSHAFT POSITION - CPS	$111.28	1
6C624	LR012640	SENSOR - OIL LEVEL	LR012640 SENSOR - OIL LEVEL	$85.24	1
6643	LR006867	O-RING	LR006867 O-RING Sensor - Oil Level	$15.61	1
6675	LR035934	PAN - ENGINE OIL	LR035934 PAN - ENGINE OIL	$712.57	1
6730	4594914	PLUG - OIL DRAIN	4594914 PLUG - OIL DRAIN M14 X 1.5	$5.32	1
67540A	LR010727	TUBE - OIL EXTRACTION	LR010727 TUBE - OIL EXTRACTION Upper	$42.94	1
67540B	LR011312	TUBE - OIL	LR011312 TUBE - OIL Lower	$48.18	1

Oil Pan/Oil Level Indicator (5.0L Ohc Sgdi Na V8 Petrol - Aj133)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]
