Radiator/Coolant Overflow Container (5.0L OHC SGDI NA V8 Petrol - AJ133) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Radiator/Coolant Overflow Container (5.0L OHC SGDI NA V8 Petrol - AJ133)

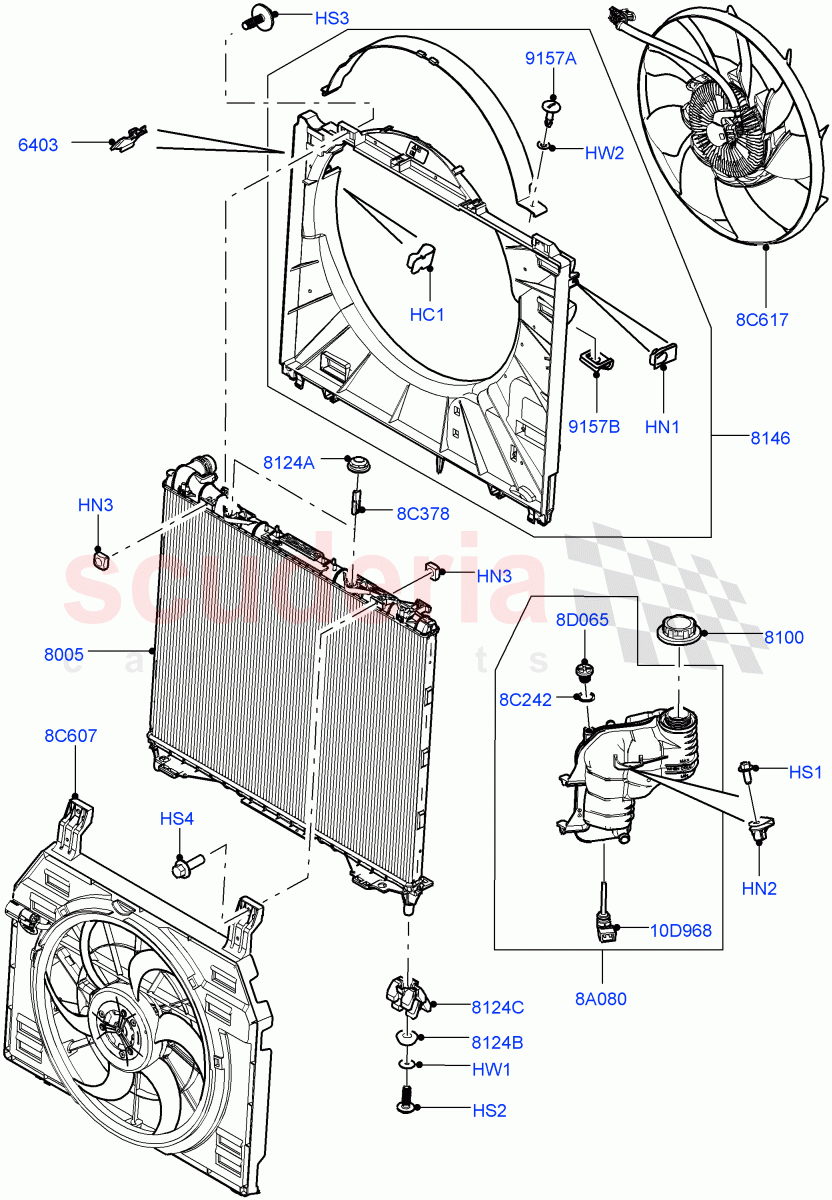

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR053660	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038068	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040736	NUT - SQUARE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500170	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038052	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033039	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYF500090	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYF100830	WASHER - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039009	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR162110	RADIATOR	Enquire	To Order
	LR162110	RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR176861	CAP - OVERFLOW CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036525	SHROUD - RADIATOR FAN	Enquire	To Order
	LR057118	SHROUD - RADIATOR FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PDI500012	INSULATOR - RADIATOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034569	INSULATOR - RADIATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034565	INSULATOR - RADIATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR181676	TANK - RADIATOR OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007315	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034571	PIN - RADIATOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036523	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order
	LR069901	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order
	LR084438	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012645	FAN AND MOTOR	Enquire	To Order
	LR095536	FAN AND MOTOR	Enquire	To Order
	LR112861	FAN AND MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007314	VALVE - BLEEDER SCREW	Enquire	To Order
	LR055301	VALVE - BLEEDER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR6461	FASTENER - SCREW TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EZM000110	FASTENER - COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCJ500030	SENSOR - COOLANT LEVEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR053660	CLIP - RETAINING	LR053660 CLIP - RETAINING Retainer	-	1	Enquire
HN1	LR000053	NUT - FLANGED	LR000053 NUT - FLANGED M6	-	3	Enquire
HN2	LR038068	NUT - SPECIAL	LR038068 NUT - SPECIAL Expansion Tank, Nut U Spring M6 Push On	-	1	Enquire
HN3	LR040736	NUT - SQUARE	LR040736 NUT - SQUARE M6, Square	-	4	Enquire
HS1	BYP500170	SCREW	BYP500170 SCREW Hexagonal Head, M6 x 14MM	-	1	Enquire
HS2	LR038052	SCREW	LR038052 SCREW 8 x 24MM, Torx	-	2	Enquire
HS3	LR033039	SCREW AND WASHER - HEX HEAD	LR033039 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 x 19MM	-	2	Enquire
HS4	FS106206	SCREW	FS106206 SCREW HEX Flange, Hexagonal Head, M6 X 20MM	-	2	Enquire
HW1	VYF500090	WASHER	VYF500090 WASHER 8.4 X 31 X 1.6	-	2	Enquire
HW2	PYF100830	WASHER - PLASTIC	PYF100830 WASHER - PLASTIC Plastic	-	1	Enquire
8A080	LR181676	TANK - RADIATOR OVERFLOW	LR181676 TANK - RADIATOR OVERFLOW	-	1	Enquire
8C242	LR007315	SEAL	LR007315 SEAL Bleeder Screw	-	1	Enquire
8C378	LR034571	PIN - RADIATOR MOUNTING	LR034571 PIN - RADIATOR MOUNTING Radiator Mounting, Upper	-	2	Enquire
8C607	LR036523	MOTOR AND FAN - ENGINE COOLING	LR036523 MOTOR AND FAN - ENGINE COOLING Air Conditioning Condenser / To: EA181622	-	1	Enquire
8C607	LR069901	MOTOR AND FAN - ENGINE COOLING	LR069901 MOTOR AND FAN - ENGINE COOLING Viscous Cooling Fan With Condenser / Air Conditioning Condenser / From: EA181623 / To: GA271462	-	1	Enquire
8C607	LR084438	MOTOR AND FAN - ENGINE COOLING	LR084438 MOTOR AND FAN - ENGINE COOLING Viscous Cooling Fan With Condenser / Air Conditioning Condenser / From: GA271463 / To: GA999999	-	1	Enquire
8C607	LR081688	MOTOR AND FAN - ENGINE COOLING	LR081688 MOTOR AND FAN - ENGINE COOLING Viscous Cooling Fan With Condenser / Air Conditioning Condenser / From: HA000001 / To: KA549509	-	1	Enquire
8C607	LR125203	MOTOR AND FAN - ENGINE COOLING	LR125203 MOTOR AND FAN - ENGINE COOLING Viscous Cooling Fan With Condenser / Air Conditioning Condenser / From: KA549510 / To: MA420644	-	1	Enquire
8C607	LR146883	MOTOR AND FAN - ENGINE COOLING	LR146883 MOTOR AND FAN - ENGINE COOLING Viscous Cooling Fan With Condenser / Air Conditioning Condenser / From: MA420645	-	1	Enquire
8C617	LR012645	FAN AND MOTOR	LR012645 FAN AND MOTOR To: HA337882	-	1	Enquire
8C617	LR095536	FAN AND MOTOR	LR095536 FAN AND MOTOR From: HA337883 / To: HA380054	-	1	Enquire
8C617	LR112861	FAN AND MOTOR	LR112861 FAN AND MOTOR From: HA380055	-	1	Enquire
8D065	LR007314	VALVE - BLEEDER SCREW	LR007314 VALVE - BLEEDER SCREW Bleeder Screw / To: EA139999	-	1	Enquire
8D065	LR055301	VALVE - BLEEDER SCREW	LR055301 VALVE - BLEEDER SCREW Bleeder Screw / From: EA140000	-	1	Enquire
10D968	PCJ500030	SENSOR - COOLANT LEVEL	PCJ500030 SENSOR - COOLANT LEVEL	-	1	Enquire
6403	LR039009	PLUG	LR039009 PLUG Located At Fan Shroud	-	1	Enquire
8005	LR162110	RADIATOR	LR162110 RADIATOR To: MA453053	-	1	Enquire
8005	LR162110	RADIATOR	LR162110 RADIATOR From: MA453054	-	1	Enquire
8100	LR176861	CAP - OVERFLOW CONTAINER	LR176861 CAP - OVERFLOW CONTAINER	-	1	Enquire
8124A	PDI500012	INSULATOR - RADIATOR MOUNTING	PDI500012 INSULATOR - RADIATOR MOUNTING Radiator Mounting, Top	-	2	Enquire
8124B	LR034569	INSULATOR - RADIATOR SUPPORT	LR034569 INSULATOR - RADIATOR SUPPORT Lower	-	2	Enquire
8124C	LR034565	INSULATOR - RADIATOR SUPPORT	LR034565 INSULATOR - RADIATOR SUPPORT Radiator Support	-	2	Enquire
8146	LR036525	SHROUD - RADIATOR FAN	LR036525 SHROUD - RADIATOR FAN Upper And Lower / To: EA136920	-	1	Enquire
8146	LR057118	SHROUD - RADIATOR FAN	LR057118 SHROUD - RADIATOR FAN Upper And Lower / From: EA136921	-	1	Enquire
9157A	ANR6461	FASTENER - SCREW TYPE	ANR6461 FASTENER - SCREW TYPE Screw Type	-	1	Enquire
9157B	EZM000110	FASTENER - COVER	EZM000110 FASTENER - COVER Retainer	-	1	Enquire
