Transfer Drive Components (Solihull Plant Build) (With 2 Spd Trans Case With Ctl Trac) ((V) FROMHA000001) of Land Rover Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Transfer Drive Components (Solihull Plant Build) (With 2 Spd Trans Case With Ctl Trac) ((V)...

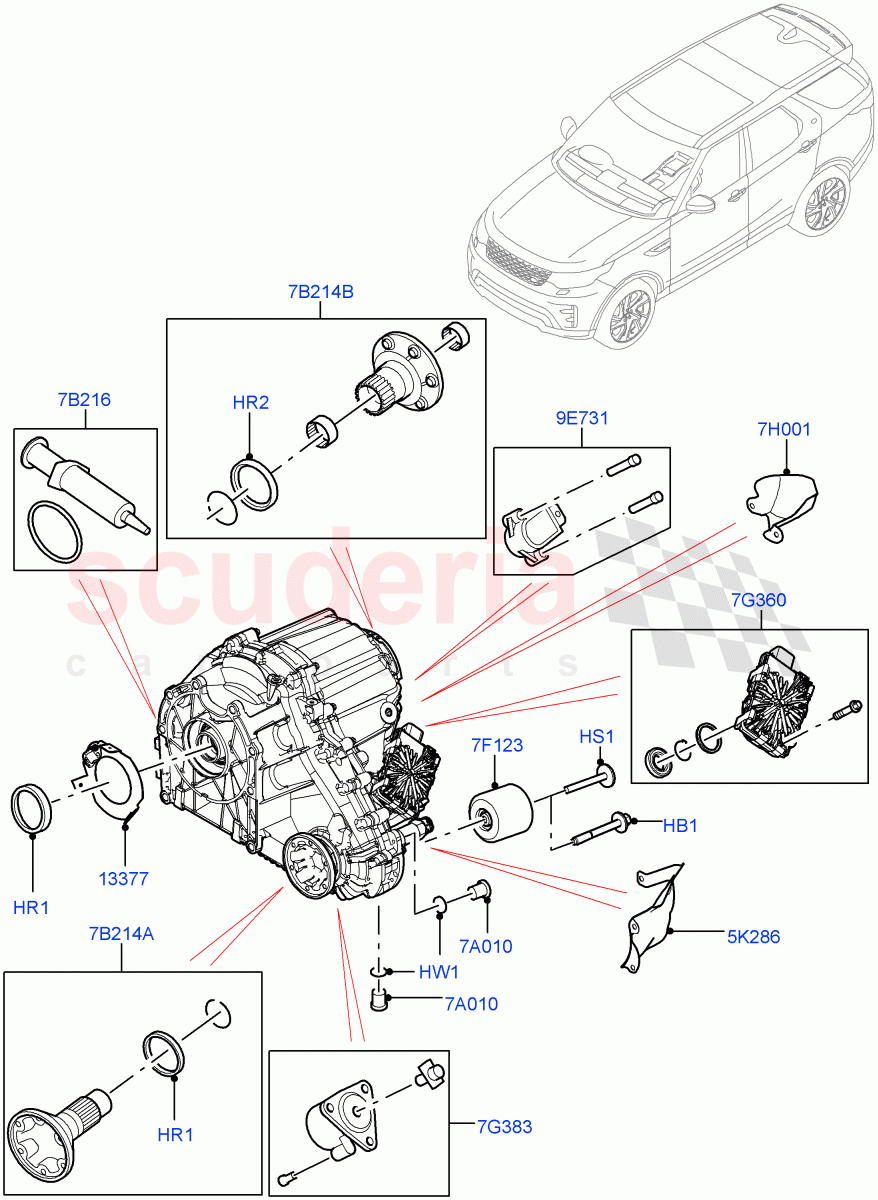

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR126162	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086041	SEAL - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086042	SEAL - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYP500080	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYF500030	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086473	UNIT - GROUNDING	Enquire	To Order
	LR086473	UNIT - GROUNDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082660	HEAT SHIELD - TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYB500020	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYX500050	KIT - GREASE AND ORING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094511	DAMPER - VIBRATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087396	MODULE - TRANSFER BOX	Enquire	To Order
	LR117069	MODULE - TRANSFER BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IGF500011	SOLENOID - ELECTRONIC PRESSURE CTL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082661	HEAT SHIELD - TRANSFER CASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111510	SENSOR - TRIPMINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101968	FLANGE - PROPSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101969	KIT - FLANGE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR126162	BOLT - HEX.HEAD	LR126162 BOLT - HEX.HEAD Bolt And Washer, M10 X 80MM / From: KA547260	-	1	Enquire
HR1	LR086041	SEAL - SPECIAL	LR086041 SEAL - SPECIAL Seal / From: HA000001	-	1	Enquire
HR2	LR086042	SEAL - SPECIAL	LR086042 SEAL - SPECIAL Seal, Oil - Rear Output Flange / From: HA000001	-	1	Enquire
HS1	IYP500080	SCREW	IYP500080 SCREW Bolt And Washer, M10 X 80MM / From: HA000001 / To: KA547259	-	1	Enquire
HW1	IYF500030	WASHER	IYF500030 WASHER M16, Plug - Oil Drain / From: HA000001	-	2	Enquire
5K286	LR082660	HEAT SHIELD - TRANSMISSION	LR082660 HEAT SHIELD - TRANSMISSION With 2 Spd Trans Case With Ctl Trac / From: HA000001	-	1	Enquire
7A010	IYB500020	PLUG - OIL DRAIN	IYB500020 PLUG - OIL DRAIN With 2 Spd Trans Case With Ctl Trac / Drain, FILLER, M16 / From: HA000001	-	2	Enquire
7B214A	LR101968	FLANGE - PROPSHAFT	LR101968 FLANGE - PROPSHAFT With 2 Spd Trans Case With Ctl Trac / Front, Propshaft / From: HA000001	-	1	Enquire
7B214B	LR101969	KIT - FLANGE	LR101969 KIT - FLANGE With 2 Spd Trans Case With Ctl Trac / Propshaft, Rear / From: HA000001	-	1	Enquire
7B216	IYX500050	KIT - GREASE AND ORING	IYX500050 KIT - GREASE AND ORING From: HA000001	-	1	Enquire
7F123	LR094511	DAMPER - VIBRATION	LR094511 DAMPER - VIBRATION From: HA000001	-	1	Enquire
7G360	LR087396	MODULE - TRANSFER BOX	LR087396 MODULE - TRANSFER BOX From: HA000001 / To: JA399340	-	1	Enquire
7G360	LR117069	MODULE - TRANSFER BOX	LR117069 MODULE - TRANSFER BOX From: JA399341	-	1	Enquire
7G383	IGF500011	SOLENOID - ELECTRONIC PRESSURE CTL	IGF500011 SOLENOID - ELECTRONIC PRESSURE CTL From: HA000001	-	1	Enquire
7H001	LR082661	HEAT SHIELD - TRANSFER CASE	LR082661 HEAT SHIELD - TRANSFER CASE From: HA000001	-	1	Enquire
9E731	LR111510	SENSOR - TRIPMINDER	LR111510 SENSOR - TRIPMINDER High/Low Position Sensor / From: HA000001	-	1	Enquire
13377	LR086473	UNIT - GROUNDING	LR086473 UNIT - GROUNDING 3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, With 2 Spd Trans Case With Ctl Trac / From: HA000001	-	1	Enquire
13377	LR086473	UNIT - GROUNDING	LR086473 UNIT - GROUNDING 2.0L AJ200P Hi PHEV / From: JA000001	-	1	Enquire
