Name: Thermostat/Housing & Related Parts (4.4L DOHC DITC V8 Diesel)
Rating: 5.0 (1 reviews)

View All

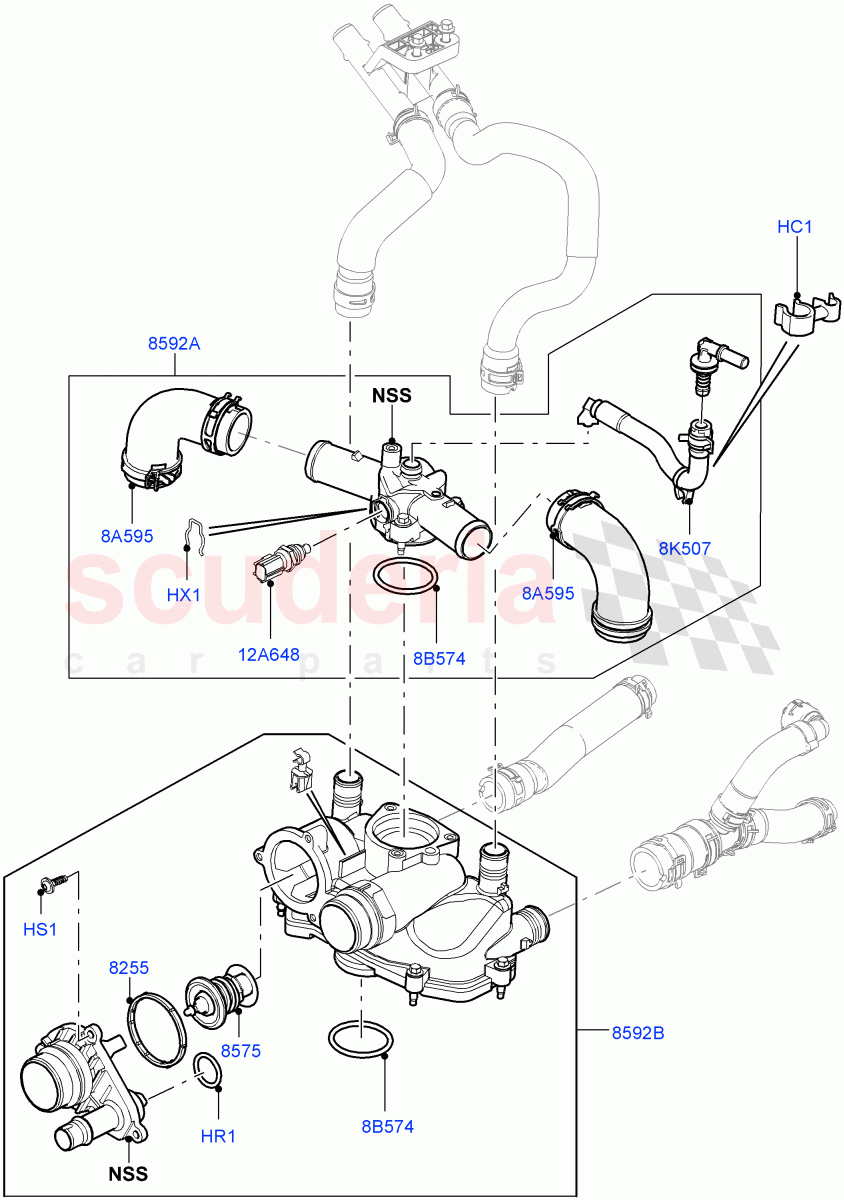

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006015	CLIP	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023137	RING - SEALING	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004615	SCREW	$5.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003602	RETAINER	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023141	GASKET - THERMOSTAT	$3.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023138	THERMOSTAT	$30.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036058	CONNECTION - WATER OUTLET	$108.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR023144	HOSE - WATER OUTLET	$19.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023145	O-RING	$1.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR023142	HOSE - COOLANT BLEED	$20.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR044930	SENSOR - ENGINE COOLANT TEMPERATURE	$58.42	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR006015	CLIP	LR006015 CLIP	$0.63	1
HR1	LR023137	RING - SEALING	LR023137 RING - SEALING Cover, Thermostat Assy	$0.53	1
HS1	LR004615	SCREW	LR004615 SCREW 6 x 20	$5.05	4
HX1	LR003602	RETAINER	LR003602 RETAINER Clip, Coolant Temperature Sensor	$1.16	1
8A595	LR023144	HOSE - WATER OUTLET	LR023144 HOSE - WATER OUTLET To Cylinder Head	$19.90	2
8B574	LR023145	O-RING IN STOCK	LR023145 O-RING Bottom, Thermostat Housing IN STOCK	$1.08	2
8K507	LR023142	HOSE - COOLANT BLEED IN STOCK	LR023142 HOSE - COOLANT BLEED Cooling System Bleed IN STOCK	$20.02	1
12A648	LR044930	SENSOR - ENGINE COOLANT TEMPERATURE	LR044930 SENSOR - ENGINE COOLANT TEMPERATURE	$58.42	1
8255	LR023141	GASKET - THERMOSTAT	LR023141 GASKET - THERMOSTAT Thermostat Assy	$3.12	1
8575	LR023138	THERMOSTAT	LR023138 THERMOSTAT	$30.92	1
8592A	LR036058	CONNECTION - WATER OUTLET IN STOCK	LR036058 CONNECTION - WATER OUTLET Upper IN STOCK	$108.63	1
8592B	LR186860	CONNECTION - WATER OUTLET IN STOCK	LR186860 CONNECTION - WATER OUTLET Lower / To: FA999999 IN STOCK	$175.49	1
8592B	LR186860	CONNECTION - WATER OUTLET IN STOCK	LR186860 CONNECTION - WATER OUTLET Lower / From: GA000001 IN STOCK	$175.49	1

Thermostat/Housing & Related Parts (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]
