Air Cleaner (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Air Cleaner (4.4L DOHC DITC V8 Diesel)

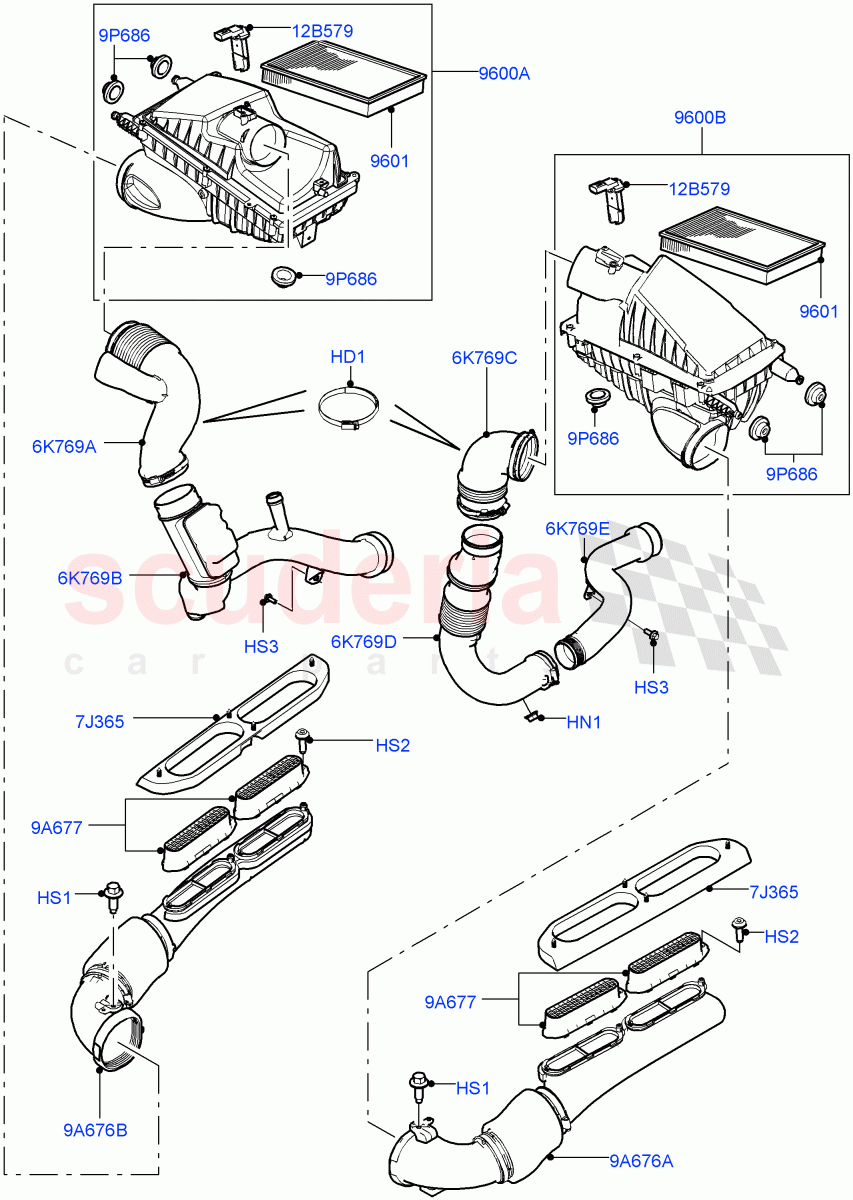

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR023238	CLAMP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008793	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500360	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161843	FILTER - AIR CLEANER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111065	GUIDE - DIRTY AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036425	CLEANER - AIR	Enquire	To Order
	LR095795	CLEANER - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036426	CLEANER - AIR	Enquire	To Order
	LR095790	CLEANER - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036450	GRILLE - DIRTY AIR DUCT	Enquire	To Order
	LR113348	GRILLE - DIRTY AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000753	INSULATOR - AIR CLEANER HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029074	SENSOR - MASS AIR FLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036471	DUCT - CLEAN AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036469	DUCT - CLEAN AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030209	DUCT - AIR INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036468	DUCT - CLEAN AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036467	DUCT - CLEAN AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036447	DUCT - DIRTY AIR	Enquire	To Order
	LR045407	DUCT - DIRTY AIR	Enquire	To Order
	LR049314	MOULDING - SNOW INGRESS PROTECTOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR036451	DUCT - DIRTY AIR	Enquire	To Order
	LR045408	DUCT - DIRTY AIR	Enquire	To Order
	LR049313	DUCT - DIRTY AIR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HD1	LR023238	CLAMP - HOSE	LR023238 CLAMP - HOSE	-	4	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6	-	1	Enquire
HS1	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM	-	4	Enquire
HS2	LR008793	SCREW	LR008793 SCREW M5 X 16MM, Torx	-	4	Enquire
HS3	KYP500360	SCREW	KYP500360 SCREW Air Duct Support, M6 X 20MM	-	3	Enquire
6K769A	LR036471	DUCT - CLEAN AIR	LR036471 DUCT - CLEAN AIR Air Cleaner Outlet, Elbow Connector, RH Upper	-	1	Enquire
6K769B	LR036469	DUCT - CLEAN AIR	LR036469 DUCT - CLEAN AIR RH Lower, Turbocharger Inlet	-	1	Enquire
6K769C	LR030209	DUCT - AIR INTAKE	LR030209 DUCT - AIR INTAKE Air Cleaner Outlet, Elbow Connector, LH Upper	-	1	Enquire
6K769D	LR036468	DUCT - CLEAN AIR	LR036468 DUCT - CLEAN AIR LH, Air Cleaner To Turbocharger	-	1	Enquire
6K769E	LR036467	DUCT - CLEAN AIR	LR036467 DUCT - CLEAN AIR LH Lower, Turbocharger Inlet	-	1	Enquire
7J365	LR111065	GUIDE - DIRTY AIR DUCT	LR111065 GUIDE - DIRTY AIR DUCT Dirty Air Duct, Mounted To Hood	-	2	Enquire
9A676A	LR036447	DUCT - DIRTY AIR	LR036447 DUCT - DIRTY AIR LH / To: DA104444	-	1	Enquire
9A676A	LR045407	DUCT - DIRTY AIR	LR045407 DUCT - DIRTY AIR LH / From: DA104445 / To: EA133086	-	1	Enquire
9A676A	LR049314	MOULDING - SNOW INGRESS PROTECTOR	LR049314 MOULDING - SNOW INGRESS PROTECTOR LH / From: EA133087 / To: HA364606	-	1	Enquire
9A676A	LR100435	DUCT - DIRTY AIR	LR100435 DUCT - DIRTY AIR LH / From: HA364607	-	1	Enquire
9A676B	LR036451	DUCT - DIRTY AIR	LR036451 DUCT - DIRTY AIR RH / To: DA104444	-	1	Enquire
9A676B	LR045408	DUCT - DIRTY AIR	LR045408 DUCT - DIRTY AIR RH / From: DA104445 / To: EA133086	-	1	Enquire
9A676B	LR049313	DUCT - DIRTY AIR	LR049313 DUCT - DIRTY AIR RH / From: EA133087	-	1	Enquire
9A677	LR036450	GRILLE - DIRTY AIR DUCT	LR036450 GRILLE - DIRTY AIR DUCT To: HA999999	-	4	Enquire
9A677	LR113348	GRILLE - DIRTY AIR DUCT	LR113348 GRILLE - DIRTY AIR DUCT From: JA000001	-	4	Enquire
9P686	LR000753	INSULATOR - AIR CLEANER HOUSING	LR000753 INSULATOR - AIR CLEANER HOUSING Air Cleaner Box Holdown	-	6	Enquire
12B579	LR029074	SENSOR - MASS AIR FLOW	LR029074 SENSOR - MASS AIR FLOW Mass Air Flow Sensor	-	2	Enquire
9600A	LR036425	CLEANER - AIR	LR036425 CLEANER - AIR RH / To: HA347612	-	1	Enquire
9600A	LR095795	CLEANER - AIR	LR095795 CLEANER - AIR RH / From: HA347613	-	1	Enquire
9600B	LR036426	CLEANER - AIR	LR036426 CLEANER - AIR LH / To: HA347612	-	1	Enquire
9600B	LR095790	CLEANER - AIR	LR095790 CLEANER - AIR LH / From: HA347613	-	1	Enquire
9601	LR161843	FILTER - AIR CLEANER	LR161843 FILTER - AIR CLEANER	-	2	Enquire

Air Cleaner (4.4L DOHC DITC V8 Diesel)
