Inlet Manifold (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Inlet Manifold (4.4L DOHC DITC V8 Diesel)

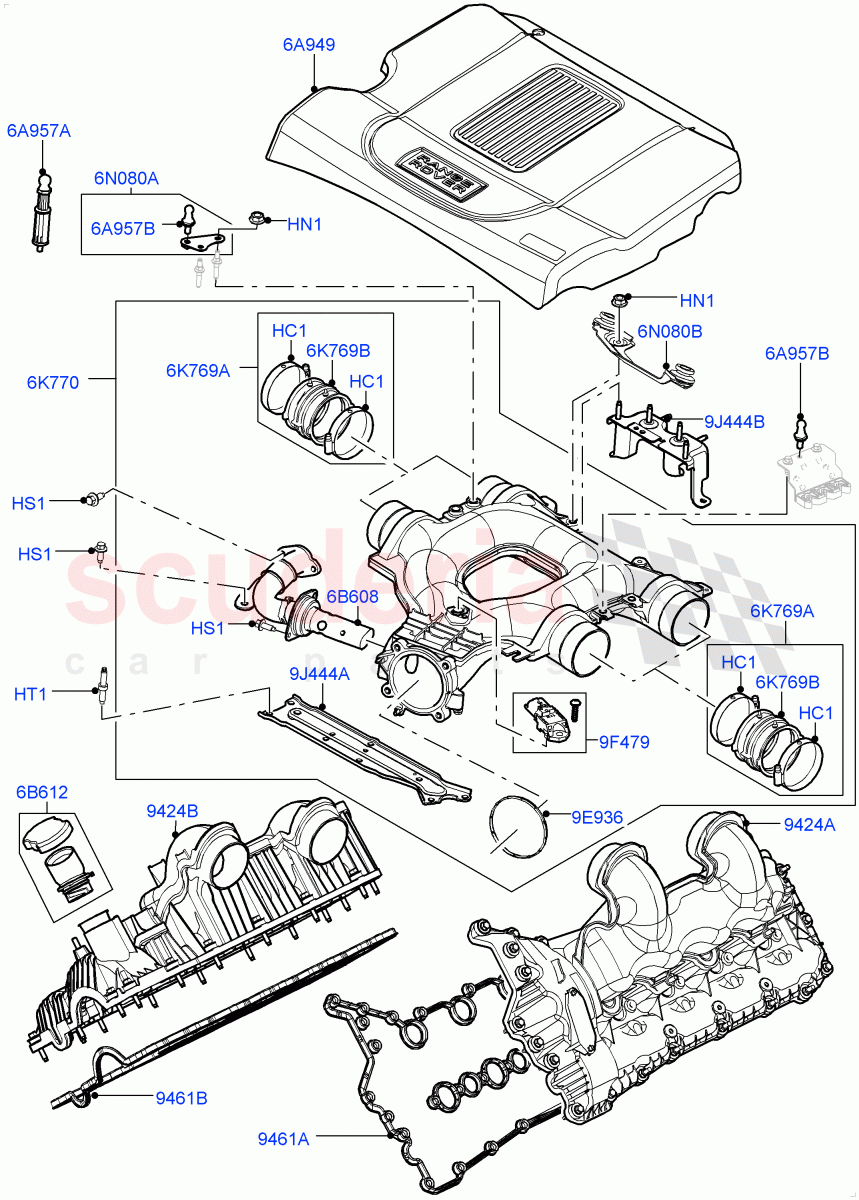

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR048063	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4408651	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023027	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035599	COVER - ENGINE TOP	Enquire	To Order
	LR062495	COVER - ENGINE TOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023038	TUBE - EXHAUST GAS RECIRCULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053016	PIPE - OIL FEED	Enquire	To Order
	LR053016	PIPE - OIL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048505	DUCT - AIR INTAKE	Enquire	To Order
	LR053244	DUCT - AIR INTAKE	Enquire	To Order
	LR092851	DUCT - AIR INTAKE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR034993	MANIFOLD - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034994	MANIFOLD - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035029	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035031	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022931	GASKET - THROTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022916	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order
	LR125298	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order
	LR125298	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022884	STUD - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038978	STUD - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR056285	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR056285	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035619	BRACKET - ENGINE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022739	BRACKET - ENGINE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038336	BRACKET - INTAKE MANIFOLD	Enquire	To Order
	LR092852	BRACKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022912	BRACKET - INTAKE MANIFOLD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR048063	CLIP	LR048063 CLIP 56-84MM	-	8	Enquire
HN1	FN106042	NUT	FN106042 NUT Hexagonal Head, M6	-	4	Enquire
HS1	4408651	SCREW	4408651 SCREW M6 X 14MM	-	3	Enquire
HT1	LR023027	STUD	LR023027 STUD M6, Support Bracket	-	1	Enquire
6A949	LR035599	COVER - ENGINE TOP	LR035599 COVER - ENGINE TOP Engine / To: EA999999	-	1	Enquire
6A949	LR062495	COVER - ENGINE TOP	LR062495 COVER - ENGINE TOP Engine / From: FA000001	-	1	Enquire
6A957A	LR022884	STUD - BALL	LR022884 STUD - BALL Engine Cover, Front	-	2	Enquire
6A957B	LR038978	STUD - BALL	LR038978 STUD - BALL Engine Cover Rear	-	2	Enquire
6B608	LR023038	TUBE - EXHAUST GAS RECIRCULATION	LR023038 TUBE - EXHAUST GAS RECIRCULATION EGR Valve	-	1	Enquire
6B612	LR053016	PIPE - OIL FEED	LR053016 PIPE - OIL FEED To: EA143193	-	1	Enquire
6B612	LR053016	PIPE - OIL FEED	LR053016 PIPE - OIL FEED Jaguar And Land Rover Print, Service Only / From: EA143194	-	1	Enquire
6K769A	LR056285	DUCT - AIR	LR056285 DUCT - AIR Connector, With Clamps	-	4	Enquire
6K769B	LR056285	DUCT - AIR	LR056285 DUCT - AIR Connector, Less Clamps - Must Order Separately	-	4	Enquire
6K770	LR048505	DUCT - AIR INTAKE	LR048505 DUCT - AIR INTAKE Air Intake, Complete Assembly / To: EA130575	-	1	Enquire
6K770	LR053244	DUCT - AIR INTAKE	LR053244 DUCT - AIR INTAKE Air Intake, Complete Assembly / From: EA130576 / To: EA194990	-	1	Enquire
6K770	LR092851	DUCT - AIR INTAKE	LR092851 DUCT - AIR INTAKE Air Intake, Complete Assembly / From: EA194991 / To: KA532715	-	1	Enquire
6K770	LR125825	DUCT - AIR INTAKE	LR125825 DUCT - AIR INTAKE Air Intake, Complete Assembly / From: KA532716	-	1	Enquire
6N080A	LR035619	BRACKET - ENGINE COVER	LR035619 BRACKET - ENGINE COVER Engine Cover	-	1	Enquire
6N080B	LR022739	BRACKET - ENGINE COVER	LR022739 BRACKET - ENGINE COVER	-	1	Enquire
9E936	LR022931	GASKET - THROTTLE	LR022931 GASKET - THROTTLE Attaches to intake manifold, Throttle Body To Intake	-	1	Enquire
9F479	LR022916	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR022916 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / To: FA243273	-	1	Enquire
9F479	LR125298	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR125298 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: FA243274 / To: FA999999	-	1	Enquire
9F479	LR125298	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR125298 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: GA000001	-	1	Enquire
9J444A	LR038336	BRACKET - INTAKE MANIFOLD	LR038336 BRACKET - INTAKE MANIFOLD Intake Manifold / To: FA999999	-	1	Enquire
9J444A	LR092852	BRACKET - INTAKE MANIFOLD	LR092852 BRACKET - INTAKE MANIFOLD Intake Manifold / From: GA000001	-	1	Enquire
9J444B	LR022912	BRACKET - INTAKE MANIFOLD	LR022912 BRACKET - INTAKE MANIFOLD Intake Manifold, Support	-	1	Enquire
9424A	LR034993	MANIFOLD - INLET	LR034993 MANIFOLD - INLET LH, With Cylinder Head Cover	-	1	Enquire
9424B	LR034994	MANIFOLD - INLET	LR034994 MANIFOLD - INLET RH, With Cylinder Head Cover	-	1	Enquire
9461A	LR035029	GASKET - INTAKE MANIFOLD	LR035029 GASKET - INTAKE MANIFOLD LH, Manifold To Cylinder Head	-	1	Enquire
9461B	LR035031	GASKET - INTAKE MANIFOLD	LR035031 GASKET - INTAKE MANIFOLD RH, Manifold To Cylinder Head	-	1	Enquire
