Active Anti-Roll Bar System (High Pressure Pipes, Arc Pump) (3.0L Aj20D6 Diesel High, Electronic...

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] - Active Anti-Roll Bar System (High Pressure Pipes, ARC Pump) (3.0L AJ20D6 Diesel High, Electronic...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB110186 BOLT - HEX.HEAD $1.19 To Order
Photo Part No Description Price (each) Stock
RYP501010 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
Photo Part No Description Price (each) Stock
LR124862 TUBE - ACTIVE ROLL BAR SYSTEM $419.14 To Order
Photo Part No Description Price (each) Stock
LR052795 KIT - SEAL $12.03 To Order
Photo Part No Description Price (each) Stock
LR035471 PUMP - ANTI-ROLL CONTROL $1,803.16 To Order
Photo Part No Description Price (each) Stock
RVW500060 SEAL - PIPE $1.61 To Order
View All

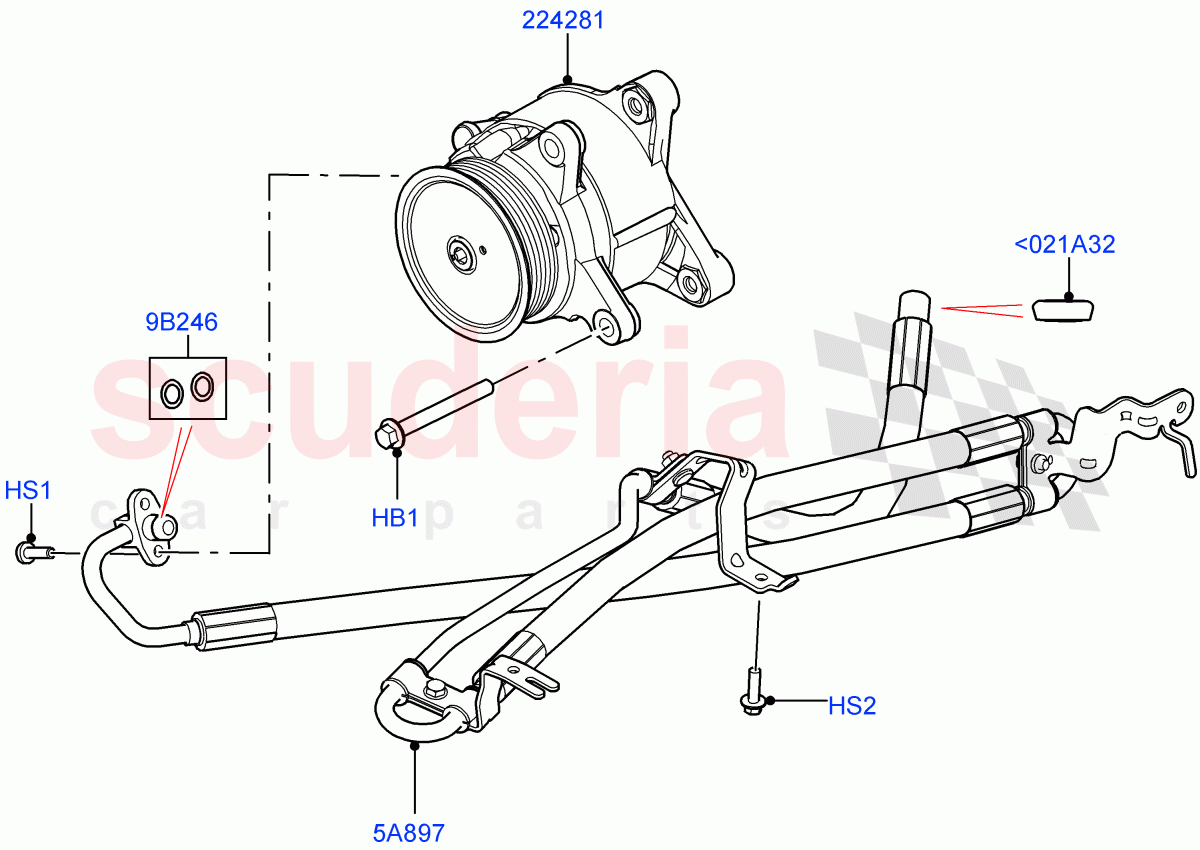

Active Anti-Roll Bar System (High Pressure Pipes, ARC Pump) (3.0L AJ20D6 Diesel High, Electronic Air Suspension With ACE, Sport Suspension w/ARC) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 RVW500060
SEAL - PIPE
Connector / From: LA000001 		$1.61 1
HB1 FB110186
BOLT - HEX.HEAD
Hex Head, M10 X 90MM / From: LA000001 		$1.19 2
HS1 RYP501010
SCREW
M6 X 20MM, Torx / From: LA000001 		$0.62 2
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: LA000001
IN STOCK 		$1.54 3
5A897 LR124862
TUBE - ACTIVE ROLL BAR SYSTEM
From: LA000001 		$419.14 1
9B246 LR052795
KIT - SEAL
Includes Backup Ring / From: JA000001 		$12.03 1
224281 LR035471
PUMP - ANTI-ROLL CONTROL
From: LA000001 		$1,803.16 1
