Find Your Part

View All

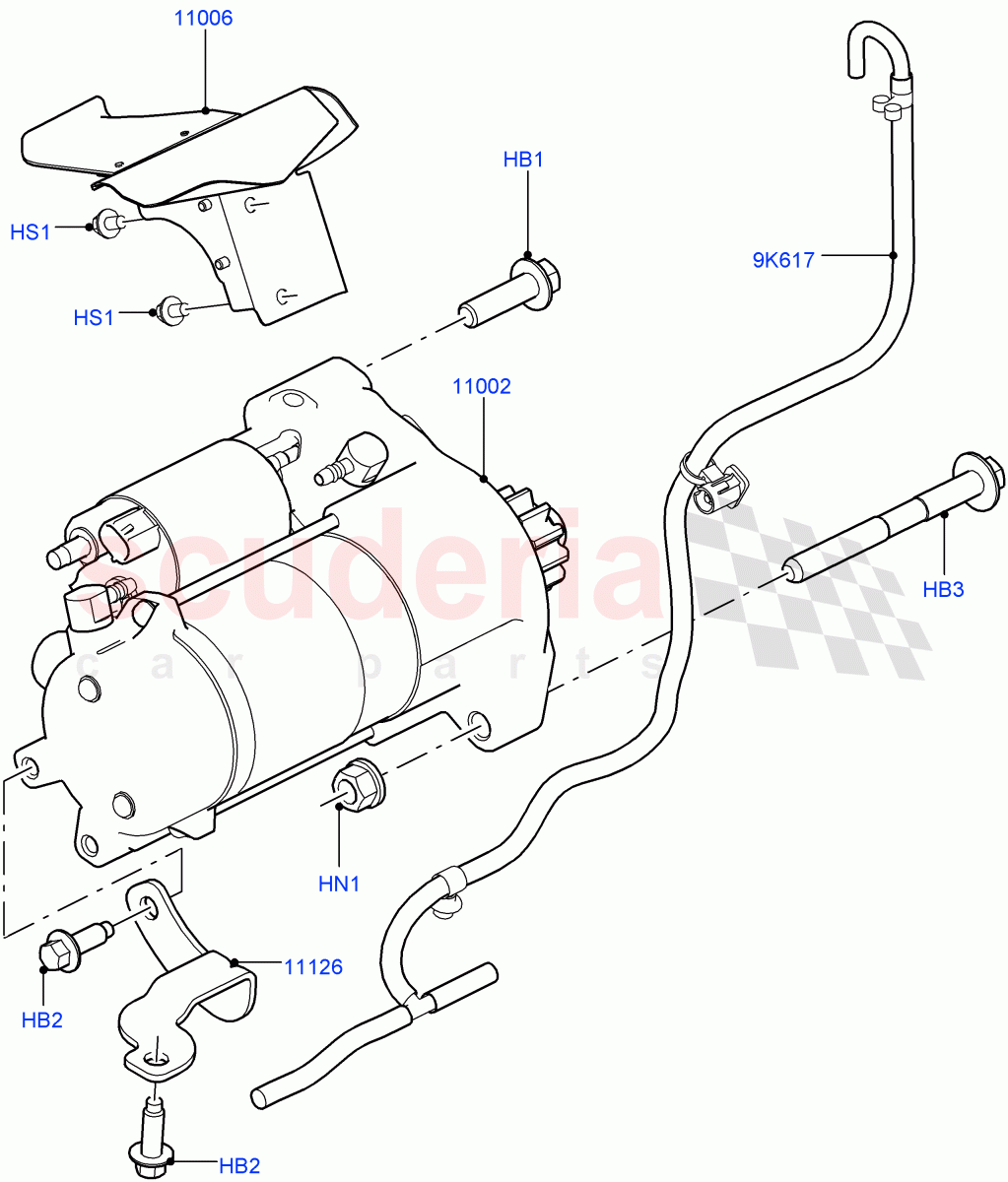

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS110356	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500230	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050974	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500390	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS105082	SCREW	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR042272	SHIELD - STARTER MOTOR HEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044972	BRACKET - STARTER MOTOR	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS110356	SCREW	FS110356 SCREW Hexagonal Head, M10 x 35MM, Starter / From: EA000001	-	1	Enquire
HB2	RYG500230	BOLT - HEX.HEAD	RYG500230 BOLT - HEX.HEAD Bracket, Hexagonal Head, M8 X 20MM / From: EA000001	-	3	Enquire
HB3	LR050974	BOLT	LR050974 BOLT M10 x 98MM / From: EA000001	-	1	Enquire
HN1	RYH500390	NUT AND WASHER - HEX.	RYH500390 NUT AND WASHER - HEX. M10, Nut And Washer / From: EA000001	-	1	Enquire
HS1	FS105082	SCREW	FS105082 SCREW Heat Shield, M5 x 8MM / From: EA000001	-	2	Enquire
9K617	LR052682	Tube - Breather	LR052682 Tube - Breather Complete / From: EA000001 / To: EA137729	-	1	Enquire
9K617	LR056502	TUBE - BREATHER	LR056502 TUBE - BREATHER Complete / From: EA137730 / To: FA222998	-	1	Enquire
9K617	LR077370	TUBE - BREATHER	LR077370 TUBE - BREATHER Complete / From: FA222999	-	1	Enquire
11002	LR041976	STARTER MOTOR	LR041976 STARTER MOTOR From: EA000001 / To: EA178045	-	1	Enquire
11002	LR061893	STARTER MOTOR	LR061893 STARTER MOTOR From: FA000001 / To: GA280210	-	1	Enquire
11002	LR080307	STARTER MOTOR	LR080307 STARTER MOTOR From: EA178046 / To: EA999999	-	1	Enquire
11002	LR079918	STARTER MOTOR	LR079918 STARTER MOTOR From: GA280211	-	1	Enquire
11006	LR042272	SHIELD - STARTER MOTOR HEAT	LR042272 SHIELD - STARTER MOTOR HEAT From: EA000001	-	1	Enquire
11126	LR044972	BRACKET - STARTER MOTOR	LR044972 BRACKET - STARTER MOTOR Starter / From: EA000001	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Starter Motor (3.0L Dohc Gdi Sc V6 Petrol, Starter - Stop/Start System) ((V) Fromea000001, (V)...

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]
