Rear Exhaust System (3.0L DOHC GDI SC V6 PETROL) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] - Rear Exhaust System (3.0L DOHC GDI SC V6 PETROL) ((V) FROMJA000001)

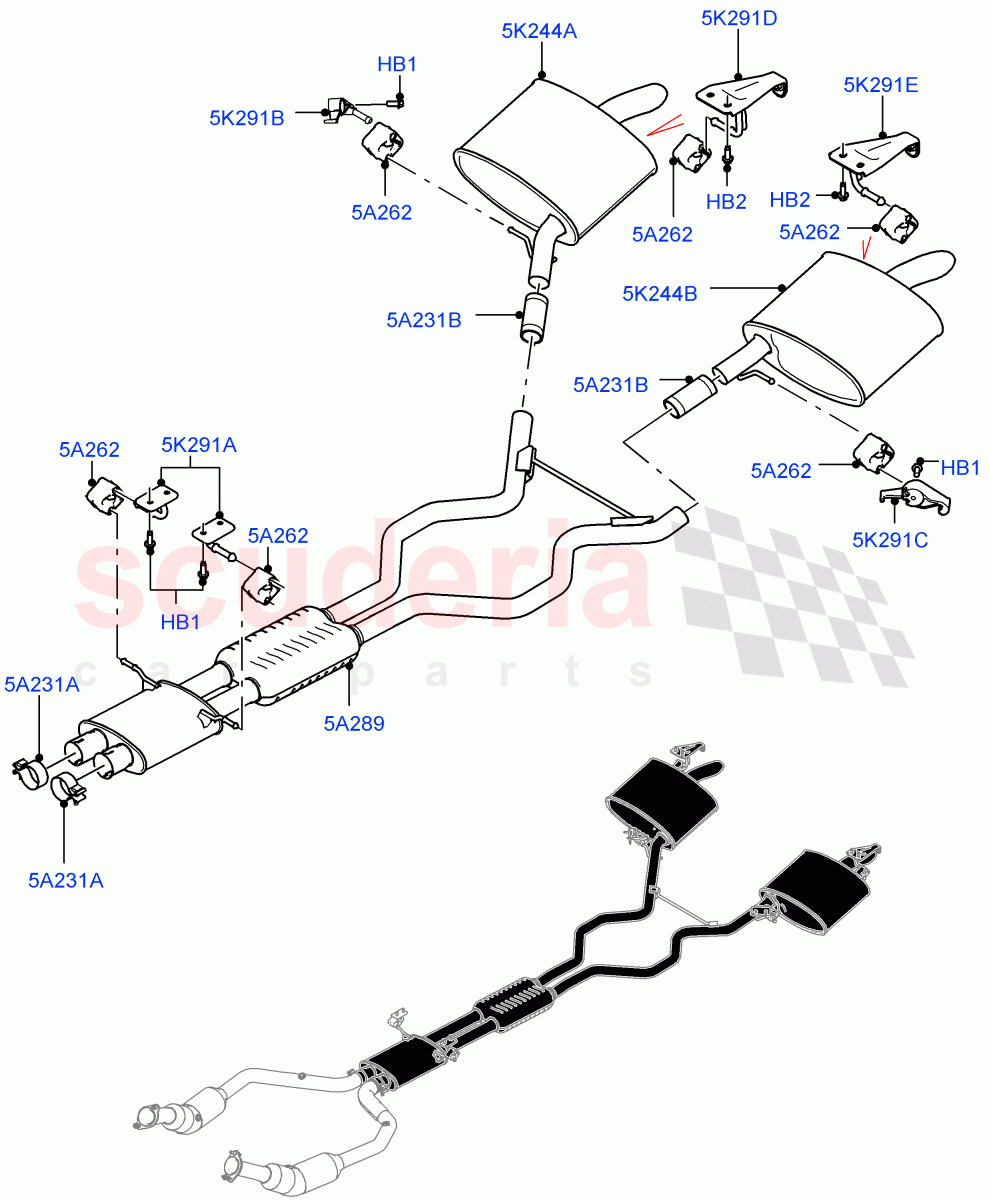

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054697	RESONATOR - EXHAUST SYSTEM	Enquire	To Order
	LR053256	RESONATOR - EXHAUST SYSTEM	Enquire	To Order
	LR120472	RESONATOR - EXHAUST SYSTEM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR036438	EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500020	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105223	MUFFLER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105227	MUFFLER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035765	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110251	BRACKET - REAR MUFFLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110252	BRACKET - REAR MUFFLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044964	BRACKET - REAR MUFFLER	Enquire	To Order
	LR136419	BRACKET - REAR MUFFLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044965	BRACKET - REAR MUFFLER	Enquire	To Order
	LR136420	BRACKET - REAR MUFFLER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108206	BOLT	FS108206 BOLT For Rear Muffler, Hexagonal Head, M8 X 20MM, RESONATOR / From: JA000001	-	4	Enquire
HB2	RYG500440	BOLT	RYG500440 BOLT For Rear Muffler, Hexagonal Head, M8 X 20MM / From: JA000001	-	4	Enquire
5A231A	LR036438	EXHAUST	LR036438 EXHAUST 60MM, Front, RESONATOR / From: JA000001	-	2	Enquire
5A231B	WCL500020	CLAMP - EXHAUST	WCL500020 CLAMP - EXHAUST 50MM, For Rear Muffler / From: JA000001	-	2	Enquire
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER From: JA000001	-	6	Enquire
5A289	LR054697	RESONATOR - EXHAUST SYSTEM	LR054697 RESONATOR - EXHAUST SYSTEM Standard Wheelbase / From: JA000001 / To: KA520386	-	1	Enquire
5A289	LR053256	RESONATOR - EXHAUST SYSTEM	LR053256 RESONATOR - EXHAUST SYSTEM Long Wheelbase / From: JA000001 / To: KA520386	-	1	Enquire
5A289	LR120472	RESONATOR - EXHAUST SYSTEM	LR120472 RESONATOR - EXHAUST SYSTEM Standard Wheelbase / From: KA520387	-	1	Enquire
5A289	LR120473	RESONATOR - EXHAUST SYSTEM	LR120473 RESONATOR - EXHAUST SYSTEM Long Wheelbase / From: KA520387	-	1	Enquire
5K244A	LR105223	MUFFLER - REAR	LR105223 MUFFLER - REAR RH / From: JA000001	-	1	Enquire
5K244B	LR105227	MUFFLER - REAR	LR105227 MUFFLER - REAR LH / From: JA000001	-	1	Enquire
5K291A	LR035765	BRACKET - EXHAUST PIPE MOUNTING	LR035765 BRACKET - EXHAUST PIPE MOUNTING RESONATOR, RH And LH / From: JA000001	-	2	Enquire
5K291B	LR110251	BRACKET - REAR MUFFLER	LR110251 BRACKET - REAR MUFFLER For Rear Muffler, RH Front / From: JA000001	-	1	Enquire
5K291C	LR110252	BRACKET - REAR MUFFLER	LR110252 BRACKET - REAR MUFFLER For Rear Muffler, LH Front / From: JA000001	-	1	Enquire
5K291D	LR044964	BRACKET - REAR MUFFLER	LR044964 BRACKET - REAR MUFFLER For Rear Muffler, RH Rear / From: JA000001 / To: KA567510	-	1	Enquire
5K291D	LR136419	BRACKET - REAR MUFFLER	LR136419 BRACKET - REAR MUFFLER For Rear Muffler, RH Rear / From: KA567511	-	1	Enquire
5K291E	LR044965	BRACKET - REAR MUFFLER	LR044965 BRACKET - REAR MUFFLER For Rear Muffler, LH Rear / From: JA000001 / To: KA567510	-	1	Enquire
5K291E	LR136420	BRACKET - REAR MUFFLER	LR136420 BRACKET - REAR MUFFLER For Rear Muffler, LH Rear / From: KA567511	-	1	Enquire
