Name: Exhaust Manifold (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL, Beijing 6 Petrol Emission) ((V) FROMJA000001)
Rating: 5.0 (1 reviews)

Exhaust Manifold (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL, Beijing 6 Petrol Emission) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] - Exhaust Manifold (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL, Beijing 6 Petrol Emission)...

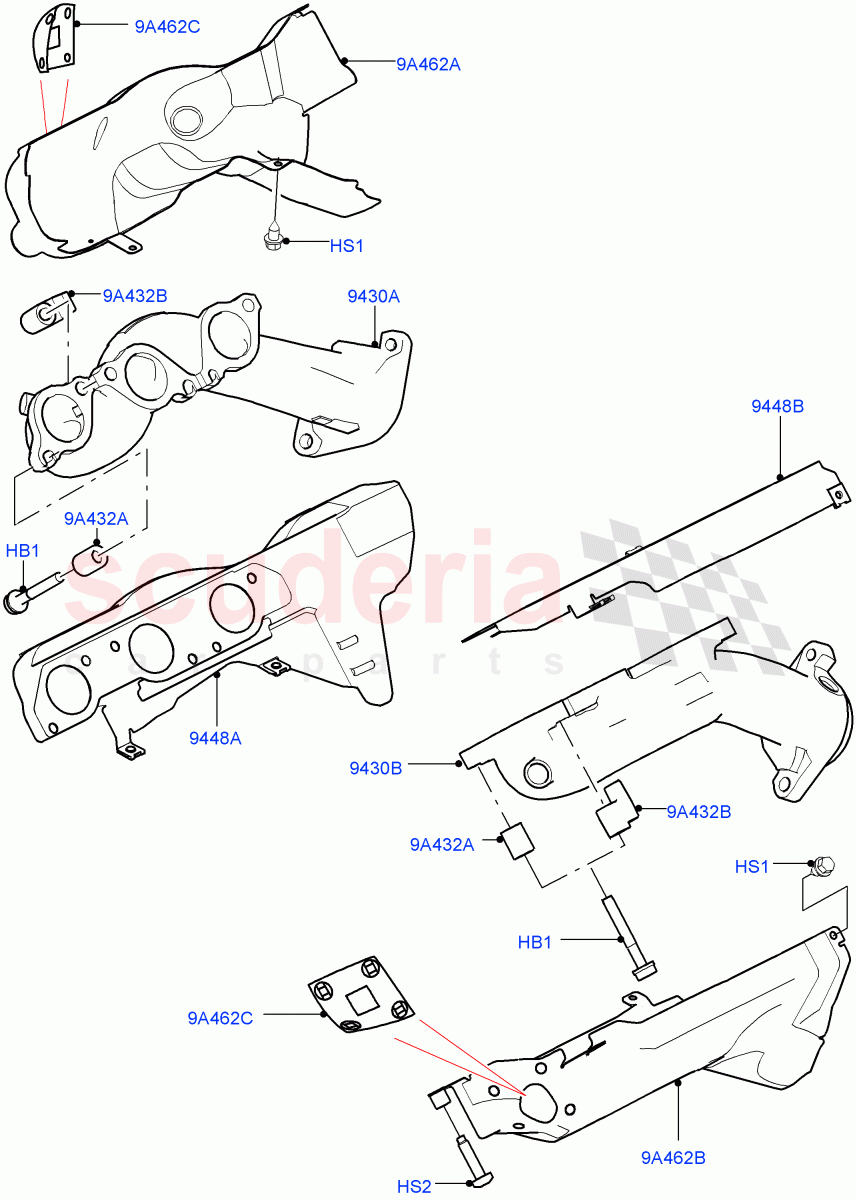

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034008	BOLT	$3.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR006698	SCREW	$3.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010917	SCREW	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106364	MANIFOLD - EXHAUST	$636.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106365	MANIFOLD - EXHAUST	$700.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116110	GASKET - EXHAUST MANIFOLD	$46.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116111	GASKET - EXHAUST MANIFOLD	$46.49	To Order

Photo	Part No	Description	Price (each)	Stock
	4642648	SPACER - EXHAUST MANIFOLD FIXING	$1.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010805	EXHAUST MANIFOLD FIXING	$23.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107292	SHIELD - EXHAUST MANIFOLD HEAT	$47.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107293	SHIELD - EXHAUST MANIFOLD HEAT	$48.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108948	SHIELD - EXHAUST MANIFOLD HEAT	$42.29	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR034008	BOLT IN STOCK	LR034008 BOLT Exhaust Manifold, M8 x 57MM / From: JA000001 IN STOCK	$3.19	12
HS1	LR006698	SCREW IN STOCK	LR006698 SCREW Heat Shield, M6.3 X 13MM / From: JA000001 IN STOCK	$3.65	7
HS2	LR010917	SCREW	LR010917 SCREW Heat Shield, M8 x 30MM / From: JA000001	$1.11	1
9A432A	4642648	SPACER - EXHAUST MANIFOLD FIXING	4642648 SPACER - EXHAUST MANIFOLD FIXING Exhaust Manifold Fixing / From: JA000001	$1.90	8
9A432B	LR010805	EXHAUST MANIFOLD FIXING	LR010805 EXHAUST MANIFOLD FIXING Exhaust Manifold Fixing / From: JA000001	$23.31	4
9A462A	LR107292	SHIELD - EXHAUST MANIFOLD HEAT	LR107292 SHIELD - EXHAUST MANIFOLD HEAT RH, Exhaust Manifold / From: JA000001	$47.95	1
9A462B	LR107293	SHIELD - EXHAUST MANIFOLD HEAT	LR107293 SHIELD - EXHAUST MANIFOLD HEAT LH, Exhaust Manifold / From: JA000001	$48.53	1
9A462C	LR108948	SHIELD - EXHAUST MANIFOLD HEAT	LR108948 SHIELD - EXHAUST MANIFOLD HEAT Flexible / From: JA000001	$42.29	2
9430A	LR106364	MANIFOLD - EXHAUST	LR106364 MANIFOLD - EXHAUST RH / From: JA000001	$636.41	1
9430B	LR106365	MANIFOLD - EXHAUST	LR106365 MANIFOLD - EXHAUST LH / From: JA000001	$700.62	1
9448A	LR116110	GASKET - EXHAUST MANIFOLD	LR116110 GASKET - EXHAUST MANIFOLD RH, Exhaust Manifold / From: JA000001	$46.49	1
9448B	LR116111	GASKET - EXHAUST MANIFOLD	LR116111 GASKET - EXHAUST MANIFOLD LH, Exhaust Manifold / From: JA000001	$46.49	1
