Electrical Wiring - Engine And Dash (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Electrical Wiring - Engine And Dash (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.23 IN STOCK
Photo Part No Description Price (each) Stock
LR087242 NUT - HEX. $1.40 To Order
Photo Part No Description Price (each) Stock
RYH500340 NUT AND WASHER - HEX. $1.04 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
LR000048 NUT - HEX. - FLANGED $0.50 To Order
Photo Part No Description Price (each) Stock
LR073720 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
LR092106 SCREW $0.95 To Order
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.31 IN STOCK
Photo Part No Description Price (each) Stock
LR108591 BOLT $1.01 To Order
Photo Part No Description Price (each) Stock
LR073686 SCREW $2.38 To Order
Photo Part No Description Price (each) Stock
LR124992 WIRE - ALTERNATOR $108.13 To Order
Photo Part No Description Price (each) Stock
LR140118 BRACKET - WIRING $9.60 To Order
Photo Part No Description Price (each) Stock
LR085666 TERMINAL - BATTERY $102.75 To Order
Photo Part No Description Price (each) Stock
LR121768 WIRING - FUEL INJECTORS $160.15 To Order
Photo Part No Description Price (each) Stock
LR122665 WIRING - ENGINE $870.49 To Order
LR157211 WIRING - ENGINE $884.81 To Order
LR171970 WIRING - ENGINE $869.29 To Order
Photo Part No Description Price (each) Stock
LR123715 WIRE - EARTH $32.19 To Order
LR157213 WIRE - EARTH $30.47 To Order
Photo Part No Description Price (each) Stock
LR125085 WIRE - SOLENOID $62.39 To Order
Photo Part No Description Price (each) Stock
LR125212 WIRE - SOLENOID $63.20 To Order
LR128783 WIRE - SOLENOID $56.65 To Order
Photo Part No Description Price (each) Stock
LR152431 BRACKET - ENGINE HARNESS $66.39 To Order
Photo Part No Description Price (each) Stock
LR152432 BRACKET - ENGINE HARNESS $66.39 To Order
Photo Part No Description Price (each) Stock
LR138589 HEAT SHIELD $32.62 To Order
Photo Part No Description Price (each) Stock
LR138590 HEAT SHIELD $32.62 To Order
Photo Part No Description Price (each) Stock
LR138591 HEAT SHIELD $32.62 To Order
View All

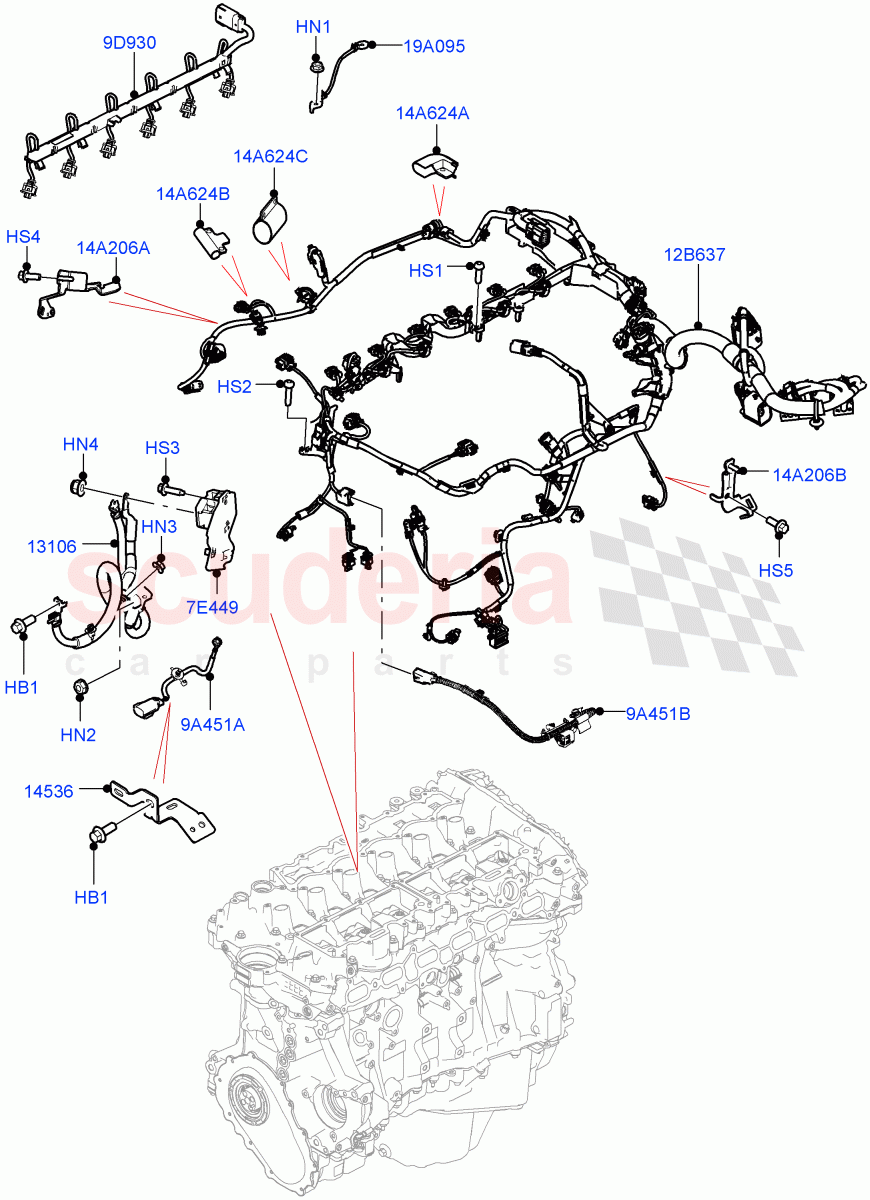

Electrical Wiring - Engine And Dash (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM / From: KA000001
IN STOCK 		$2.23 2
HN1 LR087242
NUT - HEX.
Electric Supercharger, Ground Wire, M6 / From: KA000001 		$1.40 2
HN2 RYH500340
NUT AND WASHER - HEX.
M8, Nut And Washer / From: KA000001 		$1.04 1
HN3 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: KA000001
IN STOCK 		$1.45 1
HN4 LR000048
NUT - HEX. - FLANGED
M8, Starter Cable / From: KA000001 		$0.50 1
HS1 LR073720
SCREW
M6 X 20MM / From: KA000001 		$1.53 2
HS2 LR092106
SCREW
Bracket, Engine Harness, M6 x 25MM / From: KA000001 		$0.95 1
HS3 RYG500220
SCREW
Hexagonal Head, M6 X 20MM, Wiring Terminal / From: KA000001
IN STOCK 		$3.31 2
HS4 LR108591
BOLT
M6 X 16MM / From: KA000001 		$1.01 1
HS5 LR073686
SCREW
M6 X 16MM / From: KA000001 		$2.38 1
7E449 LR085666
TERMINAL - BATTERY
Battery Cables / From: KA000001 		$102.75 1
9A451A LR125085
WIRE - SOLENOID
Link, Starter Motor / From: KA000001 		$62.39 1
9A451B LR125212
WIRE - SOLENOID
Belt Integrated Starter Generator, Link / From: KA000001 / To: KA542778 		$63.20 1
9A451B LR128783
WIRE - SOLENOID
Belt Integrated Starter Generator, Link / From: KA542779 		$56.65 1
9D930 LR121768
WIRING - FUEL INJECTORS
Injector Harness / From: KA000001 		$160.15 1
12B637 LR122665
WIRING - ENGINE
Engine / From: KA000001 / To: MA440759 		$870.49 1
12B637 LR157211
WIRING - ENGINE
Engine / From: MA440760 / To: NA472591 		$884.81 1
12B637 LR171970
WIRING - ENGINE
Engine / From: NA472592 		$869.29 1
14A206A LR152431
BRACKET - ENGINE HARNESS
Engine Harness, Upper / From: KA000001 		$66.39 1
14A206B LR152432
BRACKET - ENGINE HARNESS
Engine Harness, Lower / From: KA000001 		$66.39 1
14A624A LR138589
HEAT SHIELD
Connector, Electric Supercharger / From: KA000001 		$32.62 1
14A624B LR138590
HEAT SHIELD
Sensor - Air Charge Temperature / From: KA000001 		$32.62 1
14A624C LR138591
HEAT SHIELD
Clip, Wiring Harness / From: KA000001 		$32.62 1
19A095 LR123715
WIRE - EARTH
Electric Supercharger / From: KA000001 / To: MA440745 		$32.19 1
19A095 LR157213
WIRE - EARTH
Electric Supercharger / From: MA440746 		$30.47 1
13106 LR124992
WIRE - ALTERNATOR
Starter Motor / From: KA000001 		$108.13 1
14536 LR140118
BRACKET - WIRING
Starter Motor Wiring / From: KA000001 		$9.60 1
