Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Splash And Heat Shields (Heat Shield)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033409 BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD $1.28 IN STOCK
Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 $1.40 IN STOCK
LR009266 BOLT M6 X 24 $1.40 IN STOCK
LR009266 BOLT M6 X 24 $1.40 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR033698 NUT - HEX. - PLATE $1.42 To Order
LR033698 NUT - HEX. - PLATE $1.42 To Order
Photo Part No Description Price (each) Stock
AYH100790 NUT - SPECIAL $1.19 To Order
Photo Part No Description Price (each) Stock
RYP500190 SCREW $0.62 IN STOCK
Photo Part No Description Price (each) Stock
RYG501590 SCREW $0.96 To Order
RYG501590 SCREW $0.96 To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.92 IN STOCK
Photo Part No Description Price (each) Stock
LR033706 SHIELD - REAR FLOOR PAN $24.11 To Order
LR033705 SHIELD - REAR FLOOR PAN $24.11 To Order
Photo Part No Description Price (each) Stock
LR033703 SHIELD - FRONT FLOOR PAN $20.81 To Order
LR055845 SHIELD - FRONT FLOOR PAN $19.73 To Order
LR059969 SHIELD - FRONT FLOOR PAN $23.50 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR033704 SHIELD - REAR FLOOR PAN $30.00 To Order
LR054329 SHIELD - REAR FLOOR PAN $149.21 To Order
LR092621 SHIELD - REAR FLOOR PAN $158.64 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR035494 HEAT SHIELD - EXHAUST $59.54 To Order
LR035495 HEAT SHIELD - EXHAUST $85.08 To Order
LR045804 HEAT SHIELD - EXHAUST $59.54 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR049234 SHIELD - REAR FLOOR PAN $23.41 To Order
LR049235 SHIELD - REAR FLOOR PAN $55.63 To Order
LR049235 SHIELD - REAR FLOOR PAN $55.63 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR098314 HEAT SHIELD - EXHAUST $51.53 To Order
Photo Part No Description Price (each) Stock
LR121154 HEAT SHIELD - EXHAUST $47.22 To Order
Photo Part No Description Price (each) Stock
LR121194 HEAT SHIELD - EXHAUST $65.76 To Order
View All

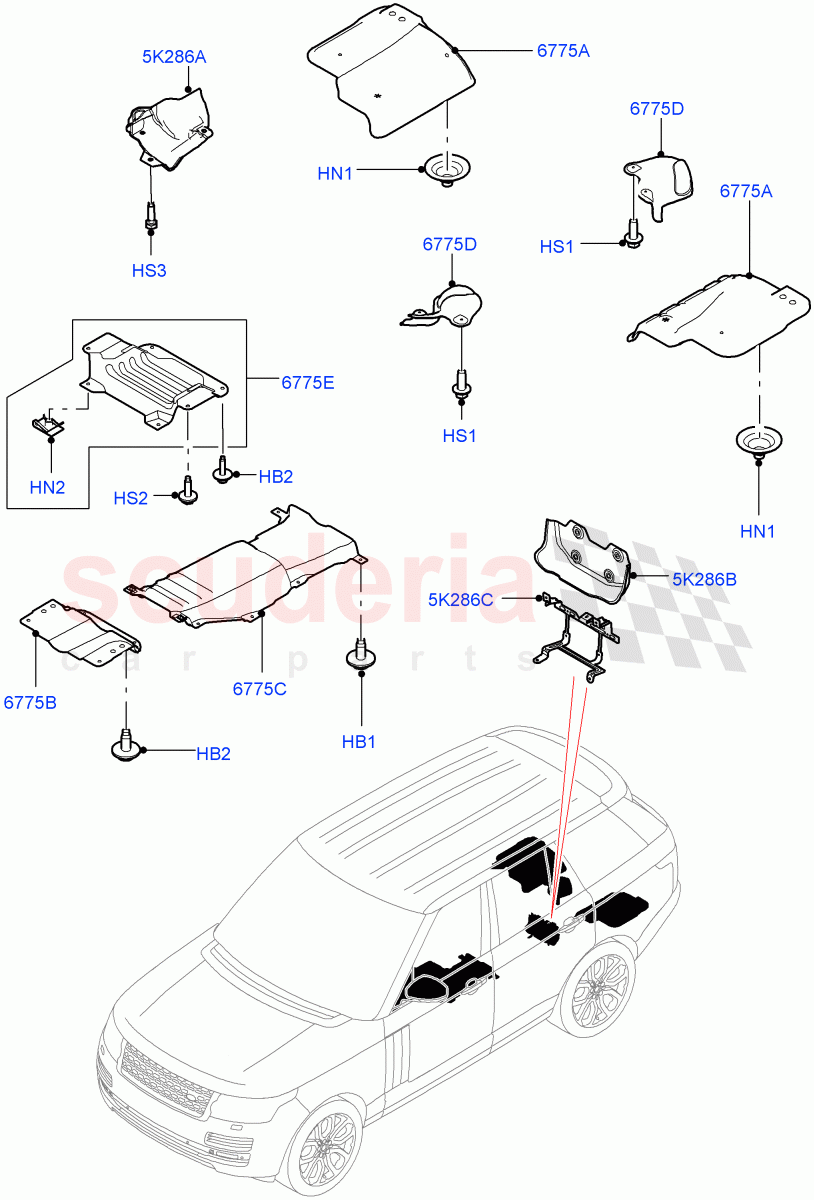

Splash And Heat Shields (Heat Shield) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR033409
BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD
M6 X 13.5MM
IN STOCK 		$1.28 8
HB2 LR009266
BOLT M6 X 24
Bolt And Washer, Heat Shield, Hexagonal Head, M6 X 24MM
IN STOCK 		$1.40 2
HB2 LR009266
BOLT M6 X 24
Bolt And Washer, Front Floor Pan, Hexagonal Head, M6 X 24MM
IN STOCK 		$1.40 4
HB2 LR009266
BOLT M6 X 24
Long Wheelbase / Bolt And Washer, Heat Shield, Hexagonal Head, M6 X 24MM / From: EA000001 / To: GA999999
IN STOCK 		$1.40 2
HB2 LR009266
BOLT M6 X 24
Long Wheelbase / Bolt And Washer, Heat Shield, Hexagonal Head, M6 X 24MM / From: HA000001
IN STOCK 		$1.40 2
HN1 LR033698
NUT - HEX. - PLATE
Heat Shield, M6 		$1.42 8
HN1 LR033698
NUT - HEX. - PLATE
M6, Rear Floor 		$1.42 6
HN2 AYH100790
NUT - SPECIAL
M6 X 0.5-4, Nut "U" Spring / From: EA000001 		$1.19 2
HS1 RYP500190
SCREW
Hexagonal Head, M6 x 12MM
IN STOCK 		$0.62 4
HS2 RYG501590
SCREW
Long Wheelbase / Hexagonal Head, M6 X 20MM / From: EA000001 / To: GA999999 		$0.96 2
HS2 RYG501590
SCREW
Long Wheelbase / Hexagonal Head, M6 X 20MM / From: HA000001 		$0.96 2
HS3 AYP500110
SCREW
2.0L AJ200P Hi PHEV / Bolt And Washer, Hexagonal Head, M6 X 20MM / From: JA000001
IN STOCK 		$0.92 3
5K286A LR098314
HEAT SHIELD - EXHAUST
2.0L AJ200P Hi PHEV / From: JA000001 		$51.53 1
5K286B LR121154
HEAT SHIELD - EXHAUST
3.0L AJ20P6 Petrol High, Electric Engine Battery-MHEV / From: LA000001 		$47.22 1
5K286C LR121194
HEAT SHIELD - EXHAUST
3.0L AJ20P6 Petrol High / From: LA000001 		$65.76 1
6775A LR033706
SHIELD - REAR FLOOR PAN
LH, Rear Floor 		$24.11 1
6775A LR033705
SHIELD - REAR FLOOR PAN
RH, Rear Floor 		$24.11 1
6775B LR033703
SHIELD - FRONT FLOOR PAN
3.0L 24V V6 Turbo Diesel Std Flow / Front Floor Pan / To: EA152707 		$20.81 1
6775B LR055845
SHIELD - FRONT FLOOR PAN
3.0 V6 D Gen2 Mono Turbo / Front Floor Pan / From: EA152708 / To: EA178014 		$19.73 1
6775B LR059969
SHIELD - FRONT FLOOR PAN
4.4L DOHC DITC V8 Diesel / Front Floor Pan / From: EA152708 / To: EA192057 		$23.50 1
6775B LR061745
SHIELD - FRONT FLOOR PAN
3.0 V6 Diesel Electric Hybrid Eng, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Front Floor Pan / From: EA178015 / To: EA192057 		$19.73 1
6775B LR068351
SHIELD - FRONT FLOOR PAN
3.0 V6 Diesel Electric Hybrid Eng, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Front Floor Pan / From: EA192058 / To: EA253134 		$19.07 1
6775B LR070492
SHIELD - FRONT FLOOR PAN
4.4L DOHC DITC V8 Diesel, Less Electric Engine Battery / Front Floor Pan / From: EA192058 / To: GA312806 		$20.71 1
6775B LR080263
SHIELD - FRONT FLOOR PAN
3.0 V6 D Gen2 Mono Turbo / Front Floor Pan / From: EA253135 / To: GA113960 		$76.79 1
6775B LR094074
SHIELD - FRONT FLOOR PAN
3.0 V6 D Gen2 Mono Turbo / Front Floor Pan / From: GA113961 		$40.84 1
6775B LR094073
SHIELD - FRONT FLOOR PAN
5.0L OHC SGDI SC V8 Petrol - AJ133, Less Electric Engine Battery / Front Floor Pan / From: GA312807 		$42.87 1
6775B LR094073
SHIELD - FRONT FLOOR PAN
3.0L AJ20P6 Petrol High / Front Floor Pan / From: LA000001 		$42.87 1
6775B LR094073
SHIELD - FRONT FLOOR PAN
5.0L P AJ133 DOHC CDA S/C Enhanced / Front Floor Pan / From: JA000001 		$42.87 1
6775C LR033704
SHIELD - REAR FLOOR PAN
Centre, Rear Floor / To: EA133630 		$30.00 1
6775C LR054329
SHIELD - REAR FLOOR PAN
Centre, Rear Floor / From: EA133631 / To: GA327122 		$149.21 1
6775C LR092621
SHIELD - REAR FLOOR PAN
Centre, Rear Floor / From: GA327123 / To: LA588678 		$158.64 1
6775C LR137639
SHIELD - REAR FLOOR PAN
Centre, Rear Floor / From: LA588679 		$159.69 1
6775D LR035494
HEAT SHIELD - EXHAUST
LH, Rear Stabilizer / To: FA227762 		$59.54 1
6775D LR035495
HEAT SHIELD - EXHAUST
RH, Rear Stabilizer / To: DA106654 		$85.08 1
6775D LR045804
HEAT SHIELD - EXHAUST
RH, Rear Stabilizer / From: DA106655 / To: FA227020 		$59.54 1
6775D LR072549
HEAT SHIELD - EXHAUST
LH, Rear Stabilizer / From: FA227763 		$52.04 1
6775D LR072548
HEAT SHIELD - EXHAUST
RH, Rear Stabilizer / From: FA227021 		$28.07 1
6775E LR049234
SHIELD - REAR FLOOR PAN
Less Electric Engine Battery, Long Wheelbase / Centre, Rear Floor / From: EA000001 / To: GA999999 		$23.41 1
6775E LR049235
SHIELD - REAR FLOOR PAN
Hi-Volt Battery 300V, Long Wheelbase / Centre, Rear Floor / From: EA000001 / To: GA999999 		$55.63 1
6775E LR049235
SHIELD - REAR FLOOR PAN
3.0 V6 D Gen2 Twin Turbo, Long Wheelbase / Centre, Rear Floor / From: HA000001 / To: HA344416 		$55.63 1
6775E LR049234
SHIELD - REAR FLOOR PAN
5.0L OHC SGDI SC V8 Petrol - AJ133, Long Wheelbase / Centre, Rear Floor / From: HA000001 / To: HA344416 		$23.41 1
6775E LR105623
SHIELD - REAR FLOOR PAN
4.4L DOHC DITC V8 Diesel, Long Wheelbase / Centre, Rear Floor / From: HA344417 		$50.14 1
6775E LR105624
SHIELD - REAR FLOOR PAN
3.0 V6 D Low MT ROW, Long Wheelbase / Centre, Rear Floor / From: HA344417 		$52.62 1
