Transmission External Components

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Transmission External Components

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR042472 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
KYP500260 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR023294 PAN - TRANSMISSION OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR038249 SHIELD - TRANSMISSION Enquire To Order
LR038765 SHIELD - TRANSMISSION Enquire To Order
LR045520 SHIELD - TRANSMISSION Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR073535 BRACKET - TRANSMISSION HEAT SHIELD Enquire To Order
LR053742 BRACKET - TRANSMISSION HEAT SHIELD Enquire To Order
LR057208 BRACKET - TRANSMISSION HEAT SHIELD Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR023292 PLUG - TRANSMISSION Enquire To Order
Photo Part No Description Price (each) Stock
LR008866 GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
LR133314 PLUG - TRANSMISSION Enquire To Order
View All

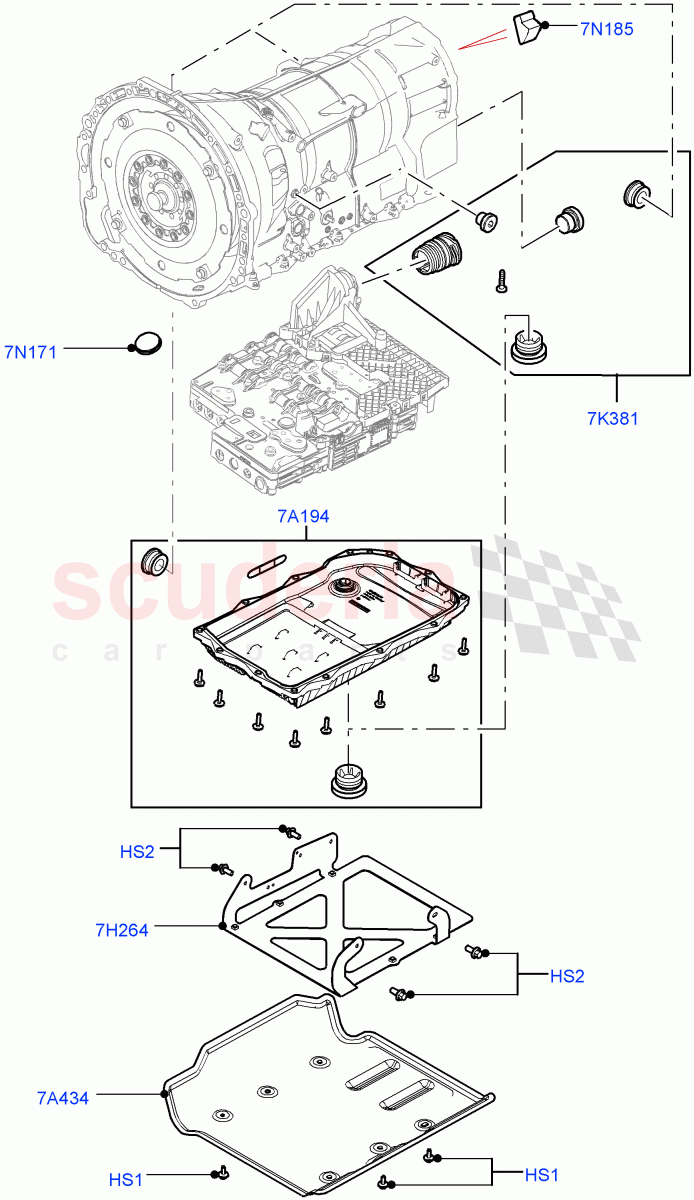

Transmission External Components of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR042472
SCREW
5.0L OHC SGDI NA V8 Petrol - AJ133 / Hexagonal Head, M6 X 16MM 		- 6 Enquire
HS2 KYP500260
SCREW
5.0L OHC SGDI NA V8 Petrol - AJ133 / M6 X 14MM 		- 4 Enquire
7A194 LR023294
PAN - TRANSMISSION OIL
Includes Oil Filter 		- 1 Enquire
7A434 LR038249
SHIELD - TRANSMISSION
3.0L DOHC GDI SC V6 PETROL / Transmission / To: EA141943 		- 1 Enquire
7A434 LR038765
SHIELD - TRANSMISSION
4.4L DOHC DITC V8 Diesel / Transmission / To: DA103084 		- 1 Enquire
7A434 LR045520
SHIELD - TRANSMISSION
4.4L DOHC DITC V8 Diesel / Transmission / From: DA103085 		- 1 Enquire
7A434 LR056259
SHIELD - TRANSMISSION
5.0L OHC SGDI SC V8 Petrol - AJ133 / Transmission / From: EA141944 		- 1 Enquire
7H264 LR073535
BRACKET - TRANSMISSION HEAT SHIELD
4.4L DOHC DITC V8 Diesel / Heat Shield, Retailers Are Advised To Read LTB01091v4 Prior To Ordering, Please Note LTB01091v4 Is Not Applicable To L319 / To: EA129705 		- 1 Enquire
7H264 LR053742
BRACKET - TRANSMISSION HEAT SHIELD
5.0L OHC SGDI SC V8 Petrol - AJ133 / Heat Shield, Retailers Are Advised To Read LTB01091v4 Prior To Ordering, Please Note LTB01091v4 Is Not Applicable To L319 / From: EA129706 / To: EA148386 		- 1 Enquire
7H264 LR057208
BRACKET - TRANSMISSION HEAT SHIELD
3.0L DOHC GDI SC V6 PETROL / Heat Shield, Retailers Are Advised To Read LTB01091v4 Prior To Ordering, Please Note LTB01091v4 Is Not Applicable To L319 / From: EA148387 / To: EA149459 		- 1 Enquire
7H264 LR073535
BRACKET - TRANSMISSION HEAT SHIELD
5.0L OHC SGDI NA V8 Petrol - AJ133 / Heat Shield, Retailers Are Advised To Read LTB01091v4 Prior To Ordering, Please Note LTB01091v4 Is Not Applicable To L319 / From: EA149460 / To: FA227020 		- 1 Enquire
7H264 LR073535
BRACKET - TRANSMISSION HEAT SHIELD
5.0 Petrol AJ133 DOHC CDA / Heat Shield, Retailers Are Advised To Read LTB01091v4 Prior To Ordering, Please Note LTB01091v4 Is Not Applicable To L319 / From: FA227021 		- 1 Enquire
7K381 LR023292
PLUG - TRANSMISSION
Transmission 		- 1 Enquire
7N171 LR008866
GROMMET
Converter Drain Access 		- 1 Enquire
7N185 LR133314
PLUG - TRANSMISSION
3.0 V6 D Gen2 Mono Turbo / Transmission 		- 1 Enquire
