Turbocharger (Lubrication And Cooling) (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Turbocharger (Lubrication And Cooling) (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

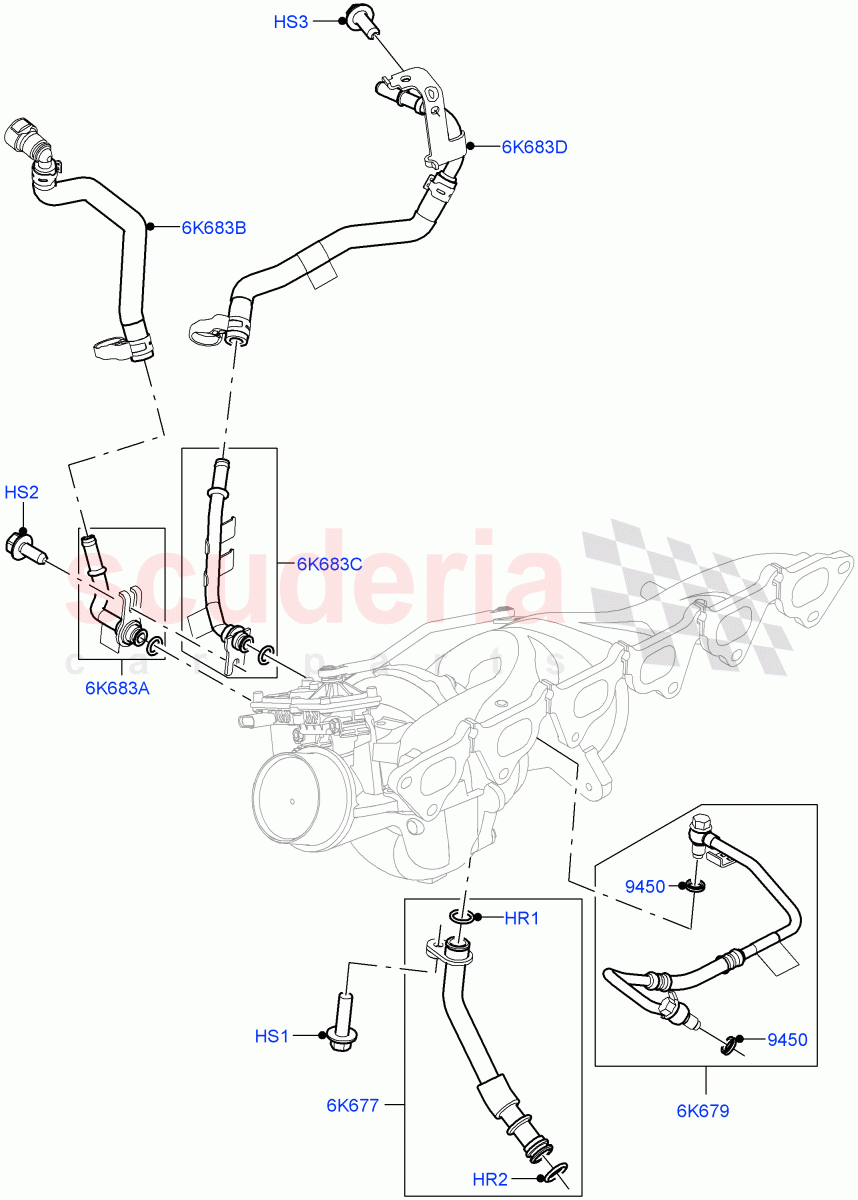

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR136779	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073688	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122683	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP500070	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073671	WASHER - COPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121388	PIPE - OIL DRAIN	Enquire	To Order
	LR150102	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121398	PIPE - OIL DRAIN	Enquire	To Order
	LR150103	PIPE - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR183050	CONNECTION - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135656	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR183052	HOSE - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124541	CONNECTION - WATER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	LR136779	RING - SEALING	LR136779 RING - SEALING 13.8 x 2.5, Drain, Upper / From: KA000001	-	1	Enquire
HR2	LR073688	O-RING	LR073688 O-RING 15 X 3MM, Drain, Lower / From: KA000001	-	1	Enquire
HS1	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: KA000001	-	1	Enquire
HS2	LR122683	SCREW	LR122683 SCREW M6 X 16MM / From: KA000001	-	1	Enquire
HS3	PYP500070	SCREW	PYP500070 SCREW 6 x 16MM, Hexagonal Head / From: KA000001	-	1	Enquire
6K677	LR121388	PIPE - OIL DRAIN	LR121388 PIPE - OIL DRAIN From: KA000001 / To: MA427806	-	1	Enquire
6K677	LR150102	TUBE	LR150102 TUBE From: MA427807	-	1	Enquire
6K679	LR121398	PIPE - OIL DRAIN	LR121398 PIPE - OIL DRAIN From: KA000001 / To: MA427806	-	1	Enquire
6K679	LR150103	PIPE - OIL DRAIN	LR150103 PIPE - OIL DRAIN From: MA427807	-	1	Enquire
6K683A	LR183050	CONNECTION - WATER	LR183050 CONNECTION - WATER Cooling For Turbocharger, Feed, Lower / From: KA000001	-	1	Enquire
6K683B	LR135656	HOSE - WATER	LR135656 HOSE - WATER Cooling For Turbocharger, Feed, Upper / From: KA000001	-	1	Enquire
6K683C	LR183052	HOSE - WATER OUTLET	LR183052 HOSE - WATER OUTLET Cooling For Turbocharger, Lower, Return / From: KA000001	-	1	Enquire
6K683D	LR124541	CONNECTION - WATER	LR124541 CONNECTION - WATER Cooling For Turbocharger, Return, Upper / From: KA000001	-	1	Enquire
9450	LR073671	WASHER - COPPER	LR073671 WASHER - COPPER Banjo Washer, Requires 2 Pcs Per Banjo-Bolt / From: KA000001	-	4	Enquire
