Engine Modules And Sensors (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Engine Modules And Sensors (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR081743 CLIP - PIPE Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR045542 NUT Enquire To Order
LR045542 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR123079 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR121389 MODULE - ENGINE CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
LR128656 BRACKET Enquire To Order
LR145238 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR121744 BRACKET - CONTROL MODULE Enquire To Order
Photo Part No Description Price (each) Stock
LR124659 BRACKET - ENGINE CONTROL MODULE Enquire To Order
View All

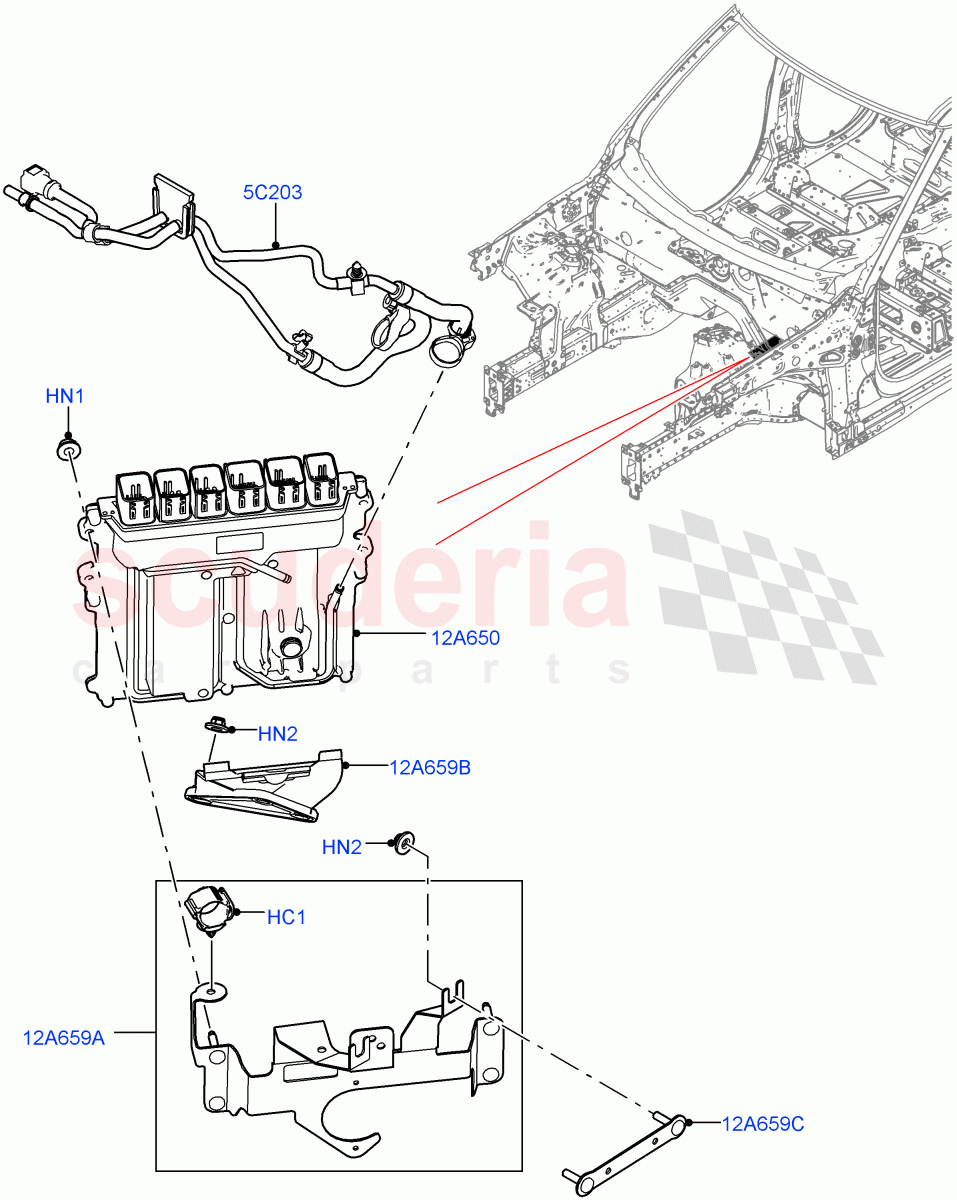

Engine Modules And Sensors (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR081743
CLIP - PIPE 		- 1 Enquire
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6, Module / From: KA000001 		- 4 Enquire
HN2 LR045542
NUT
Bracket, Lower, M6, Nut And Washer / From: KA000001 		- 3 Enquire
HN2 LR045542
NUT
Bracket, Lower, M6, Nut And Washer / From: KA000001 		- 2 Enquire
5C203 LR123079
HOSE - WATER
Connector, Engine Cooling System / From: KA000001 		- 1 Enquire
12A650 LR121389
MODULE - ENGINE CONTROL
Module - Engine Control / From: KA000001 		- 1 Enquire
12A659A LR128656
BRACKET
Engine Control Module (ECM), Upper / From: KA000001 / To: MA418461 		- 1 Enquire
12A659A LR145238
BRACKET
Engine Control Module (ECM), Upper / From: MA418462 		- 1 Enquire
12A659B LR121744
BRACKET - CONTROL MODULE
Engine Control Module (ECM), Lower / From: KA000001 		- 1 Enquire
12A659C LR124659
BRACKET - ENGINE CONTROL MODULE
Engine Control Module (ECM), To Body / From: KA000001 		- 1 Enquire
