Vacuum Control And Air Injection (3.0L Aj20P6 Petrol High, Rhd) ((V) Fromka000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Vacuum Control And Air Injection (3.0L AJ20P6 Petrol High, RHD) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR049402 CLIP - DOUBLE Enquire To Order
Photo Part No Description Price (each) Stock
LR049404 CLIP - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR073666 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR121355 PUMP - OIL & VACUUM Enquire To Order
LR164062 PUMP - OIL & VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR081604 GROMMET - BRAKE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR121789 HOSE - VACUUM CONTROL HARNESS Enquire To Order
LR136622 HOSE - VACUUM CONTROL HARNESS Enquire To Order
Photo Part No Description Price (each) Stock
LR120276 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR121354 TUBE - VACUUM Enquire To Order
View All

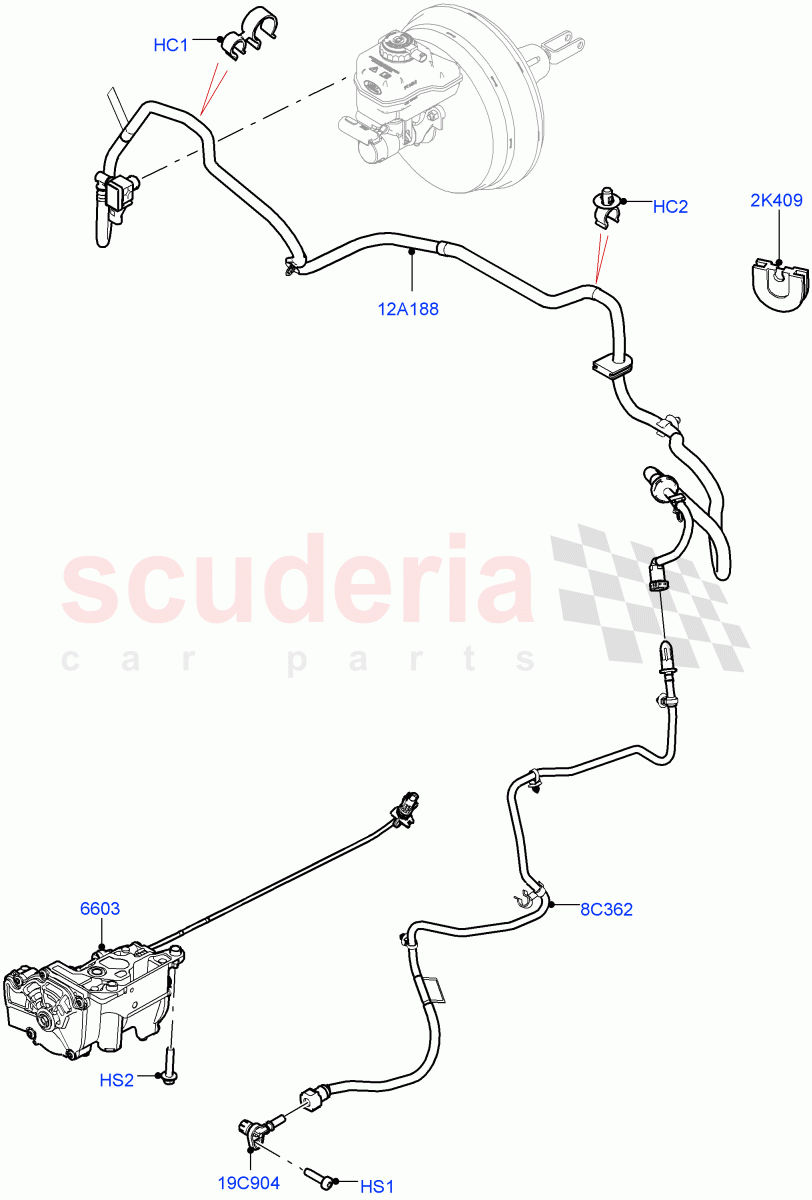

Vacuum Control And Air Injection (3.0L AJ20P6 Petrol High, RHD) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR049402
CLIP - DOUBLE
Double, To Vacuum Hose / From: KA000001 		- 1 Enquire
HC2 LR049404
CLIP - SPECIAL
Single, To Vacuum Hose / From: KA000001 		- 3 Enquire
HS1 LR073666
SCREW
M5 x 20MM, Vacuum Connector / From: KA000001 		- 1 Enquire
HS2 LR073676
SCREW
M8 x 35mm, To Vacuum Pump / From: KA000001 		- 3 Enquire
2K409 LR081604
GROMMET - BRAKE PIPE
From: KA000001 		- 1 Enquire
8C362 LR121789
HOSE - VACUUM CONTROL HARNESS
To Vacuum Pump / From: KA000001 / To: LA568511 		- 1 Enquire
8C362 LR136622
HOSE - VACUUM CONTROL HARNESS
To Vacuum Pump / From: LA568512 		- 1 Enquire
12A188 LR120276
HOSE - VACUUM
To Brake Booster / From: KA000001 		- 1 Enquire
19C904 LR121354
TUBE - VACUUM
From: KA000001 		- 1 Enquire
6603 LR121355
PUMP - OIL & VACUUM
From: KA000001 / To: MA456532 		- 1 Enquire
6603 LR164062
PUMP - OIL & VACUUM
From: MA456533 		- 1 Enquire
