Cooling System Pipes And Hoses (Intercooler) (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Cooling System Pipes And Hoses (Intercooler) (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR128187 STUD $6.28 To Order
Photo Part No Description Price (each) Stock
LR159963 PLUG - BLANKING $5.81 To Order
Photo Part No Description Price (each) Stock
LR121411 HOSE - WATER $58.75 To Order
LR147037 HOSE - WATER $65.26 To Order
Photo Part No Description Price (each) Stock
LR121759 HOSE - WATER $125.86 To Order
Photo Part No Description Price (each) Stock
LR133115 HOSE - WATER $132.50 To Order
LR137627 HOSE - WATER $140.55 To Order
Photo Part No Description Price (each) Stock
LR121755 HOSE - WATER $139.50 To Order
Photo Part No Description Price (each) Stock
LR121414 HOSE - THROTTLE BODY HEATER INLET $31.52 To Order
Photo Part No Description Price (each) Stock
LR123039 HOSE - HEATER WATER $50.50 To Order
LR134621 HOSE - HEATER WATER $48.10 To Order
LR137848 HOSE - HEATER WATER $57.03 To Order
View All

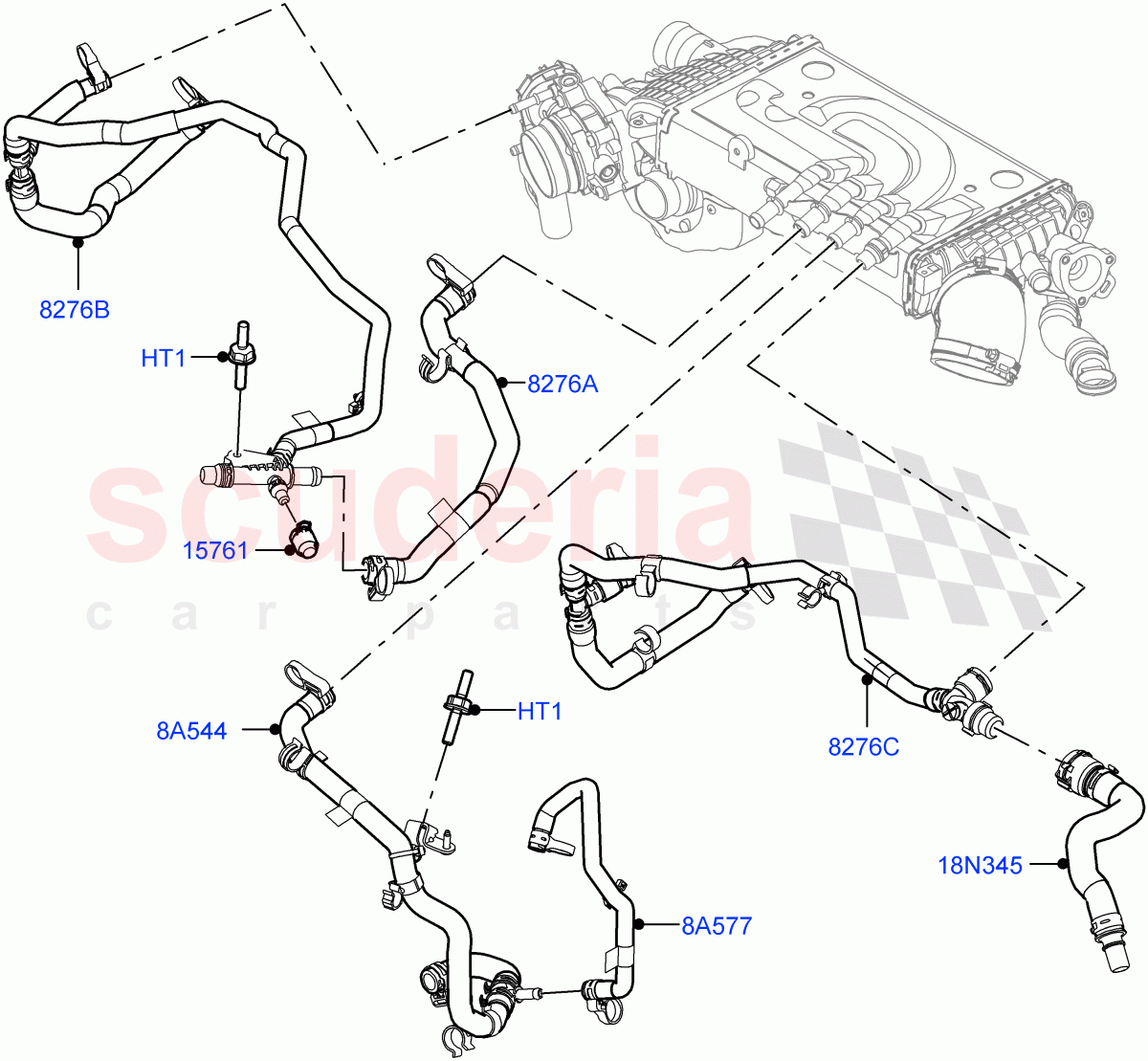

Cooling System Pipes And Hoses (Intercooler) (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HT1 LR128187
STUD
Hexagonal Head, M6 X 22 + M6 X 18 / From: KA000001 		$6.28 2
8A544 LR121755
HOSE - WATER
Water Charge Air Cooler / From: KA000001 		$139.50 1
8A577 LR121414
HOSE - THROTTLE BODY HEATER INLET
Heater Hose To Throttle Body / From: KA000001 		$31.52 1
18N345 LR123039
HOSE - HEATER WATER
Heater Water Control / From: KA000001 / To: KA567510 		$50.50 1
18N345 LR134621
HOSE - HEATER WATER
Heater Water Control / From: KA567511 / To: LA582264 		$48.10 1
18N345 LR137848
HOSE - HEATER WATER
Heater Water Control / From: LA582265 		$57.03 1
8276A LR121411
HOSE - WATER
Intercooler Outlet / From: KA000001 / To: LA413163 		$58.75 1
8276A LR147037
HOSE - WATER
Intercooler Outlet / From: LA413164 		$65.26 1
8276B LR121759
HOSE - WATER
Turbo Coolant Pipe / From: KA000001 		$125.86 1
8276C LR133115
HOSE - WATER
Intercooler Inlet / From: KA000001 / To: LA582591 		$132.50 1
8276C LR137627
HOSE - WATER
Intercooler Inlet / From: LA582592 		$140.55 1
15761 LR159963
PLUG - BLANKING
From: KA000001 		$5.81 1
