View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR121117	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095785	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123928	HEAT SHIELD - CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122696	HOSE - COMPRESSED AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121780	VALVE - NON RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122695	HOSE - INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075629	SENSOR - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123081	HOSE - COMPRESSED AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149859	HOSE - AIR	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR121117	BOLT	LR121117 BOLT M6 X 25MM, Sensor - Air Charge Temperature / From: KA000001	-	1	Enquire
HR1	LR095785	O-RING IN STOCK	LR095785 O-RING 11.3 x 2.5MM, Sensor / From: KA000001 IN STOCK	-	1	Enquire
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: KA000001	-	2	Enquire
5F227	LR123928	HEAT SHIELD - CONNECTOR	LR123928 HEAT SHIELD - CONNECTOR Flexible / From: KA000001	-	1	Enquire
6K683	LR122696	HOSE - COMPRESSED AIR	LR122696 HOSE - COMPRESSED AIR Turbocharger / From: KA000001	-	1	Enquire
6K769A	LR123081	HOSE - COMPRESSED AIR	LR123081 HOSE - COMPRESSED AIR Electronic Compressor Bypass Valve / From: KA000001	-	1	Enquire
6K769B	LR149859	HOSE - AIR	LR149859 HOSE - AIR Electronic Compressor Bypass Valve / From: LA413691	-	1	Enquire
9B289	LR121780	VALVE - NON RETURN	LR121780 VALVE - NON RETURN From: KA000001	-	1	Enquire
9B613	LR122695	HOSE - INTERCOOLER	LR122695 HOSE - INTERCOOLER Turbocharger Outlet / From: KA000001	-	1	Enquire
9J460	LR075629	SENSOR - TEMPERATURE	LR075629 SENSOR - TEMPERATURE Temperature / From: KA000001	-	1	Enquire
9V442	LR121742	SENSOR - AIR CHARGE	LR121742 SENSOR - AIR CHARGE From: KA000001 / To: KA563692	-	1	Enquire
9V442	LR132638	SENSOR - AIR CHARGE	LR132638 SENSOR - AIR CHARGE From: KA563693	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

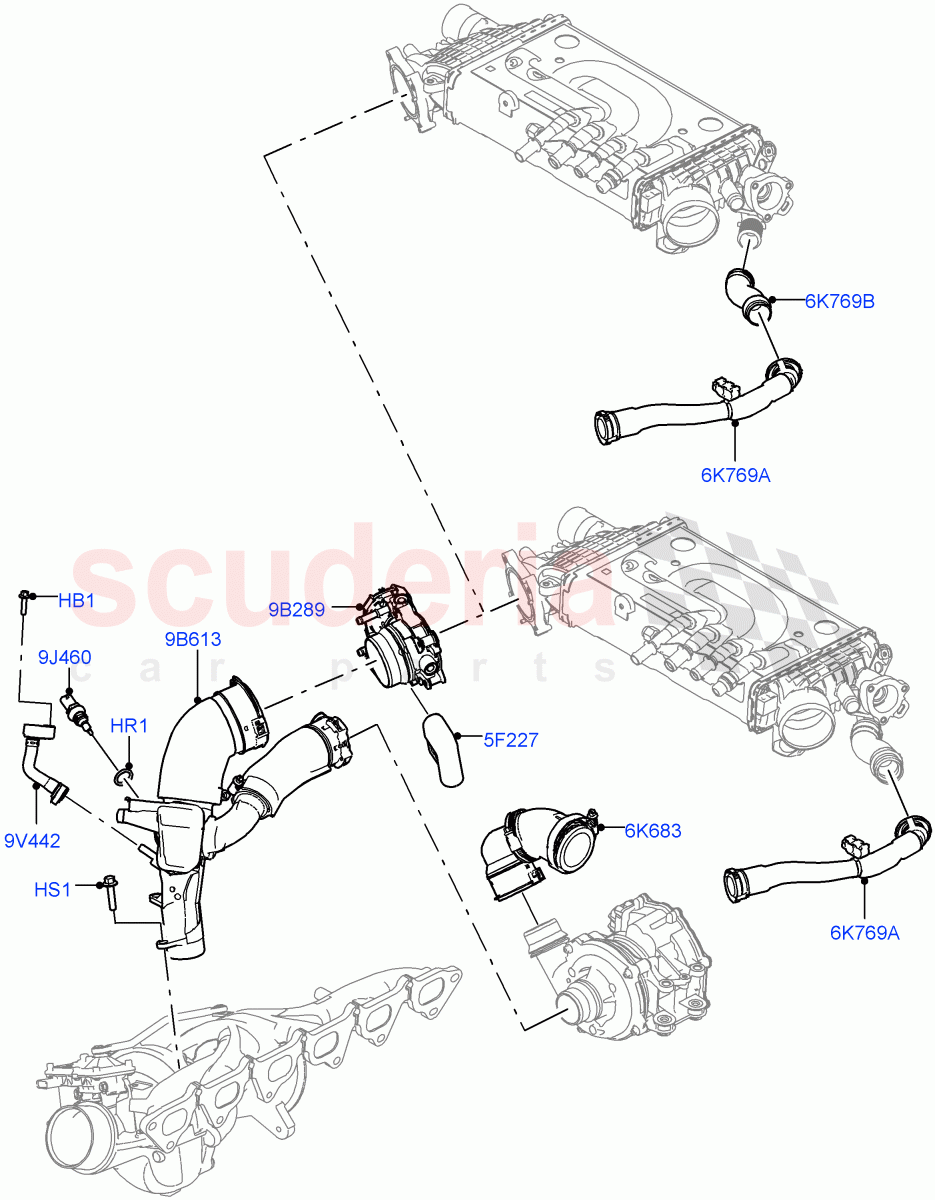

Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]
