Inlet Manifold (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Inlet Manifold (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR125667 CLIP - TRIM $1.61 To Order
Photo Part No Description Price (each) Stock
LR095783 O-RING $4.47 IN STOCK
Photo Part No Description Price (each) Stock
RYP500810 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
LR125867 OIL SPILL GAITER $12.52 To Order
Photo Part No Description Price (each) Stock
LR121255 MANIFOLD - INLET $913.72 To Order
Photo Part No Description Price (each) Stock
LR091766 GASKET - INTAKE MANIFOLD $11.79 IN STOCK
Photo Part No Description Price (each) Stock
LR121736 COVER - ENGINE TOP $290.11 To Order
Photo Part No Description Price (each) Stock
LR121740 STUD - BALL $7.00 To Order
Photo Part No Description Price (each) Stock
LR074085 BOLT - SPECIAL $4.84 To Order
Photo Part No Description Price (each) Stock
LR123029 INSULATOR - CYLINDER HEAD $127.79 To Order
LR139515 INSULATOR - CYLINDER HEAD $62.37 To Order
Photo Part No Description Price (each) Stock
LR074073 GASKET - THROTTLE $15.25 To Order
Photo Part No Description Price (each) Stock
LR122989 SENSOR - AIR TEMPERATURE & PRESSURE $48.11 To Order
View All

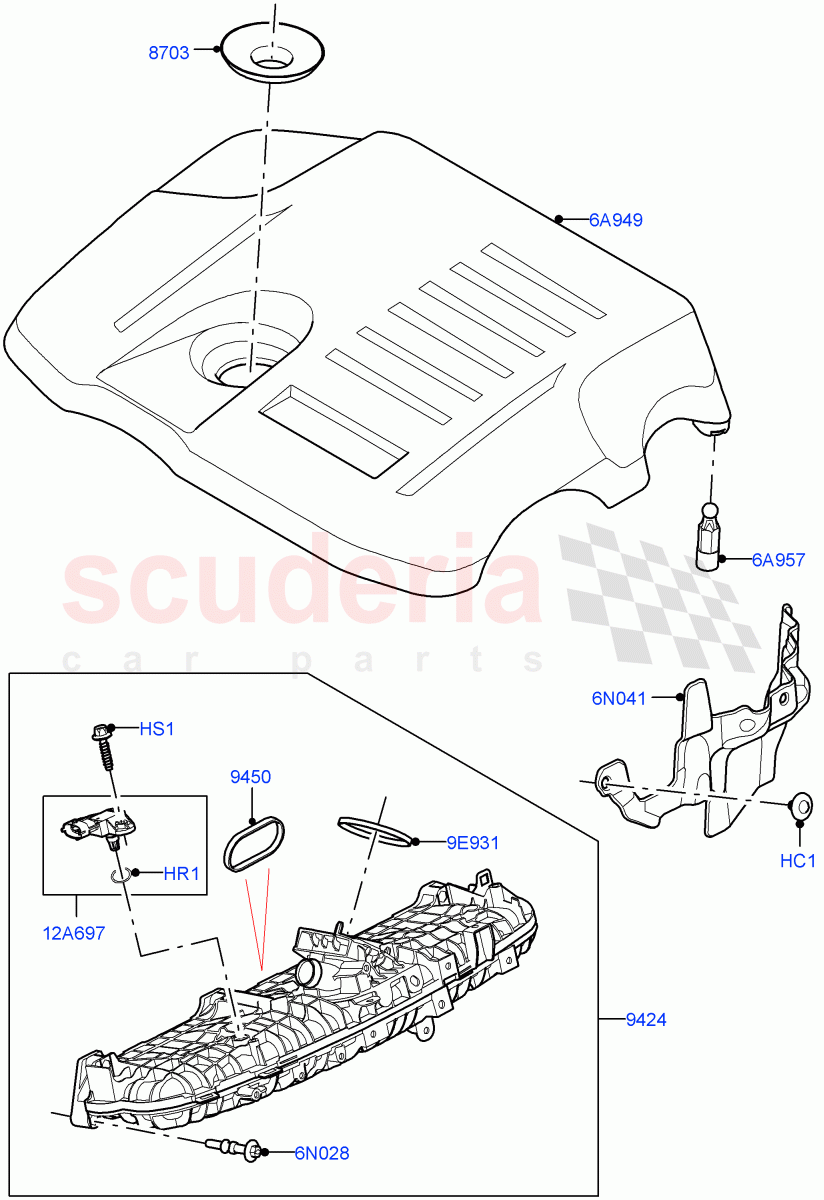

Inlet Manifold (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR125667
CLIP - TRIM
5.8 X 4.5-8, Insulator / From: KA000001 		$1.61 2
HR1 LR095783
O-RING
7.5MM, MAP Sensor / From: KA000001
IN STOCK 		$4.47 1
HS1 RYP500810
SCREW
Hexagonal Head, M5 x 20MM, MAP Sensor / From: KA000001 		$0.59 1
6A949 LR121736
COVER - ENGINE TOP
Engine / From: KA000001 		$290.11 1
6A957 LR121740
STUD - BALL
Ball Stud, Engine Cover / From: KA000001 		$7.00 1
6N028 LR074085
BOLT - SPECIAL
M6 x 42MM, Manifold To Cylinder Head / From: KA000001 		$4.84 9
6N041 LR123029
INSULATOR - CYLINDER HEAD
LH Side / From: KA000001 / To: LA593106 		$127.79 1
6N041 LR139515
INSULATOR - CYLINDER HEAD
LH Side / From: LA593107 		$62.37 1
9E931 LR074073
GASKET - THROTTLE
Throttle Body To Intake / From: KA000001 		$15.25 1
12A697 LR122989
SENSOR - AIR TEMPERATURE & PRESSURE
Pressure / From: KA000001 		$48.11 1
8703 LR125867
OIL SPILL GAITER
Oil Spill / From: KA000001 		$12.52 1
9424 LR121255
MANIFOLD - INLET
From: KA000001 		$913.72 1
9450 LR091766
GASKET - INTAKE MANIFOLD
Inlet Manifold / From: KA000001
IN STOCK 		$11.79 6
