Brake And Clutch Controls (With Petrol Engines) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Brake And Clutch Controls (With Petrol Engines)

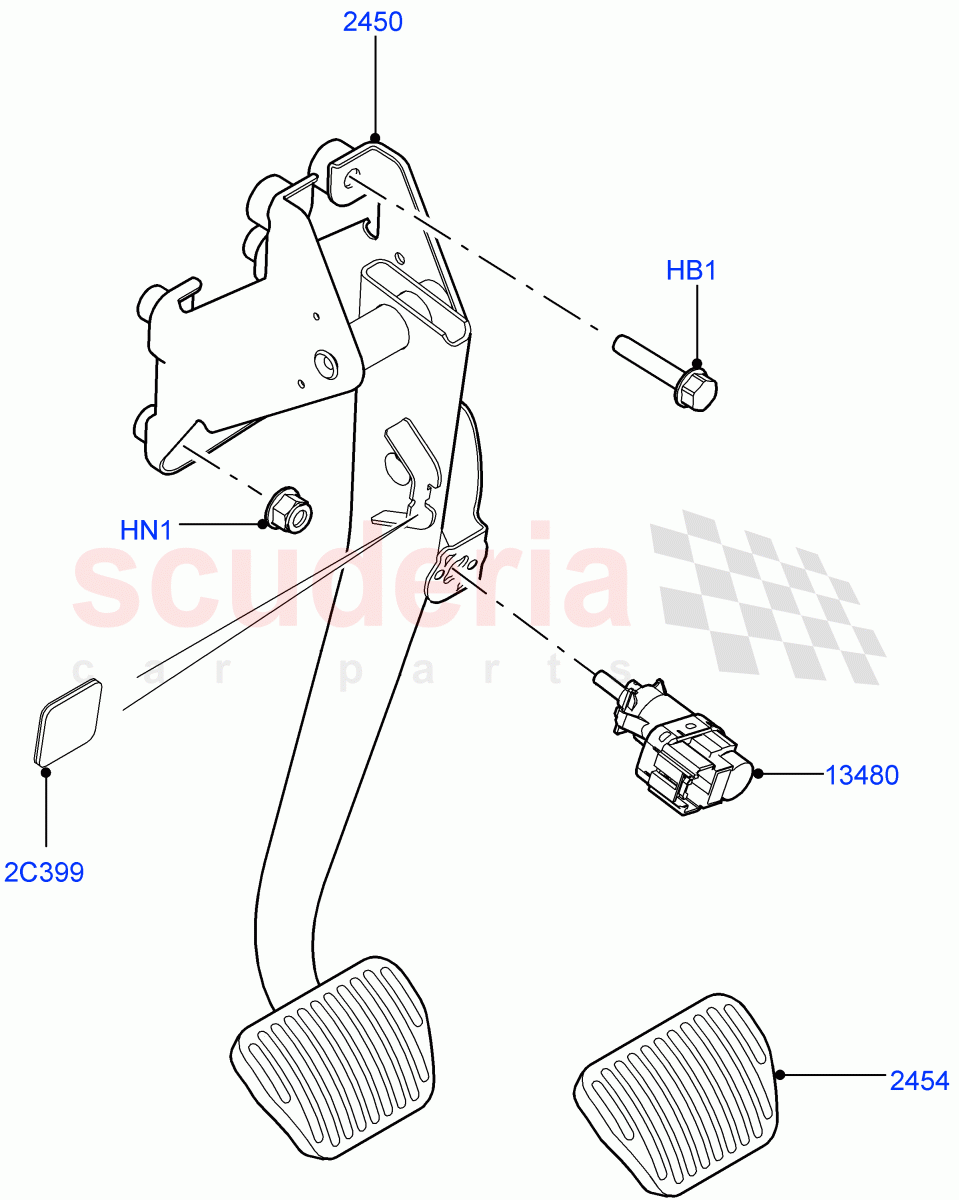

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR037835	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY108046	NUT M8 FLANGED HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037819	PEDAL AND BRACKET - BRAKE	Enquire	To Order
	LR037820	PEDAL AND BRACKET - BRAKE	Enquire	To Order
	LR050524	PEDAL AND BRACKET - BRAKE	Enquire	To Order

...and 31 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR037836	PAD - PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XKB500110	SWITCH - STOP LIGHT	Enquire	To Order
	LR072647	SWITCH - STOP LIGHT	Enquire	To Order
	LR116714	SWITCH - STOP LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061903	SHIM - BRAKE SWITCH	Enquire	To Order
	LR068532	SHIM - BRAKE SWITCH	Enquire	To Order
	LR079259	SHIM - BRAKE SWITCH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR037835	BOLT	LR037835 BOLT Hexagonal Head, M8 x 40MM	-	2	Enquire
HN1	FY108046	NUT M8 FLANGED HEX HEAD	FY108046 NUT M8 FLANGED HEX HEAD M8	-	4	Enquire
2C399	LR061903	SHIM - BRAKE SWITCH	LR061903 SHIM - BRAKE SWITCH Stop Lamp Switch / To: FA205301	-	1	Enquire
2C399	LR068532	SHIM - BRAKE SWITCH	LR068532 SHIM - BRAKE SWITCH Stop Lamp Switch / From: FA205302 / To: GA246856	-	1	Enquire
2C399	LR079259	SHIM - BRAKE SWITCH	LR079259 SHIM - BRAKE SWITCH Stop Lamp Switch / From: GA246857 / To: GA267154	-	1	Enquire
2450	LR037819	PEDAL AND BRACKET - BRAKE	LR037819 PEDAL AND BRACKET - BRAKE LHD / Brake / To: DA999999	-	1	Enquire
2450	LR037820	PEDAL AND BRACKET - BRAKE	LR037820 PEDAL AND BRACKET - BRAKE RHD / Brake / To: DA999999	-	1	Enquire
2450	LR050524	PEDAL AND BRACKET - BRAKE	LR050524 PEDAL AND BRACKET - BRAKE 3.0L DOHC GDI SC V6 PETROL, LHD / Brake / From: EA000001 / To: EA151841	-	1	Enquire
2450	LR050526	PEDAL AND BRACKET - BRAKE	LR050526 PEDAL AND BRACKET - BRAKE 5.0L OHC SGDI NA V8 Petrol - AJ133, RHD / Brake / From: EA000001 / To: EA151841	-	1	Enquire
2450	LR037820	PEDAL AND BRACKET - BRAKE	LR037820 PEDAL AND BRACKET - BRAKE 5.0L OHC SGDI SC V8 Petrol - AJ133, RHD / Brake / From: EA000001 / To: EA151841	-	1	Enquire
2450	LR037819	PEDAL AND BRACKET - BRAKE	LR037819 PEDAL AND BRACKET - BRAKE 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD / Brake / From: EA000001 / To: EA151841	-	1	Enquire
2450	LR058078	PEDAL AND BRACKET - BRAKE	LR058078 PEDAL AND BRACKET - BRAKE 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD / Brake / From: EA151842 / To: FA999999	-	1	Enquire
2450	LR058079	PEDAL AND BRACKET - BRAKE	LR058079 PEDAL AND BRACKET - BRAKE 5.0L OHC SGDI NA V8 Petrol - AJ133, RHD / Brake / From: EA151842 / To: FA999999	-	1	Enquire
2450	LR058076	PEDAL AND BRACKET - BRAKE	LR058076 PEDAL AND BRACKET - BRAKE 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD / Brake / From: EA151842 / To: FA999999	-	1	Enquire
2450	LR058077	PEDAL AND BRACKET - BRAKE	LR058077 PEDAL AND BRACKET - BRAKE 5.0L OHC SGDI SC V8 Petrol - AJ133, RHD / Brake / From: EA151842 / To: FA999999	-	1	Enquire
2450	LR084090	PEDAL AND BRACKET - BRAKE	LR084090 PEDAL AND BRACKET - BRAKE (+)"CDN/USA", LHD, Standard Finish Ext Foot Pedal / (+)"NAS", Brake / From: GA269716 / To: HA999999	-	1	Enquire
2450	LR112307	PEDAL AND BRACKET - BRAKE	LR112307 PEDAL AND BRACKET - BRAKE (+)"CDN/USA", LHD, Unique Metal Finish Ext Foot Pedal / (+)"NAS", Brake / From: GA269716 / To: HA999999	-	1	Enquire
2450	LR058076	PEDAL AND BRACKET - BRAKE	LR058076 PEDAL AND BRACKET - BRAKE Front Disc And Caliper Size 20, LHD / Brake / From: GA000001 / To: GA999999	-	1	Enquire
2450	LR058076	PEDAL AND BRACKET - BRAKE	LR058076 PEDAL AND BRACKET - BRAKE LHD / Brake / From: HA000001 / To: HA999999	-	1	Enquire
2450	LR058078	PEDAL AND BRACKET - BRAKE	LR058078 PEDAL AND BRACKET - BRAKE Front Disc And Caliper Size 19, LHD / Brake / From: GA000001 / To: GA999999	-	1	Enquire
2450	LR058077	PEDAL AND BRACKET - BRAKE	LR058077 PEDAL AND BRACKET - BRAKE Front Disc And Caliper Size 20, RHD / Brake / From: GA000001 / To: GA999999	-	1	Enquire
2450	LR058077	PEDAL AND BRACKET - BRAKE	LR058077 PEDAL AND BRACKET - BRAKE RHD / Brake / From: HA000001 / To: HA999999	-	1	Enquire
2450	LR058079	PEDAL AND BRACKET - BRAKE	LR058079 PEDAL AND BRACKET - BRAKE Front Disc And Caliper Size 19, RHD / Brake / From: GA000001 / To: GA999999	-	1	Enquire
2450	LR058076	PEDAL AND BRACKET - BRAKE	LR058076 PEDAL AND BRACKET - BRAKE 8HP Gen3 Hybrid Trans, LHD / Brake / From: JA000001 / To: JA999999	-	1	Enquire
2450	LR058077	PEDAL AND BRACKET - BRAKE	LR058077 PEDAL AND BRACKET - BRAKE 8HP Gen3 Hybrid Trans, RHD / Brake / From: JA000001 / To: JA999999	-	1	Enquire
2450	LR081599	PEDAL AND BRACKET - BRAKE	LR081599 PEDAL AND BRACKET - BRAKE 8 Speed Auto Trans ZF 8HP45, LHD / Brake / From: JA000001 / To: JA999999	-	1	Enquire
2450	LR081600	PEDAL AND BRACKET - BRAKE	LR081600 PEDAL AND BRACKET - BRAKE 8 Speed Auto Trans ZF 8HP70 4WD, RHD / Brake / From: JA000001 / To: JA999999	-	1	Enquire
2450	LR081599	PEDAL AND BRACKET - BRAKE	LR081599 PEDAL AND BRACKET - BRAKE LHD, Less Electric Engine Battery / Brake / From: KA000001 / To: LA593105	-	1	Enquire
2450	LR081600	PEDAL AND BRACKET - BRAKE	LR081600 PEDAL AND BRACKET - BRAKE Less Electric Engine Battery, RHD / Brake / From: KA000001 / To: LA593105	-	1	Enquire
2450	LR058077	PEDAL AND BRACKET - BRAKE	LR058077 PEDAL AND BRACKET - BRAKE Electric Engine Battery-PHEV, RHD / Brake / From: KA000001 / To: MA434356	-	1	Enquire
2450	LR058076	PEDAL AND BRACKET - BRAKE	LR058076 PEDAL AND BRACKET - BRAKE Electric Engine Battery-PHEV, LHD / Brake / From: KA000001 / To: MA434356	-	1	Enquire
2450	LR129225	PEDAL AND BRACKET - BRAKE	LR129225 PEDAL AND BRACKET - BRAKE LHD, Less Electric Engine Battery / Brake / From: LA593106 / To: MA448790	-	1	Enquire
2450	LR129227	PEDAL AND BRACKET - BRAKE	LR129227 PEDAL AND BRACKET - BRAKE Electric Engine Battery-MHEV, RHD / Brake / From: LA593106 / To: MA448790	-	1	Enquire
2450	LR146245	PEDAL AND BRACKET - BRAKE	LR146245 PEDAL AND BRACKET - BRAKE Electric Engine Battery-PHEV, LHD / Brake / From: MA434357 / To: MA448790	-	1	Enquire
2450	LR146246	PEDAL AND BRACKET - BRAKE	LR146246 PEDAL AND BRACKET - BRAKE Electric Engine Battery-PHEV, RHD / Brake / From: MA434357 / To: MA448790	-	1	Enquire
2450	LR161099	PEDAL AND BRACKET - BRAKE	LR161099 PEDAL AND BRACKET - BRAKE LHD, Less Electric Engine Battery / Brake / From: MA448791	-	1	Enquire
2450	LR161100	PEDAL AND BRACKET - BRAKE	LR161100 PEDAL AND BRACKET - BRAKE Less Electric Engine Battery, RHD / Brake / From: MA448791	-	1	Enquire
2450	LR161097	PEDAL AND BRACKET - BRAKE	LR161097 PEDAL AND BRACKET - BRAKE Electric Engine Battery-PHEV, LHD / Brake / From: MA448791	-	1	Enquire
2450	LR161098	PEDAL AND BRACKET - BRAKE	LR161098 PEDAL AND BRACKET - BRAKE Electric Engine Battery-PHEV, RHD / Brake / From: MA448791	-	1	Enquire
2454	LR037836	PAD - PEDAL	LR037836 PAD - PEDAL Standard Finish Ext Foot Pedal	-	1	Enquire
13480	XKB500110	SWITCH - STOP LIGHT	XKB500110 SWITCH - STOP LIGHT To: GA267154	-	1	Enquire
13480	LR072647	SWITCH - STOP LIGHT	LR072647 SWITCH - STOP LIGHT From: GA267155 / To: KA520910	-	1	Enquire
13480	LR116714	SWITCH - STOP LIGHT	LR116714 SWITCH - STOP LIGHT From: KA520911	-	1	Enquire
