Rear Lamps of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Rear Lamps

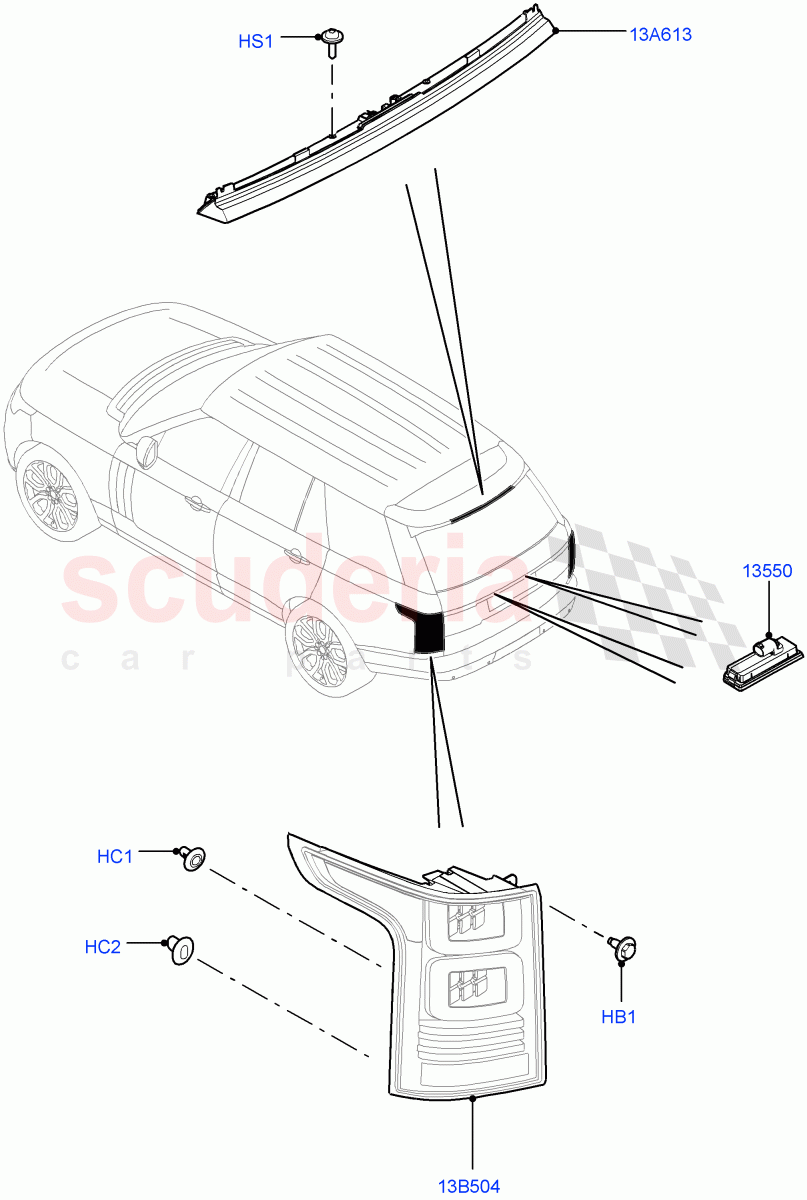

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033409	BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD	Enquire	To Order
	DYP106690	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000081	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000080	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001590	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037612	LAMP - LICENCE PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034231	LAMP - REAR - HIGH MOUNTED	Enquire	To Order
	LR107601	LAMP - REAR - HIGH MOUNTED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034235	LAMP - REAR- STOP AND FLASHER	Enquire	To Order
	LR034238	LAMP - REAR- STOP AND FLASHER	Enquire	To Order
	LR034237	LAMP - REAR- STOP AND FLASHER	Enquire	To Order

...and 33 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR033409	BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD	LR033409 BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD M6 X 13.5MM / To: EA129012	-	2	Enquire
HB1	DYP106690	SCREW	DYP106690 SCREW M6 X 20MM, Transmission Selector / From: EA129013	-	4	Enquire
HC1	LR000081	CLIP - RETAINING	LR000081 CLIP - RETAINING M8 x 1.0MM	-	1	Enquire
HC2	LR000080	CLIP	LR000080 CLIP 8 x 12MM	-	1	Enquire
HS1	LR001590	SCREW AND WASHER	LR001590 SCREW AND WASHER 4.8 X 19MM, high mounted stop lamp, Torx	-	4	Enquire
13A613	LR034231	LAMP - REAR - HIGH MOUNTED	LR034231 LAMP - REAR - HIGH MOUNTED To: HA356210	-	1	Enquire
13A613	LR107601	LAMP - REAR - HIGH MOUNTED	LR107601 LAMP - REAR - HIGH MOUNTED From: HA356211	-	1	Enquire
13B504	LR034235	LAMP - REAR- STOP AND FLASHER	LR034235 LAMP - REAR- STOP AND FLASHER (-)"CDN/MEX/USA", Less Side Marker Lamps / RH / To: EA132813	-	1	Enquire
13B504	LR034238	LAMP - REAR- STOP AND FLASHER	LR034238 LAMP - REAR- STOP AND FLASHER (+)"CDN/MEX/USA", With Side Marker Lamps / RH / To: EA132813	-	1	Enquire
13B504	LR034237	LAMP - REAR- STOP AND FLASHER	LR034237 LAMP - REAR- STOP AND FLASHER (-)"CDN/MEX/USA", Less Side Marker Lamps / LH / To: EA132813	-	1	Enquire
13B504	LR034239	LAMP - REAR- STOP AND FLASHER	LR034239 LAMP - REAR- STOP AND FLASHER (+)"CDN/MEX/USA", With Side Marker Lamps / LH / To: EA132813	-	1	Enquire
13B504	LR055103	LAMP - REAR- STOP AND FLASHER	LR055103 LAMP - REAR- STOP AND FLASHER (-)"CDN/MEX/USA", Less Side Marker Lamps, Rear Tail Lamp Lens - Red / RH / From: EA132814 / To: EA153411	-	1	Enquire
13B504	LR055104	LAMP - REAR- STOP AND FLASHER	LR055104 LAMP - REAR- STOP AND FLASHER (+)"CDN/MEX/USA", Rear Tail Lamp Lens - Red, With Side Marker Lamps / RH / From: EA132814 / To: EA153411	-	1	Enquire
13B504	LR055106	LAMP - REAR- STOP AND FLASHER	LR055106 LAMP - REAR- STOP AND FLASHER (-)"CDN/MEX/USA", Less Side Marker Lamps, Rear Tail Lamp Lens - Red / LH / From: EA132814 / To: EA153411	-	1	Enquire
13B504	LR055105	LAMP - REAR- STOP AND FLASHER	LR055105 LAMP - REAR- STOP AND FLASHER (+)"CDN/MEX/USA", Rear Tail Lamp Lens - Red, With Side Marker Lamps / LH / From: EA132814 / To: EA153411	-	1	Enquire
13B504	LR061659	LAMP - REAR- STOP AND FLASHER	LR061659 LAMP - REAR- STOP AND FLASHER (-)"CDN/USA", Less Side Marker Lamps, Rear Tail Lamp Lens - Red / RH / From: EA153412 / To: HA999999	-	1	Enquire
13B504	LR061572	LAMP - REAR- STOP AND FLASHER	LR061572 LAMP - REAR- STOP AND FLASHER (+)"CDN/USA", Rear Tail Lamp Lens - Red, With Side Marker Lamps / RH / From: EA153412 / To: HA999999	-	1	Enquire
13B504	LR061682	LAMP - REAR- STOP AND FLASHER	LR061682 LAMP - REAR- STOP AND FLASHER (-)"CDN/USA", Less Side Marker Lamps, Rear Tail Lamp Lens - Red / LH / From: EA153412 / To: HA999999	-	1	Enquire
13B504	LR061584	LAMP - REAR- STOP AND FLASHER	LR061584 LAMP - REAR- STOP AND FLASHER (+)"CDN/USA", Rear Tail Lamp Lens - Red, With Side Marker Lamps / LH / From: EA153412 / To: HA999999	-	1	Enquire
13B504	LR053536	LAMP - REAR- STOP AND FLASHER	LR053536 LAMP - REAR- STOP AND FLASHER (-)"CDN/MEX/USA", Less Side Marker Lamps, Rear Tail Lamp Lens - Clear / RH / From: EA000001 / To: HA999999	-	1	Enquire
13B504	LR053537	LAMP - REAR- STOP AND FLASHER	LR053537 LAMP - REAR- STOP AND FLASHER (+)"CDN/MEX/USA", Rear Tail Lamp Lens - Clear, With Side Marker Lamps / RH / From: EA000001 / To: HA999999	-	1	Enquire
13B504	LR053540	LAMP - REAR- STOP AND FLASHER	LR053540 LAMP - REAR- STOP AND FLASHER (-)"CDN/MEX/USA", Less Side Marker Lamps, Rear Tail Lamp Lens - Clear / LH / From: EA000001 / To: HA999999	-	1	Enquire
13B504	LR053541	LAMP - REAR- STOP AND FLASHER	LR053541 LAMP - REAR- STOP AND FLASHER (+)"CDN/MEX/USA", Rear Tail Lamp Lens - Clear, With Side Marker Lamps / LH / From: EA000001 / To: HA999999	-	1	Enquire
13B504	LR098346	LAMP - REAR- STOP AND FLASHER	LR098346 LAMP - REAR- STOP AND FLASHER H/Lamp Operation LHD-Right Justify, Less Side Marker Lamps, Tail Lamps - Dark / RH / From: JA000001 / To: JA999999	-	1	Enquire
13B504	LR098346	LAMP - REAR- STOP AND FLASHER	LR098346 LAMP - REAR- STOP AND FLASHER H/Lamp Operation LHD-Right Justify, Tail Lamps - Dark / RH / From: KA000001 / To: KA563692	-	1	Enquire
13B504	LR098348	LAMP - REAR- STOP AND FLASHER	LR098348 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Dark, With Side Marker Lamps / RH / From: JA000001 / To: JA999999	-	1	Enquire
13B504	LR098348	LAMP - REAR- STOP AND FLASHER	LR098348 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Dark / RH / From: KA000001 / To: KA563215	-	1	Enquire
13B504	LR098353	LAMP - REAR- STOP AND FLASHER	LR098353 LAMP - REAR- STOP AND FLASHER H/Lamp Operation LHD-Right Justify, Less Side Marker Lamps, Tail Lamps - Dark / LH / From: JA000001 / To: JA999999	-	1	Enquire
13B504	LR098353	LAMP - REAR- STOP AND FLASHER	LR098353 LAMP - REAR- STOP AND FLASHER H/Lamp Operation RHD - Left Justify, Tail Lamps - Dark / LH / From: KA000001 / To: KA563692	-	1	Enquire
13B504	LR098356	LAMP - REAR- STOP AND FLASHER	LR098356 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Dark, With Side Marker Lamps / LH / From: JA000001 / To: JA999999	-	1	Enquire
13B504	LR098356	LAMP - REAR- STOP AND FLASHER	LR098356 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Dark / LH / From: KA000001 / To: KA563215	-	1	Enquire
13B504	LR103584	LAMP - REAR- STOP AND FLASHER	LR103584 LAMP - REAR- STOP AND FLASHER H/Lamp Operation LHD-Right Justify, Less Head Impact Crash Criteria, Tail Lamps - Clear / RH / From: JA000001 / To: KA563221	-	1	Enquire
13B504	LR103586	LAMP - REAR- STOP AND FLASHER	LR103586 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Clear, With Head Impact Crash Criteria / RH / From: JA000001 / To: LA572272	-	1	Enquire
13B504	LR103587	LAMP - REAR- STOP AND FLASHER	LR103587 LAMP - REAR- STOP AND FLASHER H/Lamp Operation RHD - Left Justify, Less Head Impact Crash Criteria, Tail Lamps - Clear / LH / From: JA000001 / To: KA563221	-	1	Enquire
13B504	LR103589	LAMP - REAR- STOP AND FLASHER	LR103589 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Clear, With Head Impact Crash Criteria / LH / From: JA000001 / To: LA572272	-	1	Enquire
13B504	LR135412	LAMP - REAR- STOP AND FLASHER	LR135412 LAMP - REAR- STOP AND FLASHER H/Lamp Operation RHD - Left Justify, Tail Lamps - Dark / RH / From: KA563693	-	1	Enquire
13B504	LR135417	LAMP - REAR- STOP AND FLASHER	LR135417 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Dark / RH / From: KA563216	-	1	Enquire
13B504	LR135422	LAMP - REAR- STOP AND FLASHER	LR135422 LAMP - REAR- STOP AND FLASHER H/Lamp Operation RHD - Left Justify, Tail Lamps - Dark / LH / From: KA563693	-	1	Enquire
13B504	LR135424	LAMP - REAR- STOP AND FLASHER	LR135424 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Dark / LH / From: KA563216	-	1	Enquire
13B504	LR135425	LAMP - REAR- STOP AND FLASHER	LR135425 LAMP - REAR- STOP AND FLASHER H/Lamp Operation RHD - Left Justify, Tail Lamps - Clear / RH / From: KA563222	-	1	Enquire
13B504	LR135428	LAMP - REAR- STOP AND FLASHER	LR135428 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Clear / RH / From: LA572273	-	1	Enquire
13B504	LR135433	LAMP - REAR- STOP AND FLASHER	LR135433 LAMP - REAR- STOP AND FLASHER H/Lamp Operation RHD - Left Justify, Tail Lamps - Clear / LH / From: KA563222	-	1	Enquire
13B504	LR135437	LAMP - REAR- STOP AND FLASHER	LR135437 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Clear / LH / From: LA572273	-	1	Enquire
13550	LR037612	LAMP - LICENCE PLATE	LR037612 LAMP - LICENCE PLATE	-	2	Enquire
