Rear Doors, Hinges & Weatherstrips (Finisher And Seals) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Rear Doors, Hinges & Weatherstrips (Finisher And Seals)

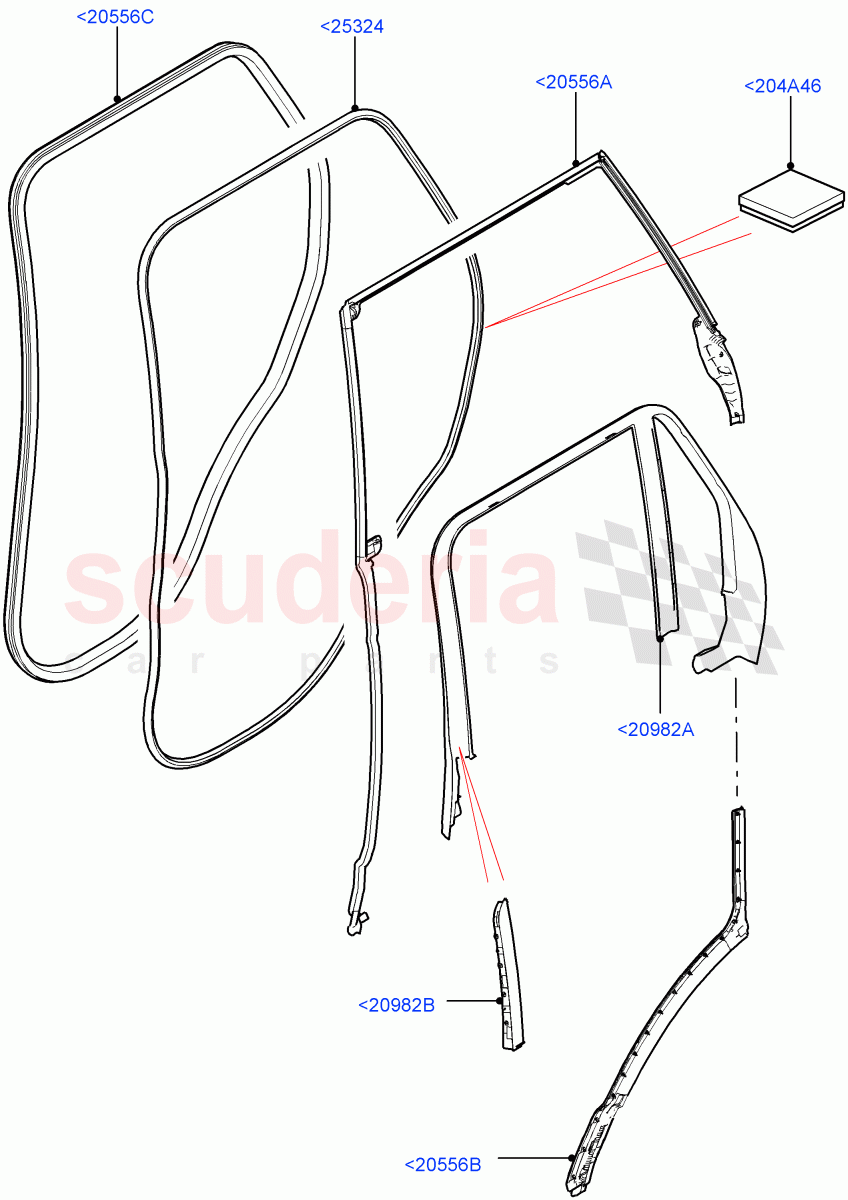

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034110	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR049236	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR034110	SEAL - DOOR FRONT AND REAR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR084492	PATCH - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034113	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR034112	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR046751	SEAL - DOOR FRONT AND REAR	Enquire	To Order

...and 27 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR034116	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR034117	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR046753	SEAL - DOOR FRONT AND REAR	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR034111	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR048411	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR049241	SEAL - DOOR FRONT AND REAR	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR033672	MOULDING - DOOR WINDOW FRAME	Enquire	To Order
	LR033673	MOULDING - DOOR WINDOW FRAME	Enquire	To Order
	LR048597	MOULDING - DOOR WINDOW FRAME	Enquire	To Order

...and 17 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR049232	MOULDING - DOOR WINDOW FRAME	Enquire	To Order
	LR049231	MOULDING - DOOR WINDOW FRAME	Enquire	To Order
	LR049231	MOULDING - DOOR WINDOW FRAME	Enquire	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<204A46	LR084492	PATCH - SEALING	LR084492 PATCH - SEALING Service Kit	-	1	Enquire
<20556A	LR034113	SEAL - DOOR FRONT AND REAR	LR034113 SEAL - DOOR FRONT AND REAR Standard Wheelbase / LH, Door Upper / To: DA106915	-	1	Enquire
<20556A	LR034112	SEAL - DOOR FRONT AND REAR	LR034112 SEAL - DOOR FRONT AND REAR Standard Wheelbase / RH, Door Upper / To: DA106915	-	1	Enquire
<20556A	LR046751	SEAL - DOOR FRONT AND REAR	LR046751 SEAL - DOOR FRONT AND REAR Standard Wheelbase / RH, Door Upper / From: DA106916 / To: DA121320	-	1	Enquire
<20556A	LR046752	SEAL - DOOR FRONT AND REAR	LR046752 SEAL - DOOR FRONT AND REAR Standard Wheelbase / LH, Door Upper / From: DA106916 / To: DA121749	-	1	Enquire
<20556A	LR051542	SEAL - DOOR FRONT AND REAR	LR051542 SEAL - DOOR FRONT AND REAR Standard Wheelbase / RH, Door Upper / From: DA121321 / To: EA135200	-	1	Enquire
<20556A	LR051544	SEAL - DOOR FRONT AND REAR	LR051544 SEAL - DOOR FRONT AND REAR Standard Wheelbase / LH, Door Upper / From: DA121750 / To: EA134837	-	1	Enquire
<20556A	LR054824	SEAL - DOOR FRONT AND REAR	LR054824 SEAL - DOOR FRONT AND REAR Standard Wheelbase / RH, Door Upper / From: EA135201 / To: GA251187	-	1	Enquire
<20556A	LR054825	SEAL - DOOR FRONT AND REAR	LR054825 SEAL - DOOR FRONT AND REAR Standard Wheelbase / LH, Door Upper / From: EA134838 / To: GA251187	-	1	Enquire
<20556A	LR049239	SEAL - DOOR FRONT AND REAR	LR049239 SEAL - DOOR FRONT AND REAR Long Wheelbase / RH, Door Upper / From: EA147475 / To: GA253134	-	1	Enquire
<20556A	LR049240	SEAL - DOOR FRONT AND REAR	LR049240 SEAL - DOOR FRONT AND REAR Long Wheelbase / LH, Door Upper / From: EA147475 / To: GA253134	-	1	Enquire
<20556A	LR079423	SEAL - DOOR FRONT AND REAR	LR079423 SEAL - DOOR FRONT AND REAR Standard Wheelbase / RH, Door Upper / From: GA251188 / To: GA293919	-	1	Enquire
<20556A	LR079424	SEAL - DOOR FRONT AND REAR	LR079424 SEAL - DOOR FRONT AND REAR Standard Wheelbase / LH, Door Upper / From: GA251188 / To: GA293919	-	1	Enquire
<20556A	LR079443	SEAL - DOOR FRONT AND REAR	LR079443 SEAL - DOOR FRONT AND REAR Long Wheelbase / LH, Door Upper / From: GA253135 / To: GA313338	-	1	Enquire
<20556A	LR079442	SEAL - DOOR FRONT AND REAR	LR079442 SEAL - DOOR FRONT AND REAR Long Wheelbase / RH, Door Upper / From: GA253135 / To: GA313338	-	1	Enquire
<20556A	LR087969	SEAL - DOOR FRONT AND REAR	LR087969 SEAL - DOOR FRONT AND REAR Long Wheelbase / RH, Door Upper / From: GA313339 / To: GA314538	-	1	Enquire
<20556A	LR087971	SEAL - DOOR FRONT AND REAR	LR087971 SEAL - DOOR FRONT AND REAR Long Wheelbase / LH, Door Upper / From: GA313339 / To: GA314538	-	1	Enquire
<20556A	LR088959	SEAL - DOOR FRONT AND REAR	LR088959 SEAL - DOOR FRONT AND REAR Long Wheelbase / RH, Door Upper / From: GA314539 / To: GA999999	-	1	Enquire
<20556A	LR088958	SEAL - DOOR FRONT AND REAR	LR088958 SEAL - DOOR FRONT AND REAR Long Wheelbase / LH, Door Upper / From: GA314539 / To: GA999999	-	1	Enquire
<20556A	LR087968	SEAL - DOOR FRONT AND REAR	LR087968 SEAL - DOOR FRONT AND REAR Standard Wheelbase / RH, Door Upper / From: GA293920 / To: GA299415	-	1	Enquire
<20556A	LR088961	SEAL - DOOR FRONT AND REAR	LR088961 SEAL - DOOR FRONT AND REAR Standard Wheelbase / RH, Door Upper / From: GA299416 / To: GA999999	-	1	Enquire
<20556A	LR087970	SEAL - DOOR FRONT AND REAR	LR087970 SEAL - DOOR FRONT AND REAR Standard Wheelbase / LH, Door Upper / From: GA293920 / To: GA299415	-	1	Enquire
<20556A	LR088960	SEAL - DOOR FRONT AND REAR	LR088960 SEAL - DOOR FRONT AND REAR Standard Wheelbase / LH, Door Upper / From: GA299416 / To: GA999999	-	1	Enquire
<20556A	LR088961	SEAL - DOOR FRONT AND REAR	LR088961 SEAL - DOOR FRONT AND REAR Standard Wheelbase / RH, Door Upper / From: HA000001 / To: JA396332	-	1	Enquire
<20556A	LR088960	SEAL - DOOR FRONT AND REAR	LR088960 SEAL - DOOR FRONT AND REAR Standard Wheelbase / LH, Door Upper / From: HA000001 / To: JA396332	-	1	Enquire
<20556A	LR088959	SEAL - DOOR FRONT AND REAR	LR088959 SEAL - DOOR FRONT AND REAR Long Wheelbase / RH, Door Upper / From: HA000001 / To: JA396332	-	1	Enquire
<20556A	LR088958	SEAL - DOOR FRONT AND REAR	LR088958 SEAL - DOOR FRONT AND REAR Long Wheelbase / LH, Door Upper / From: HA000001 / To: JA396332	-	1	Enquire
<20556A	LR113625	SEAL - DOOR FRONT AND REAR	LR113625 SEAL - DOOR FRONT AND REAR Standard Wheelbase / RH, Door Upper / From: JA396333	-	1	Enquire
<20556A	LR113628	SEAL - DOOR FRONT AND REAR	LR113628 SEAL - DOOR FRONT AND REAR Long Wheelbase / RH, Door Upper / From: JA396333	-	1	Enquire
<20556A	LR113627	SEAL - DOOR FRONT AND REAR	LR113627 SEAL - DOOR FRONT AND REAR Long Wheelbase / LH, Door Upper / From: JA396333	-	1	Enquire
<20556A	LR113626	SEAL - DOOR FRONT AND REAR	LR113626 SEAL - DOOR FRONT AND REAR Standard Wheelbase / LH, Door Upper / From: JA396333	-	1	Enquire
<20556B	LR034116	SEAL - DOOR FRONT AND REAR	LR034116 SEAL - DOOR FRONT AND REAR RH, Door Lower, Wheel Arch / To: DA113448	-	1	Enquire
<20556B	LR034117	SEAL - DOOR FRONT AND REAR	LR034117 SEAL - DOOR FRONT AND REAR LH, Door Lower, Wheel Arch / To: DA113102	-	1	Enquire
<20556B	LR046753	SEAL - DOOR FRONT AND REAR	LR046753 SEAL - DOOR FRONT AND REAR RH, Door Lower, Wheel Arch / From: DA113449 / To: FA208243	-	1	Enquire
<20556B	LR046754	SEAL - DOOR FRONT AND REAR	LR046754 SEAL - DOOR FRONT AND REAR LH, Door Lower, Wheel Arch / From: DA113103 / To: FA208243	-	1	Enquire
<20556B	LR163137	SEAL - DOOR FRONT AND REAR	LR163137 SEAL - DOOR FRONT AND REAR RH, Door Lower, Wheel Arch / From: FA208244 / To: GA267449	-	1	Enquire
<20556B	LR163138	SEAL - DOOR FRONT AND REAR	LR163138 SEAL - DOOR FRONT AND REAR LH, Door Lower, Wheel Arch / From: FA208244 / To: GA267449	-	1	Enquire
<20556B	LR076570	SEAL - DOOR FRONT AND REAR	LR076570 SEAL - DOOR FRONT AND REAR LH, Door Lower, Wheel Arch / From: GA267450 / To: NA462376	-	1	Enquire
<20556B	LR076571	SEAL - DOOR FRONT AND REAR	LR076571 SEAL - DOOR FRONT AND REAR RH, Door Lower, Wheel Arch / From: GA267450 / To: NA462376	-	1	Enquire
<20556B	LR163137	SEAL - DOOR FRONT AND REAR	LR163137 SEAL - DOOR FRONT AND REAR RH, Door Lower, Wheel Arch / From: NA462377	-	1	Enquire
<20556B	LR163138	SEAL - DOOR FRONT AND REAR	LR163138 SEAL - DOOR FRONT AND REAR LH, Door Lower, Wheel Arch / From: NA462377	-	1	Enquire
<20556C	LR034111	SEAL - DOOR FRONT AND REAR	LR034111 SEAL - DOOR FRONT AND REAR Standard Wheelbase / Body / To: EA130456	-	2	Enquire
<20556C	LR048411	SEAL - DOOR FRONT AND REAR	LR048411 SEAL - DOOR FRONT AND REAR Standard Wheelbase / Body / From: EA130457 / To: EA152367	-	2	Enquire
<20556C	LR049241	SEAL - DOOR FRONT AND REAR	LR049241 SEAL - DOOR FRONT AND REAR Long Wheelbase / Body / From: EA152710 / To: EA165292	-	2	Enquire
<20556C	LR058380	SEAL - DOOR FRONT AND REAR	LR058380 SEAL - DOOR FRONT AND REAR Standard Wheelbase / Body / From: EA152368 / To: EA187609	-	2	Enquire
<20556C	LR064892	SEAL - DOOR FRONT AND REAR	LR064892 SEAL - DOOR FRONT AND REAR Long Wheelbase / Body / From: EA165293 / To: EA179731	-	2	Enquire
<20556C	LR067427	SEAL - DOOR FRONT AND REAR	LR067427 SEAL - DOOR FRONT AND REAR Standard Wheelbase / Body / From: EA187610 / To: GA999999	-	2	Enquire
<20556C	LR066622	WEATHERSTRIP - DOOR	LR066622 WEATHERSTRIP - DOOR Long Wheelbase / Body / From: EA179732 / To: GA999999	-	2	Enquire
<20556C	LR067427	SEAL - DOOR FRONT AND REAR	LR067427 SEAL - DOOR FRONT AND REAR Standard Wheelbase / Body / From: HA000001	-	2	Enquire
<20556C	LR066622	WEATHERSTRIP - DOOR	LR066622 WEATHERSTRIP - DOOR Long Wheelbase / Body / From: HA000001	-	2	Enquire
<20982A	LR033672	MOULDING - DOOR WINDOW FRAME	LR033672 MOULDING - DOOR WINDOW FRAME Standard Wheelbase / RH, Door, Inner / To: DA107953	-	1	Enquire
<20982A	LR033673	MOULDING - DOOR WINDOW FRAME	LR033673 MOULDING - DOOR WINDOW FRAME Standard Wheelbase / LH, Door, Inner / To: DA107953	-	1	Enquire
<20982A	LR048597	MOULDING - DOOR WINDOW FRAME	LR048597 MOULDING - DOOR WINDOW FRAME Standard Wheelbase / RH, Door, Inner / From: DA107954 / To: GA999999	-	1	Enquire
<20982A	LR048598	MOULDING - DOOR WINDOW FRAME	LR048598 MOULDING - DOOR WINDOW FRAME Standard Wheelbase / LH, Door, Inner / From: DA107954 / To: GA999999	-	1	Enquire
<20982A	LR049229	MOULDING - DOOR WINDOW FRAME	LR049229 MOULDING - DOOR WINDOW FRAME Long Wheelbase / RH, Door, Inner / From: EA147475 / To: EA172632	-	1	Enquire
<20982A	LR049230	MOULDING - DOOR WINDOW FRAME	LR049230 MOULDING - DOOR WINDOW FRAME Long Wheelbase / LH, Door, Inner / From: EA147475 / To: EA172632	-	1	Enquire
<20982A	LR066259	MOULDING - DOOR WINDOW FRAME	LR066259 MOULDING - DOOR WINDOW FRAME Long Wheelbase / RH, Door, Inner / From: EA172633 / To: GA999999	-	1	Enquire
<20982A	LR066265	MOULDING - DOOR WINDOW FRAME	LR066265 MOULDING - DOOR WINDOW FRAME Long Wheelbase / LH, Door, Inner / From: EA172633 / To: GA999999	-	1	Enquire
<20982A	LR048597	MOULDING - DOOR WINDOW FRAME	LR048597 MOULDING - DOOR WINDOW FRAME Standard Wheelbase / RH, Door, Inner / From: HA000001 / To: HA360642	-	1	Enquire
<20982A	LR048598	MOULDING - DOOR WINDOW FRAME	LR048598 MOULDING - DOOR WINDOW FRAME Standard Wheelbase / LH, Door, Inner / From: HA000001 / To: HA360642	-	1	Enquire
<20982A	LR066259	MOULDING - DOOR WINDOW FRAME	LR066259 MOULDING - DOOR WINDOW FRAME Long Wheelbase / RH, Door, Inner / From: HA000001 / To: HA344416	-	1	Enquire
<20982A	LR066265	MOULDING - DOOR WINDOW FRAME	LR066265 MOULDING - DOOR WINDOW FRAME Long Wheelbase / LH, Door, Inner / From: HA000001 / To: HA344416	-	1	Enquire
<20982A	LR104921	MOULDING - DOOR WINDOW FRAME	LR104921 MOULDING - DOOR WINDOW FRAME Long Wheelbase / RH, Door, Inner / From: HA344417 / To: KA536076	-	1	Enquire
<20982A	LR104922	MOULDING - DOOR WINDOW FRAME	LR104922 MOULDING - DOOR WINDOW FRAME Long Wheelbase / LH, Door, Inner / From: HA344417 / To: KA536076	-	1	Enquire
<20982A	LR104920	MOULDING - DOOR WINDOW FRAME	LR104920 MOULDING - DOOR WINDOW FRAME Standard Wheelbase / LH, Door, Inner / From: HA360643	-	1	Enquire
<20982A	LR104916	MOULDING - DOOR WINDOW FRAME	LR104916 MOULDING - DOOR WINDOW FRAME Standard Wheelbase / RH, Door, Inner / From: HA360643	-	1	Enquire
<20982A	LR125443	MOULDING - DOOR WINDOW FRAME	LR125443 MOULDING - DOOR WINDOW FRAME Long Wheelbase / LH, Door, Inner / From: KA536077 / To: KA565788	-	1	Enquire
<20982A	LR125442	MOULDING - DOOR WINDOW FRAME	LR125442 MOULDING - DOOR WINDOW FRAME Long Wheelbase / RH, Door, Inner / From: KA536077 / To: KA565788	-	1	Enquire
<20982A	LR136804	MOULDING - DOOR WINDOW FRAME	LR136804 MOULDING - DOOR WINDOW FRAME Long Wheelbase / RH, Door, Inner / From: KA565789	-	1	Enquire
<20982A	LR136805	MOULDING - DOOR WINDOW FRAME	LR136805 MOULDING - DOOR WINDOW FRAME Long Wheelbase / LH, Door, Inner / From: KA565789	-	1	Enquire
<20982B	LR049232	MOULDING - DOOR WINDOW FRAME	LR049232 MOULDING - DOOR WINDOW FRAME Long Wheelbase / LH, Door, With Sealer / From: EA154255 / To: GA999999	-	1	Enquire
<20982B	LR049231	MOULDING - DOOR WINDOW FRAME	LR049231 MOULDING - DOOR WINDOW FRAME Long Wheelbase / RH, Door, With Sealer / From: EA154255 / To: GA999999	-	1	Enquire
<20982B	LR049231	MOULDING - DOOR WINDOW FRAME	LR049231 MOULDING - DOOR WINDOW FRAME Long Wheelbase / RH, Door, With Sealer / From: HA000001 / To: HA370479	-	1	Enquire
<20982B	LR049232	MOULDING - DOOR WINDOW FRAME	LR049232 MOULDING - DOOR WINDOW FRAME Long Wheelbase / LH, Door, With Sealer / From: HA000001 / To: HA370479	-	1	Enquire
<20982B	LR105635	MOULDING - DOOR WINDOW FRAME	LR105635 MOULDING - DOOR WINDOW FRAME Long Wheelbase / LH, Door, With Sealer / From: HA370480	-	1	Enquire
<20982B	LR105634	MOULDING - DOOR WINDOW FRAME	LR105634 MOULDING - DOOR WINDOW FRAME Long Wheelbase / RH, Door, With Sealer / From: HA370480	-	1	Enquire
<25324	LR034110	SEAL - DOOR FRONT AND REAR	LR034110 SEAL - DOOR FRONT AND REAR Standard Wheelbase / Door / To: GA999999	-	2	Enquire
<25324	LR049236	SEAL - DOOR FRONT AND REAR	LR049236 SEAL - DOOR FRONT AND REAR Long Wheelbase / Door / From: EA000001 / To: HA335132	-	2	Enquire
<25324	LR034110	SEAL - DOOR FRONT AND REAR	LR034110 SEAL - DOOR FRONT AND REAR Standard Wheelbase / Door / From: HA000001 / To: HA335026	-	2	Enquire
<25324	LR098317	SEAL - DOOR FRONT AND REAR	LR098317 SEAL - DOOR FRONT AND REAR Standard Wheelbase / Door / From: HA335027 / To: MA417053	-	2	Enquire
<25324	LR098312	SEAL - DOOR FRONT AND REAR	LR098312 SEAL - DOOR FRONT AND REAR Long Wheelbase / Door / From: HA335133	-	2	Enquire
<25324	LR147918	SEAL - DOOR FRONT AND REAR	LR147918 SEAL - DOOR FRONT AND REAR Standard Wheelbase / Door / From: MA417054	-	2	Enquire
