Rear Exhaust System (3.0L Aj20D6 Diesel High, Long Wheelbase) ((V) Fromla000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Rear Exhaust System (3.0L AJ20D6 Diesel High, Long Wheelbase) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500440 BOLT $0.99 To Order
Photo Part No Description Price (each) Stock
LR141903 BOLT $2.32 To Order
Photo Part No Description Price (each) Stock
LR090360 INSULATOR - RUBBER $23.23 To Order
Photo Part No Description Price (each) Stock
LR156812 MUFFLER - REAR $1,222.14 To Order
Photo Part No Description Price (each) Stock
LR141782 ACTUATOR - ELECTRONIC EXHAUST VALVE $156.25 IN STOCK
Photo Part No Description Price (each) Stock
LR036441 CLAMP - EXHAUST $29.81 To Order
Photo Part No Description Price (each) Stock
WCL500030 CLAMP - EXHAUST $81.53 To Order
Photo Part No Description Price (each) Stock
LR105222 MUFFLER - REAR $796.99 To Order
Photo Part No Description Price (each) Stock
LR105226 MUFFLER - REAR $796.99 To Order
Photo Part No Description Price (each) Stock
LR125204 BRACKET - REAR MUFFLER $30.11 To Order
Photo Part No Description Price (each) Stock
LR125205 BRACKET - REAR MUFFLER $29.50 To Order
Photo Part No Description Price (each) Stock
LR136419 BRACKET - REAR MUFFLER $44.28 To Order
Photo Part No Description Price (each) Stock
LR136420 BRACKET - REAR MUFFLER $44.28 To Order
View All

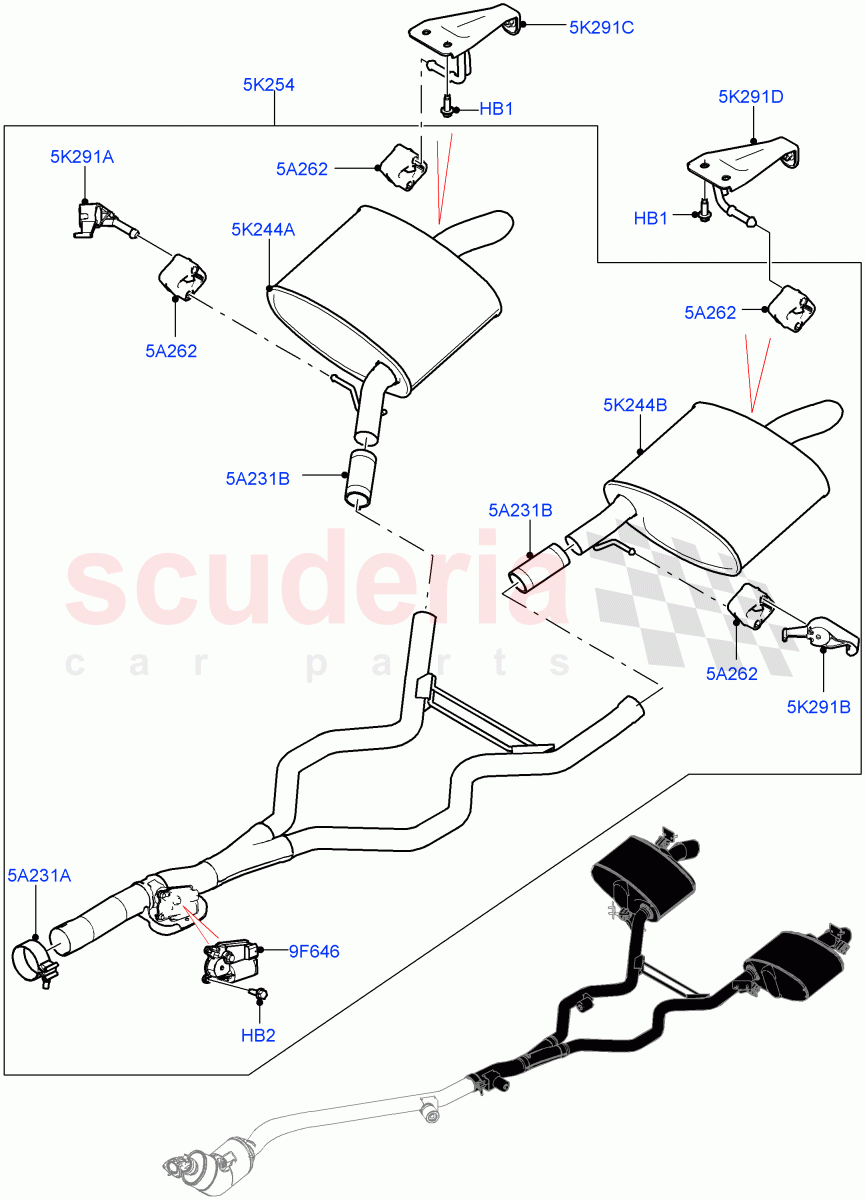

Rear Exhaust System (3.0L AJ20D6 Diesel High, Long Wheelbase) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500440
BOLT
Hexagonal Head, M8 X 20MM / From: LA000001 		$0.99 4
HB2 LR141903
BOLT
Actuator, M6 X 20MM / From: LA000001 		$2.32 3
5A231A LR036441
CLAMP - EXHAUST
70MM, Front / From: LA000001 		$29.81 1
5A231B WCL500030
CLAMP - EXHAUST
55MM, For Rear Muffler / From: LA000001 		$81.53 2
5A262 LR090360
INSULATOR - RUBBER
From: LA000001 		$23.23 4
5K244A LR105222
MUFFLER - REAR
RH / From: LA000001 		$796.99 1
5K244B LR105226
MUFFLER - REAR
LH / From: LA000001 		$796.99 1
5K254 LR156812
MUFFLER - REAR
Complete Assembly / From: LA000001 		$1,222.14 1
5K291A LR125204
BRACKET - REAR MUFFLER
For Rear Muffler, RH Front / From: LA000001 		$30.11 1
5K291B LR125205
BRACKET - REAR MUFFLER
For Rear Muffler, LH Front / From: LA000001 		$29.50 1
5K291C LR136419
BRACKET - REAR MUFFLER
For Rear Muffler, RH Rear / From: LA000001 		$44.28 1
5K291D LR136420
BRACKET - REAR MUFFLER
For Rear Muffler, LH Rear / From: LA000001 		$44.28 1
9F646 LR141782
ACTUATOR - ELECTRONIC EXHAUST VALVE
From: LA000001
IN STOCK 		$156.25 1
