Cooling System Pipes And Hoses (3.0L AJ20D6 Diesel High, With Extra Engine Cooling System) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Cooling System Pipes And Hoses (3.0L AJ20D6 Diesel High, With Extra Engine Cooling System) ((V)...

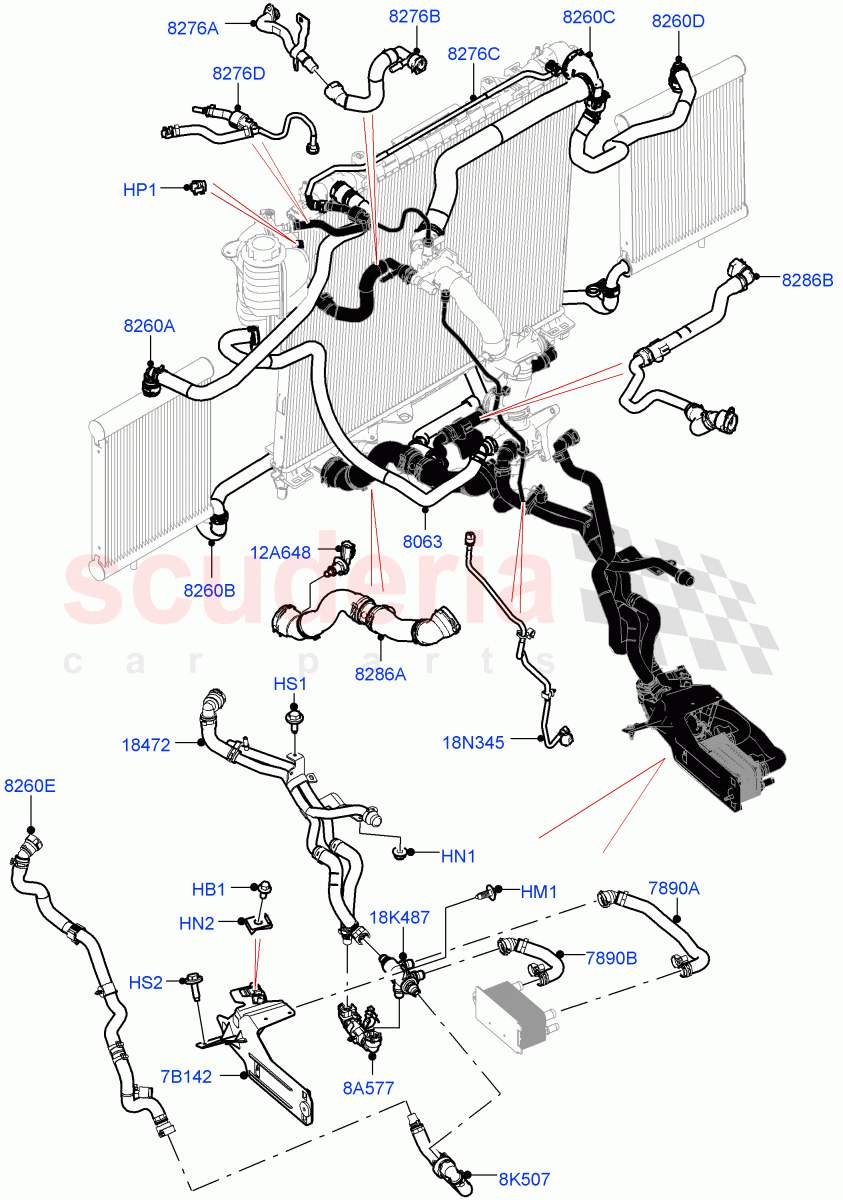

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000385	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYQ100230	RIVET - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYH100790	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011038	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500400	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066438	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123076	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125221	TUBE - HEATER WATER	Enquire	To Order
	LR155133	TUBE - HEATER WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123724	HOSE - OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133678	HOSE - OIL COOLER	Enquire	To Order
	LR144619	HOSE - OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121395	BRACKET	Enquire	To Order
	LR144618	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137012	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135773	HOSE - WATER	Enquire	To Order
	LR146747	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137642	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137643	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125233	HOSE - HEATER WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062105	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137010	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135784	HOSE - RADIATOR TO ENG. VENT ELBOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139417	HOSE - COOLANT BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125237	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125242	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133667	HOSE - COOLING SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123725	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129397	VALVE - COOLANT FLOW CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125224	HOSE - HEATER WATER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR000385	BOLT	LR000385 BOLT Hexagonal Head, M6 x 12MM / From: LA000001	-	3	Enquire
HM1	DYQ100230	RIVET - SPECIAL	DYQ100230 RIVET - SPECIAL From: LA000001	-	2	Enquire
HN1	FX106046	NUT - FLANGED	FX106046 NUT - FLANGED Hexagonal Head, M6 / From: LA000001	-	1	Enquire
HN2	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL M6 X 0.5-4, Nut "U" Spring / From: LA000001	-	3	Enquire
HP1	LR011038	PLUG - BLANKING	LR011038 PLUG - BLANKING Blanking, To Expansion Tank / From: LA000001	-	1	Enquire
HS1	KYP500400	SCREW AND WASHER	KYP500400 SCREW AND WASHER Hexagonal Head, M6 X 16MM / From: LA000001	-	1	Enquire
HS2	LR066438	SCREW	LR066438 SCREW Hexagonal Head, M6 X 20MM / From: LA000001	-	2	Enquire
7B142	LR121395	BRACKET	LR121395 BRACKET Rear / From: LA000001 / To: LA412867	-	1	Enquire
7B142	LR144618	BRACKET	LR144618 BRACKET Rear / From: LA412868	-	1	Enquire
8A577	LR133667	HOSE - COOLING SYSTEM	LR133667 HOSE - COOLING SYSTEM Inlet Pipe, Valve To Low Temperature Radiator / From: LA000001	-	1	Enquire
8K507	LR123725	HOSE	LR123725 HOSE Lower, To Cylinder Head / From: LA000001	-	1	Enquire
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE From: LA000001	-	1	Enquire
18K487	LR129397	VALVE - COOLANT FLOW CONTROL	LR129397 VALVE - COOLANT FLOW CONTROL 5 Way / From: LA000001	-	1	Enquire
18N345	LR125224	HOSE - HEATER WATER	LR125224 HOSE - HEATER WATER Cooling System Bleed / From: LA000001	-	1	Enquire
7890A	LR123724	HOSE - OIL COOLER	LR123724 HOSE - OIL COOLER Outlet pipe / From: LA000001	-	1	Enquire
7890B	LR133678	HOSE - OIL COOLER	LR133678 HOSE - OIL COOLER Inlet Pipe / From: LA000001 / To: LA415106	-	1	Enquire
7890B	LR144619	HOSE - OIL COOLER	LR144619 HOSE - OIL COOLER Inlet Pipe / From: LA415107	-	1	Enquire
8063	LR123076	HOSE - WATER	LR123076 HOSE - WATER From Engine To Expansion Tank / From: LA000001	-	1	Enquire
8260A	LR137012	HOSE - WATER	LR137012 HOSE - WATER Auxiliary Radiator, Left Side / From: LA000001	-	1	Enquire
8260B	LR135773	HOSE - WATER	LR135773 HOSE - WATER Auxiliary Radiator, Bottom / From: LA000001 / To: LA415082	-	1	Enquire
8260B	LR146747	HOSE - WATER	LR146747 HOSE - WATER Auxiliary Radiator, Bottom / From: LA415083	-	1	Enquire
8260C	LR137642	HOSE - RADIATOR	LR137642 HOSE - RADIATOR Front, Top / From: LA000001	-	1	Enquire
8260D	LR137643	HOSE - WATER	LR137643 HOSE - WATER Auxiliary Radiator, Right Side / From: LA000001	-	1	Enquire
8260E	LR125233	HOSE - HEATER WATER	LR125233 HOSE - HEATER WATER Connects To Transmission Fluid Cooler / From: LA000001	-	1	Enquire
8276A	LR062105	HOSE - WATER	LR062105 HOSE - WATER Inlet, Radiator / From: LA000001	-	1	Enquire
8276B	LR137010	HOSE - WATER	LR137010 HOSE - WATER Front, To Thermostat / From: LA000001	-	1	Enquire
8276C	LR135784	HOSE - RADIATOR TO ENG. VENT ELBOW	LR135784 HOSE - RADIATOR TO ENG. VENT ELBOW Radiator To Expansion Tank Bleed / From: LA000001	-	1	Enquire
8276D	LR139417	HOSE - COOLANT BLEED	LR139417 HOSE - COOLANT BLEED To Expansion Tank / From: LA000001	-	1	Enquire
8286A	LR125237	HOSE - RADIATOR	LR125237 HOSE - RADIATOR From Radiator To Engine / From: LA000001	-	1	Enquire
8286B	LR125242	HOSE - RADIATOR	LR125242 HOSE - RADIATOR Front Lower / From: LA000001	-	1	Enquire
18472	LR125221	TUBE - HEATER WATER	LR125221 TUBE - HEATER WATER Hose asy, return, cooler to gear / From: LA000001 / To: MA443795	-	1	Enquire
18472	LR155133	TUBE - HEATER WATER	LR155133 TUBE - HEATER WATER Hose asy, return, cooler to gear / From: MA443796	-	1	Enquire
