Speakers ((V) Toha999999)

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Speakers ((V) TOHA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038544 NUT Enquire To Order
Photo Part No Description Price (each) Stock
RYP500350 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR101428 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR033293 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR033292 SPEAKER Enquire To Order
LR033292 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR047119 SPEAKER Enquire To Order
LR047119 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR035187 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR033290 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR086355 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR001694 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR040605 WIRE - SPEAKER Enquire To Order
LR075652 WIRE - SPEAKER Enquire To Order
View All

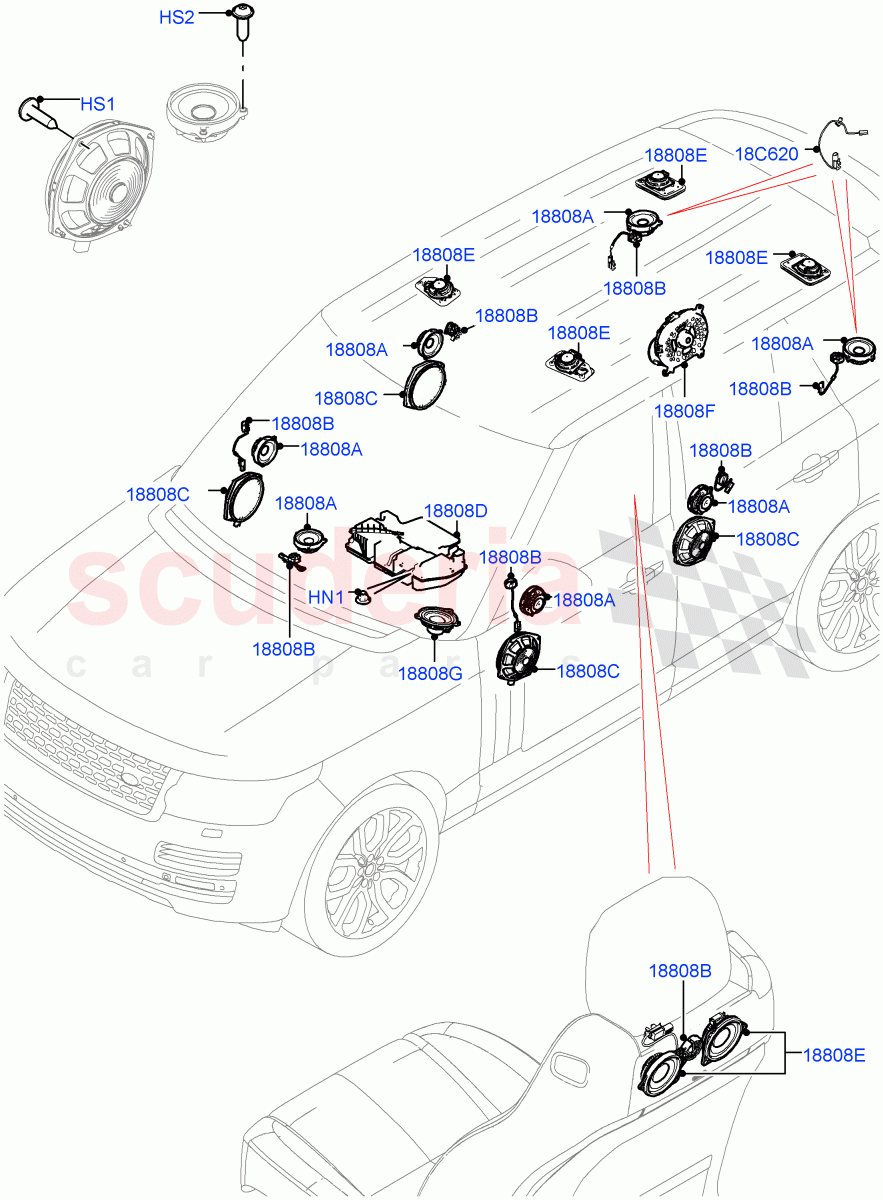

Speakers ((V) TOHA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR038544
NUT
6 X 1.6MM / To: HA999999 		- 4 Enquire
HS1 RYP500350
SCREW
4.8 X 19MM, Torx / To: HA999999 		- 16 Enquire
HS2 LR101428
SCREW
4 X 16MM / To: HA999999 		- 21 Enquire
18C620 LR040605
WIRE - SPEAKER
Standard Wheelbase / To Speaker / To: FA999999 		- 2 Enquire
18C620 LR075652
WIRE - SPEAKER
To Speaker / From: GA000001 / To: HA999999 		- 2 Enquire
18808A LR033293
SPEAKER
100MM, Mid Range / To: HA999999 		- 7 Enquire
18808B LR033292
SPEAKER
Tweeter / To: HA999999 		- 7 Enquire
18808B LR033292
SPEAKER
Front Seats, Tweeter / To: HA999999 		- 2 Enquire
18808C LR047119
SPEAKER
Woofer / To: DA105063 		- 4 Enquire
18808C LR047119
SPEAKER
Front Door, Woofer / From: DA105064 / To: HA999999 		- 2 Enquire
18808D LR035187
SPEAKER
Sub-Woofer / To: HA999999 		- 1 Enquire
18808E LR033290
SPEAKER
80MM, Mid Range / To: HA999999 		- 8 Enquire
18808F LR086355
SPEAKER
Speaker - Subwoofer / From: HA000001 / To: HA999999 		- 1 Enquire
18808G LR001694
SPEAKER
TCU Module - Russia / Fascia Only / From: HA000001 / To: HA999999 		- 1 Enquire
