Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Transmission Cooling Systems (4.4L DOHC DITC V8 Diesel, 8 Speed Auto Trans ZF 8HP70 4WD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
RYG500220 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR049457 O-RING Enquire To Order
LR049457 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR036354 OIL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR128293 BRACKET - OIL HOSES Enquire To Order
Photo Part No Description Price (each) Stock
LR035554 TUBE - OIL COOLER Enquire To Order
LR080116 TUBE - OIL COOLER Enquire To Order
View All

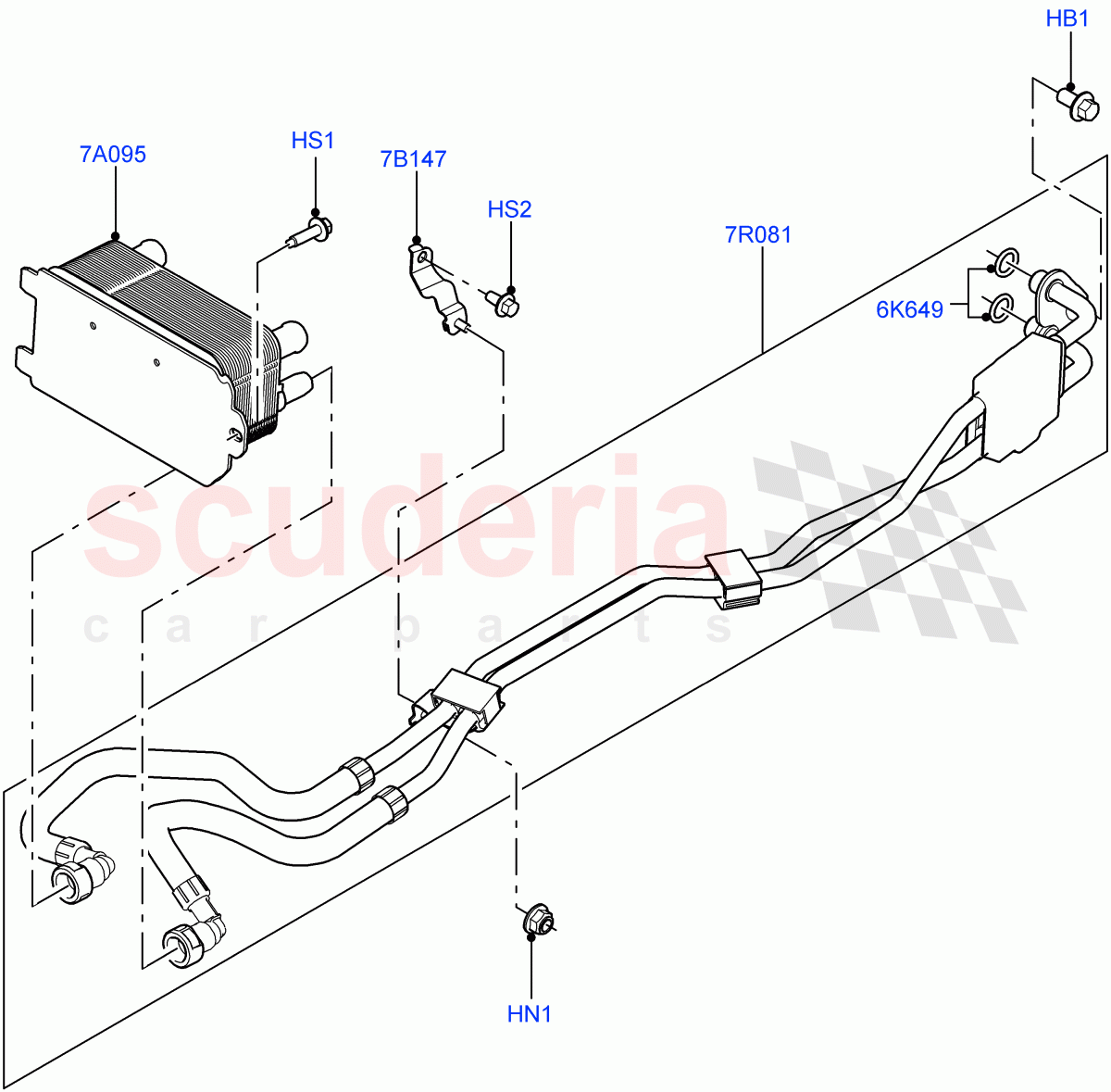

Transmission Cooling Systems (4.4L DOHC DITC V8 Diesel, 8 Speed Auto Trans ZF 8HP70 4WD) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM 		- 1 Enquire
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 		- 1 Enquire
HS1 RYG500220
SCREW
Hexagonal Head, M6 X 20MM 		- 1 Enquire
HS2 FS106166
SCREW
Hexagonal Head, M6 X 16MM 		- 1 Enquire
6K649 LR049457
O-RING
Tube - Transmission Oil Cooler / To: DA115275 		- 2 Enquire
6K649 LR049457
O-RING 		- 2 Enquire
7A095 LR036354
OIL COOLER 		- 1 Enquire
7B147 LR128293
BRACKET - OIL HOSES
To Engine 		- 1 Enquire
7R081 LR035554
TUBE - OIL COOLER
To: GA287218 		- 1 Enquire
7R081 LR080116
TUBE - OIL COOLER
From: GA287219 		- 1 Enquire
