Front Panels, Aprons & Side Members (Reinforcement - Member) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Front Panels, Aprons & Side Members (Reinforcement - Member)

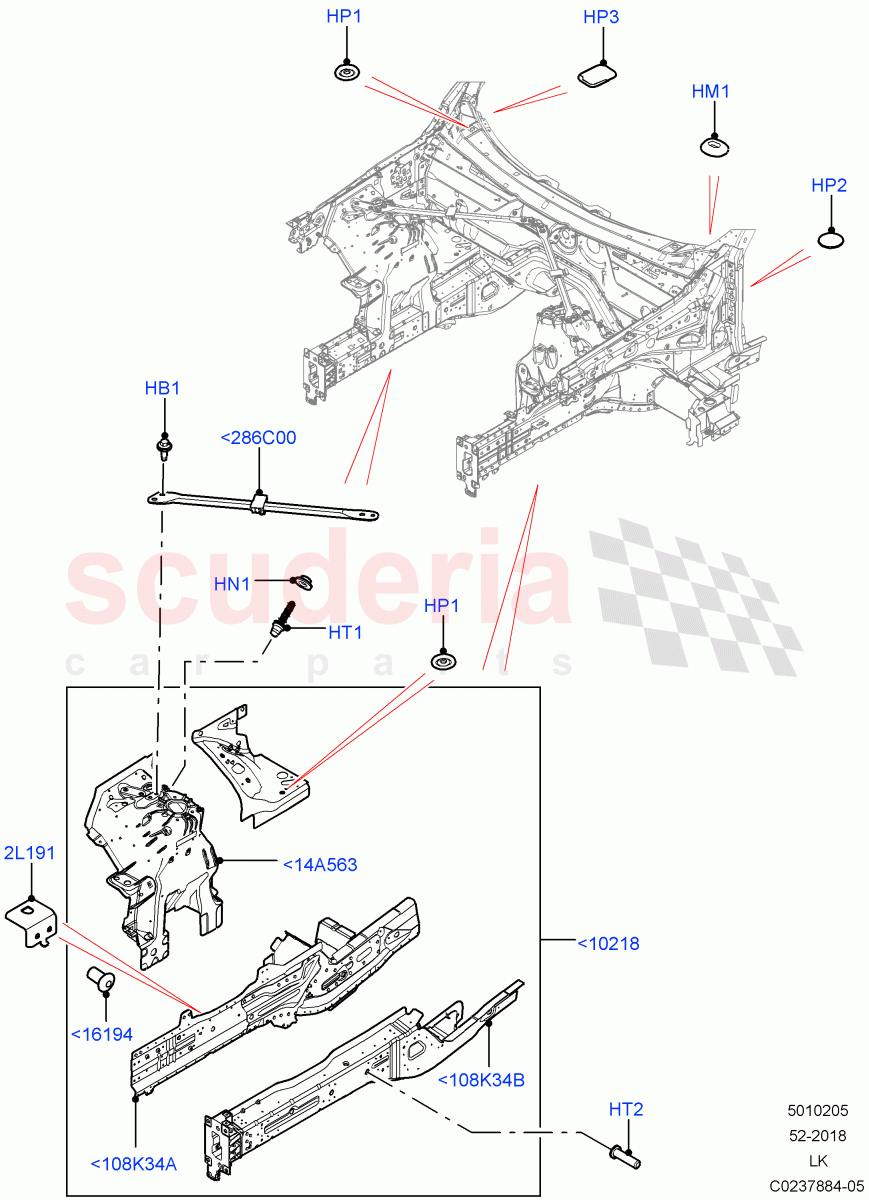

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<14A563	LR036734	HOUSING - FRONT SUSPENSION	LR036734 HOUSING - FRONT SUSPENSION RH, Category A, Front Suspension, Requires VIN To Order, VIN Stamped / To: DA117377	-	1	Enquire
<14A563	LR036735	HOUSING - FRONT SUSPENSION	LR036735 HOUSING - FRONT SUSPENSION LH, Category A, Front Suspension / To: DA117377	-	1	Enquire
<14A563	LR049296	HOUSING - FRONT SUSPENSION	LR049296 HOUSING - FRONT SUSPENSION LH, Category A, Front Suspension / From: DA117378 / To: EA158519	-	1	Enquire
<14A563	LR049295	HOUSING - FRONT SUSPENSION	LR049295 HOUSING - FRONT SUSPENSION RH, Category A, Front Suspension, Requires VIN To Order, VIN Stamped / From: DA117378 / To: GA255065	-	1	Enquire
<14A563	LR057163	HOUSING - FRONT SUSPENSION	LR057163 HOUSING - FRONT SUSPENSION LH, Category A, Front Suspension / From: EA158520 / To: FA214230	-	1	Enquire
<14A563	LR069011	HOUSING - FRONT SUSPENSION	LR069011 HOUSING - FRONT SUSPENSION LH, Category A, Front Suspension / From: FA214231 / To: JA504145	-	1	Enquire
<14A563	LR069009	HOUSING - FRONT SUSPENSION	LR069009 HOUSING - FRONT SUSPENSION RH, Category A, Front Suspension, Requires VIN To Order, VIN Stamped / From: GA255066 / To: JA504145	-	1	Enquire
<14A563	LR117624	HOUSING - FRONT SUSPENSION	LR117624 HOUSING - FRONT SUSPENSION RH, Category A, Front Suspension, Requires VIN To Order, VIN Stamped / From: JA504146	-	1	Enquire
<14A563	LR117623	HOUSING - FRONT SUSPENSION	LR117623 HOUSING - FRONT SUSPENSION LH, Category A, Front Suspension / From: JA504146	-	1	Enquire
<108K34A	LR036732	REINFORCEMENT - MEMBER - SIDE	LR036732 REINFORCEMENT - MEMBER - SIDE RH, Category A, Outer / To: EA999999	-	1	Enquire
<108K34A	LR036733	REINFORCEMENT - MEMBER - SIDE	LR036733 REINFORCEMENT - MEMBER - SIDE LH, Category A, Outer / To: EA999999	-	1	Enquire
<108K34A	LR061803	REINFORCEMENT - MEMBER - SIDE	LR061803 REINFORCEMENT - MEMBER - SIDE RH, Category A, Outer / From: FA000001	-	1	Enquire
<108K34A	LR061804	REINFORCEMENT - MEMBER - SIDE	LR061804 REINFORCEMENT - MEMBER - SIDE LH, Category A, Outer / From: FA000001 / To: HA376438	-	1	Enquire
<108K34A	LR111958	REINFORCEMENT - MEMBER - SIDE	LR111958 REINFORCEMENT - MEMBER - SIDE LH, Category A, Outer / From: HA376439	-	1	Enquire
<108K34B	LR036739	REINFORCEMENT - MEMBER - SIDE	LR036739 REINFORCEMENT - MEMBER - SIDE RH, Category A, Inner / To: EA999999	-	1	Enquire
<108K34B	LR036740	REINFORCEMENT - MEMBER - SIDE	LR036740 REINFORCEMENT - MEMBER - SIDE LH, Category A, Inner / To: EA999999	-	1	Enquire
<108K34B	LR111015	REINFORCEMENT - MEMBER - SIDE	LR111015 REINFORCEMENT - MEMBER - SIDE RH, Category A, Inner / From: FA000001 / To: HA999999	-	1	Enquire
<108K34B	LR061802	REINFORCEMENT - MEMBER - SIDE	LR061802 REINFORCEMENT - MEMBER - SIDE LH, Category A, Inner / From: FA000001 / To: HA999999	-	1	Enquire
<108K34B	LR111016	REINFORCEMENT - MEMBER - SIDE	LR111016 REINFORCEMENT - MEMBER - SIDE LH, Category A, Inner / From: JA000001	-	1	Enquire
<108K34B	LR111015	REINFORCEMENT - MEMBER - SIDE	LR111015 REINFORCEMENT - MEMBER - SIDE RH, Category A, Inner / From: JA000001	-	1	Enquire
<286C00	LR037630	STRUT - SUSPENSION	LR037630 STRUT - SUSPENSION RH, Category B, Front Suspension	-	1	Enquire
<286C00	LR044966	STRUT - SUSPENSION	LR044966 STRUT - SUSPENSION Less Crankcase Pressure Sensor / LH, Category B, Front Suspension	-	1	Enquire
<286C00	LR061810	STRUT - SUSPENSION	LR061810 STRUT - SUSPENSION Crankcase Pressure Sensor / LH, Category B, Front Suspension / From: FA000001 / To: FA999999	-	1	Enquire
<286C00	LR070915	STRUT - SUSPENSION	LR070915 STRUT - SUSPENSION Crankcase Pressure Sensor / LH, Category B, Front Suspension / From: GA000001	-	1	Enquire
<10218	LR036509	MEMBER - SIDE	LR036509 MEMBER - SIDE RH, Category A, Requires VIN To Order / To: EA999999	-	1	Enquire
<10218	LR036510	MEMBER - SIDE	LR036510 MEMBER - SIDE LH, Category A / To: EA999999	-	1	Enquire
<10218	LR061806	MEMBER - SIDE	LR061806 MEMBER - SIDE LH, Category A / From: FA000001 / To: HA999999	-	1	Enquire
<10218	LR061805	MEMBER - SIDE	LR061805 MEMBER - SIDE RH, Category A, Requires VIN To Order, VIN Stamped / From: FA000001 / To: HA999999	-	1	Enquire
<10218	LR111049	MEMBER - SIDE	LR111049 MEMBER - SIDE RH, Category A, Requires VIN To Order, VIN Stamped / From: JA001000	-	1	Enquire
<10218	LR101448	MEMBER - SIDE	LR101448 MEMBER - SIDE LH, Category A / From: JA001000	-	1	Enquire
<10218	LR111045	MEMBER - SIDE	LR111045 MEMBER - SIDE RH, Category A, Requires VIN To Order, VIN Stamped / From: JA000001 / To: JA000999	-	1	Enquire
<10218	LR111046	MEMBER - SIDE	LR111046 MEMBER - SIDE LH, Category A / From: JA000001 / To: JA000999	-	1	Enquire
<16194	LR139079	RIVET	LR139079 RIVET 6.5 X 23.7MM / To: KA999999	-	4	Enquire
<16194	LR139079	RIVET	LR139079 RIVET 6.5 X 2.03 - 9.53 / From: LA000001	-	4	Enquire
HB1	LR037935	BOLT AND WASHER - HEX.HEAD	LR037935 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M10 X 25MM, Strut	-	8	Enquire
HM1	LR000806	PLUG - BODY SEALING	LR000806 PLUG - BODY SEALING 12 X 18MM, Dash Panel	-	2	Enquire
HN1	RYH500310	NUT AND WASHER - HEX.	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, LH Side Only, M6, Nut And Washer / To: GA999999	-	1	Enquire
HN1	LR097986	NUT - HEX. - FLANGED	LR097986 NUT - HEX. - FLANGED M8, spare / From: HA000001	-	1	Enquire
HP1	LR005590	PLUG	LR005590 PLUG 19 x 0.7MM, LH Side Only, Side Member	-	1	Enquire
HP1	LR005590	PLUG	LR005590 PLUG 19 x 0.7MM, Dash Panel	-	2	Enquire
HP2	LR001921	PLUG - SPECIAL	LR001921 PLUG - SPECIAL 40 X 0.7-3, Dash Panel, Plastic	-	6	Enquire
HP3	LR038397	PLUG - BLANKING	LR038397 PLUG - BLANKING Dash Panel	-	2	Enquire
HT1	LR045400	STUD	LR045400 STUD Housing Assy, LH Side Only, M6 x 30MM / To: GA999999	-	1	Enquire
HT1	LR110385	STUD	LR110385 STUD M8 X 22MM, With Weld Nut / From: HA000001	-	1	Enquire
HT2	LR094613	STUD - EARTH	LR094613 STUD - EARTH M6	-	1	Enquire
2L191	LR117032	BRACKET - BRAKE HOSE SUPPORT	LR117032 BRACKET - BRAKE HOSE SUPPORT RH/LH / From: EA000001	-	1	Enquire
