Find Your Part

Balance Shafts And Drive (2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Balance Shafts And Drive (2.0L 16V TIVCT T/C 240PS Petrol)

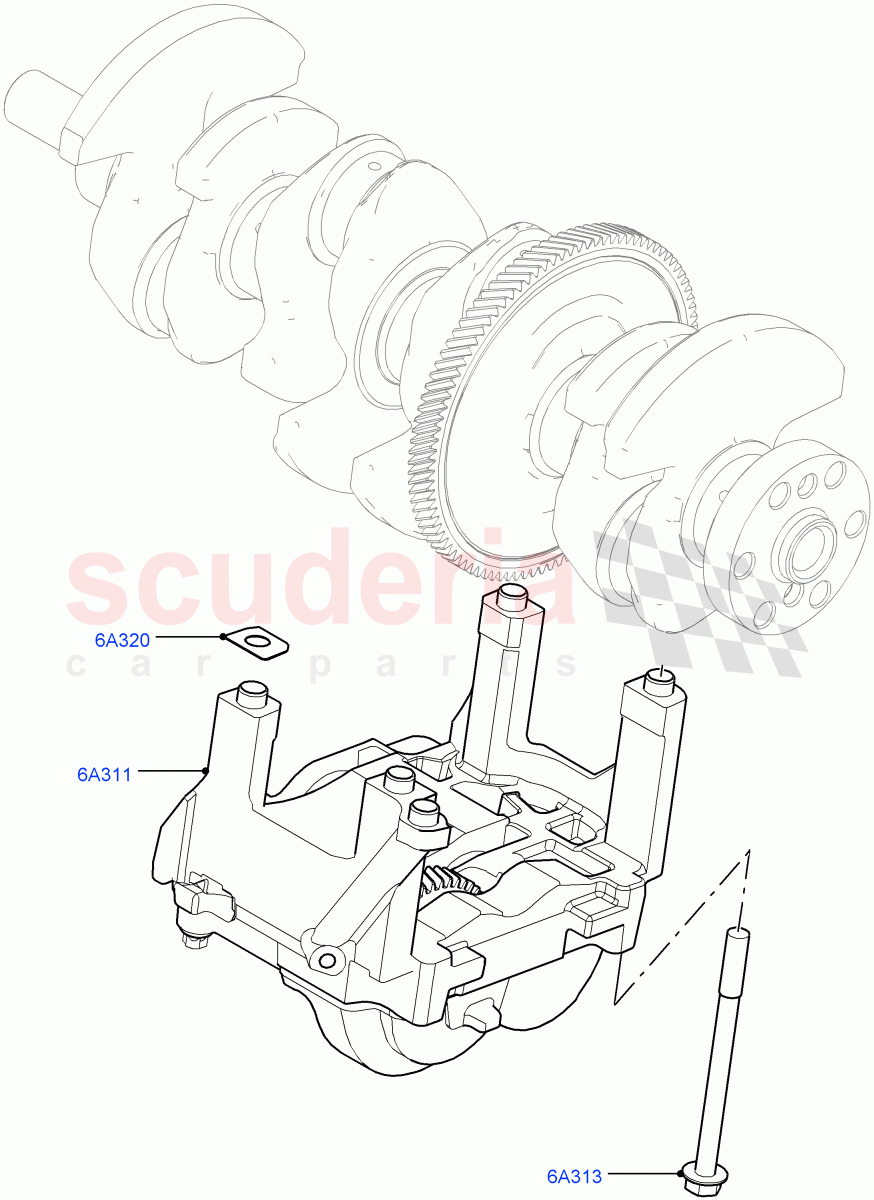

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR024993	BALANCE SHAFT AND HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025683	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025684	SHIM - BALANCE SHAFT	Enquire	To Order
	LR025686	SHIM - BALANCE SHAFT	Enquire	To Order
	LR025687	SHIM - BALANCE SHAFT	Enquire	To Order

...and 37 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
6A311	LR024993	BALANCE SHAFT AND HOUSING	LR024993 BALANCE SHAFT AND HOUSING Balance Shaft And Housing	-	1	Enquire
6A313	LR025683	BOLT	LR025683 BOLT M10 X 1.25 X 120	-	4	Enquire
6A320	LR025684	SHIM - BALANCE SHAFT	LR025684 SHIM - BALANCE SHAFT 1.15MM	-	4	Enquire
6A320	LR025686	SHIM - BALANCE SHAFT	LR025686 SHIM - BALANCE SHAFT 1.16MM	-	4	Enquire
6A320	LR025687	SHIM - BALANCE SHAFT	LR025687 SHIM - BALANCE SHAFT 1.17MM	-	4	Enquire
6A320	LR025688	SHIM - BALANCE SHAFT	LR025688 SHIM - BALANCE SHAFT 1.18MM	-	4	Enquire
6A320	LR025689	SHIM - BALANCE SHAFT	LR025689 SHIM - BALANCE SHAFT 1.19MM	-	4	Enquire
6A320	LR025690	SHIM - BALANCE SHAFT	LR025690 SHIM - BALANCE SHAFT 1.20MM	-	4	Enquire
6A320	LR025691	SHIM - BALANCE SHAFT	LR025691 SHIM - BALANCE SHAFT 1.21MM	-	4	Enquire
6A320	LR025692	SHIM - BALANCE SHAFT	LR025692 SHIM - BALANCE SHAFT 1.22MM	-	4	Enquire
6A320	LR025693	SHIM - BALANCE SHAFT	LR025693 SHIM - BALANCE SHAFT 1.23MM	-	4	Enquire
6A320	LR025694	SHIM - BALANCE SHAFT	LR025694 SHIM - BALANCE SHAFT 1.24MM	-	4	Enquire
6A320	LR025695	SHIM - BALANCE SHAFT	LR025695 SHIM - BALANCE SHAFT 1.25MM	-	4	Enquire
6A320	LR025696	SHIM - BALANCE SHAFT	LR025696 SHIM - BALANCE SHAFT 1.26MM	-	4	Enquire
6A320	LR025697	SHIM - BALANCE SHAFT	LR025697 SHIM - BALANCE SHAFT 1.27MM	-	4	Enquire
6A320	LR025698	SHIM - BALANCE SHAFT	LR025698 SHIM - BALANCE SHAFT 1.28MM	-	4	Enquire
6A320	LR025699	SHIM - BALANCE SHAFT	LR025699 SHIM - BALANCE SHAFT 1.29MM	-	4	Enquire
6A320	LR025700	SHIM - BALANCE SHAFT	LR025700 SHIM - BALANCE SHAFT 1.30MM	-	4	Enquire
6A320	LR025701	SHIM - BALANCE SHAFT	LR025701 SHIM - BALANCE SHAFT 1.31MM	-	4	Enquire
6A320	LR025702	SHIM - BALANCE SHAFT	LR025702 SHIM - BALANCE SHAFT 1.32MM	-	4	Enquire
6A320	LR025703	SHIM - BALANCE SHAFT	LR025703 SHIM - BALANCE SHAFT 1.33MM	-	4	Enquire
6A320	LR025704	SHIM - BALANCE SHAFT	LR025704 SHIM - BALANCE SHAFT 1.34MM	-	4	Enquire
6A320	LR025706	SHIM - BALANCE SHAFT	LR025706 SHIM - BALANCE SHAFT 1.35MM	-	4	Enquire
6A320	LR025705	SHIM - BALANCE SHAFT	LR025705 SHIM - BALANCE SHAFT 1.36MM	-	4	Enquire
6A320	LR025707	SHIM - BALANCE SHAFT	LR025707 SHIM - BALANCE SHAFT 1.37MM	-	4	Enquire
6A320	LR025708	SHIM - BALANCE SHAFT	LR025708 SHIM - BALANCE SHAFT 1.38MM	-	4	Enquire
6A320	LR025709	SHIM - BALANCE SHAFT	LR025709 SHIM - BALANCE SHAFT 1.39MM	-	4	Enquire
6A320	LR025710	SHIM - BALANCE SHAFT	LR025710 SHIM - BALANCE SHAFT 1.40MM	-	4	Enquire
6A320	LR025711	SHIM - BALANCE SHAFT	LR025711 SHIM - BALANCE SHAFT 1.41MM	-	4	Enquire
6A320	LR025712	SHIM - BALANCE SHAFT	LR025712 SHIM - BALANCE SHAFT 1.42MM	-	4	Enquire
6A320	LR025713	SHIM - BALANCE SHAFT	LR025713 SHIM - BALANCE SHAFT 1.43MM	-	4	Enquire
6A320	LR025714	SHIM - BALANCE SHAFT	LR025714 SHIM - BALANCE SHAFT 1.44 MM	-	4	Enquire
6A320	LR025715	SHIM - BALANCE SHAFT	LR025715 SHIM - BALANCE SHAFT 1.45MM	-	4	Enquire
6A320	LR025717	SHIM - BALANCE SHAFT	LR025717 SHIM - BALANCE SHAFT 1.46MM	-	4	Enquire
6A320	LR025718	SHIM - BALANCE SHAFT	LR025718 SHIM - BALANCE SHAFT 1.47MM	-	4	Enquire
6A320	LR025719	SHIM - BALANCE SHAFT	LR025719 SHIM - BALANCE SHAFT 1.48MM	-	4	Enquire
6A320	LR025720	SHIM - BALANCE SHAFT	LR025720 SHIM - BALANCE SHAFT 1.49MM	-	4	Enquire
6A320	LR025721	SHIM - BALANCE SHAFT	LR025721 SHIM - BALANCE SHAFT 1.50MM	-	4	Enquire
6A320	LR025722	SHIM - BALANCE SHAFT	LR025722 SHIM - BALANCE SHAFT 1.51MM	-	4	Enquire
6A320	LR025723	SHIM - BALANCE SHAFT	LR025723 SHIM - BALANCE SHAFT 1.52MM	-	4	Enquire
6A320	LR025724	SHIM - BALANCE SHAFT	LR025724 SHIM - BALANCE SHAFT 1.53MM	-	4	Enquire
6A320	LR025725	SHIM - BALANCE SHAFT	LR025725 SHIM - BALANCE SHAFT 1.54MM	-	4	Enquire
