Oil Pan/Oil Level Indicator (Solihull Plant Build) (2.0L Aj200P Hi Phev, 2.0L I4 High Dohc Aj200...

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Oil Pan/Oil Level Indicator (Solihull Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR074127 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073677 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073635 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR071767 RIVET - PLASTIC Enquire To Order
Photo Part No Description Price (each) Stock
LR085937 PAN - ENGINE OIL Enquire To Order
LR154108 PAN - ENGINE OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR154091 PLUG - OIL DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR100573 TUBE - OIL LEVEL INDICATOR Enquire To Order
LR118346 TUBE - OIL LEVEL INDICATOR Enquire To Order
LR164060 TUBE - OIL LEVEL INDICATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR085474 TRAY - WINDAGE Enquire To Order
LR130052 TRAY - WINDAGE Enquire To Order
Photo Part No Description Price (each) Stock
LR082530 INSULATOR - ENGINE COMPARTMENT Enquire To Order
View All

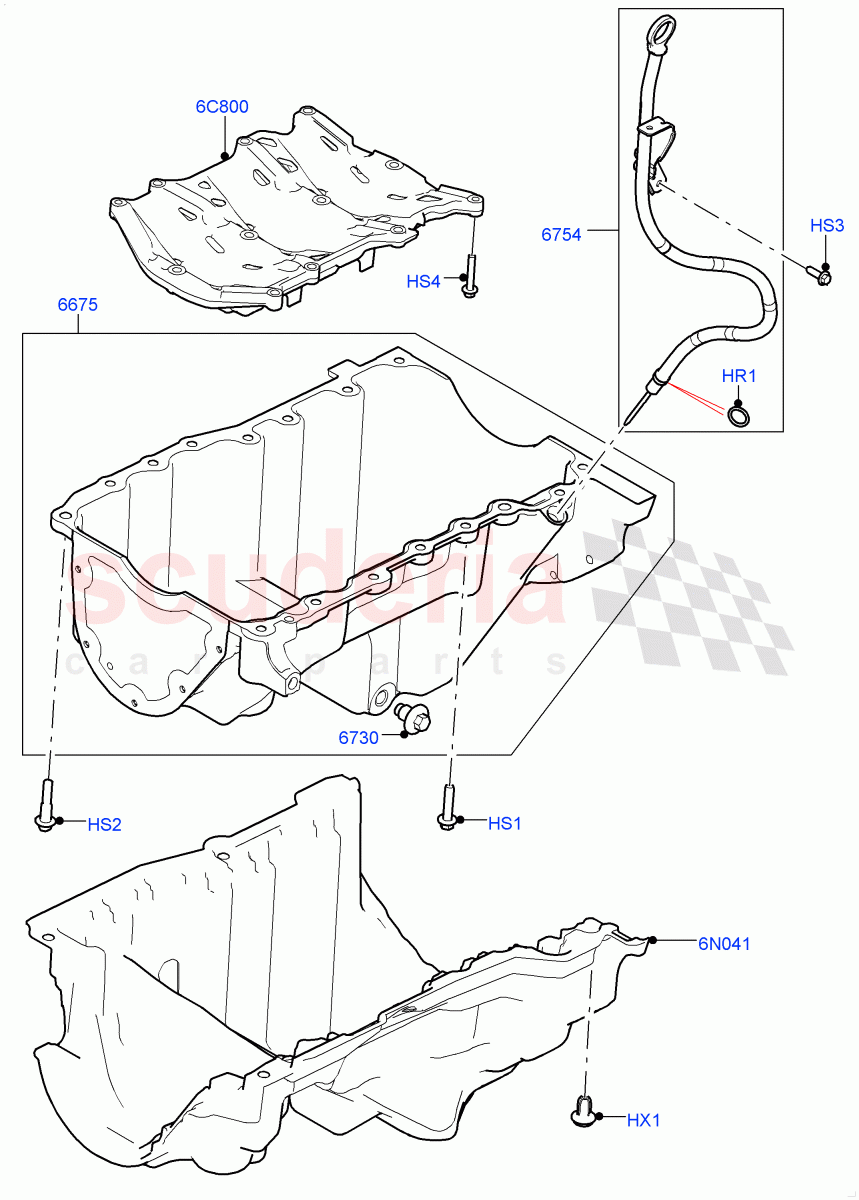

Oil Pan/Oil Level Indicator (Solihull Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR074127
O-RING
11.5 x 2 mm, Tube Indicator / From: JA000001 		- 1 Enquire
HS1 LR073676
SCREW
M8 x 35mm / From: JA000001 		- 14 Enquire
HS2 LR073677
SCREW
M8 x 42mm / From: JA000001 		- 2 Enquire
HS3 LR071774
SCREW
Hexagonal Head, M6 X 20MM, Oil Level Indicator / From: JA000001 		- 1 Enquire
HS4 LR073635
SCREW
M6 x 35MM, Windage Tray / From: JA000001 		- 12 Enquire
HX1 LR071767
RIVET - PLASTIC
7.8-9.1 x 4.5-10.5, Insulator / From: JA000001 		- 4 Enquire
6C800 LR085474
TRAY - WINDAGE
From: JA000001 / To: LA580737 		- 1 Enquire
6C800 LR130052
TRAY - WINDAGE
From: LA580738 		- 1 Enquire
6N041 LR082530
INSULATOR - ENGINE COMPARTMENT
Oil Pan / From: JA000001 		- 1 Enquire
6675 LR085937
PAN - ENGINE OIL
From: JA000001 / To: MA427806 		- 1 Enquire
6675 LR154108
PAN - ENGINE OIL
From: MA427807 		- 1 Enquire
6730 LR154091
PLUG - OIL DRAIN
From: JA000001 		- 1 Enquire
6754 LR100573
TUBE - OIL LEVEL INDICATOR
From: JA000001 / To: JA999999 		- 1 Enquire
6754 LR118346
TUBE - OIL LEVEL INDICATOR
From: KA000001 / To: MA456532 		- 1 Enquire
6754 LR164060
TUBE - OIL LEVEL INDICATOR
From: MA456533 		- 1 Enquire
