Cylinder Head Cover (Solihull Plant Build) (2.0L Aj200P Hi Phev, 2.0L I4 High Dohc Aj200 Petrol)...

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Cylinder Head Cover (Solihull Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

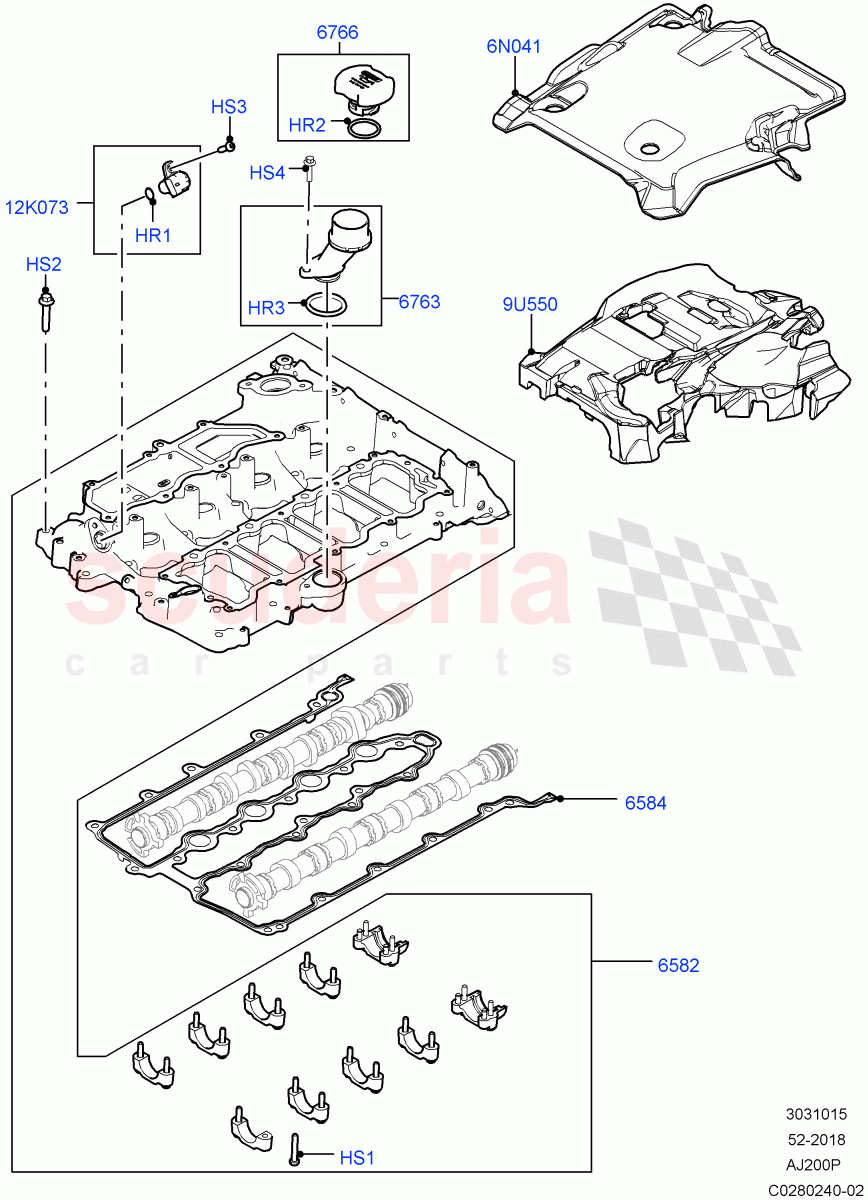

Cylinder Head Cover (Solihull Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR095781
O-RING
17.0MM, Camshaft Position Sensor / From: JA000001 		- 2 Enquire
HR2 LR073781
O-RING
Filler Cap, 		- 1 Enquire
HR3 LR121391
O-RING
FILLER, 		- 1 Enquire
HS1 LR092072
SCREW
M6 x 35MM / From: JA000001 		- 20 Enquire
HS2 LR073649
SCREW
M8 x 40MM / From: JA000001 		- 19 Enquire
HS3 LR073720
SCREW
Camshaft Position Sensor, M6 X 20MM / From: JA000001 		- 2 Enquire
HS4 LR071842
SCREW AND WASHER - HEX HEAD
FILLER, Hexagonal Head, M6 X 25MM / From: JA000001 		- 1 Enquire
6N041 LR100361
INSULATOR - FUEL SUPPLY
Top / From: JA000001 		- 1 Enquire
9U550 LR100359
INSULATOR - FUEL SUPPLY
Camshaft Cover / From: JA000001 / To: KA999999 		- 1 Enquire
9U550 LR141037
INSULATOR - FUEL SUPPLY
Camshaft Cover / From: LA414568 / To: LA499999 		- 1 Enquire
9U550 LR141037
INSULATOR - FUEL SUPPLY
Camshaft Cover / From: MA000001 		- 1 Enquire
9U550 LR100359
INSULATOR - FUEL SUPPLY
Camshaft Cover / From: LA500000 / To: LA599999 		- 1 Enquire
9U550 LR100359
INSULATOR - FUEL SUPPLY
Camshaft Cover / From: LA400000 / To: LA414567 		- 1 Enquire
12K073 LR074065
SENSOR - CAMSHAFT POSITION
Camshaft Position Sensor / From: JA000001 		- 2 Enquire
6582 LR110346
COVER - CYLINDER HEAD
From: JA000001 		- 1 Enquire
6584 LR091765
GASKET - CAMSHAFT COVER
Camshaft Cover / From: JA000001 		- 1 Enquire
6763 LR091797
PIPE - OIL INLET
From: JA000001 		- 1 Enquire
6766 LR091798
CAP - OIL FILLER
From: JA000001 		- 1 Enquire
